Quick Details
-
Max. Turned Length (mm):
-
1500 mm
-
Brand Name:
-
Unique CNC
-
Voltage:
-
220V/380V, 220V/380V
-
Weight (KG):
-
1500
-
Power (kW):
-
5.5 - 7.5
-
Quantity of spindles:
-
One
-
Quantity of tools(cutters):
-
Two
-
How many products can process at a time?:
-
One
-
Turning length:
-
1500/2000/2500mm
-
Max.turning diameter:
-
300mm
-
Total power:
-
5.5KW
-
Color:
-
Customized
-
After Warranty Service:
-
Video technical support
-
Applicable industry:
-
Manufacturing Plant,Construction works ,Building Material Shops
Quick Details
-
Max. Swing Diameter (mm):
-
300 mm
-
Max. Length of Workpiece (mm):
-
1500 mm
-
Place of Origin:
-
Shandong, China
-
Max. Turned Length (mm):
-
1500 mm
-
Brand Name:
-
Unique CNC
-
Voltage:
-
220V/380V, 220V/380V
-
Weight (KG):
-
1500
-
Power (kW):
-
5.5 - 7.5
-
Quantity of spindles:
-
One
-
Quantity of tools(cutters):
-
Two
-
How many products can process at a time?:
-
One
-
Turning length:
-
1500/2000/2500mm
-
Max.turning diameter:
-
300mm
-
Total power:
-
5.5KW
-
Color:
-
Customized
-
After Warranty Service:
-
Video technical support
-
Applicable industry:
-
Manufacturing Plant,Construction works ,Building Material Shops
Large carrying capacity cnc wood lathe machine feeder cnc wood lathe machine wisdom cnc wood lathe
Highlights of Unique CNC Wood Lathes
1). Heavy-duty cast steel structure to avoid body vibrating when the spindle rotate in high speed.
2). Very easy control system, easy to learn and operation.
3). Lubricate system saves the maintenance time.
4). Multi-functions: turning, milling, grooving and engraving.
Specification
|
Item
|
Specifications
|
|
Model No.
|

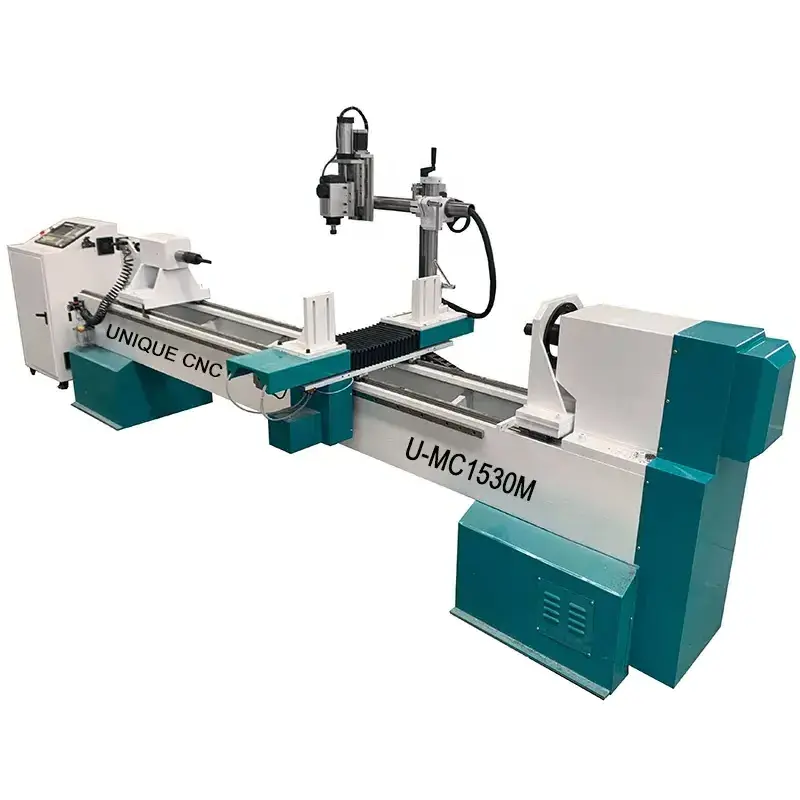

U-MC1530M CNC Wood lathe
|
|
Function
|
Turning, Grooving,Milling,Engraving
|
|
Quantity of Axis
|
Single
|
|
Quantity of cutters
|
Two, one for rough cutting, the other for finishing cutting
|
|
Max.turning diameter
|
300mm (11 4/5 inches)
|
|
Max.processing length
|
1500mm (59 inches) ,
Optional length: 800mm ( 31 1/2 inches), 2000mm (78 7/10 inches)
2500mm (98 2/5 inches)
|
|
Machine dimension
|
3100x1450x1520mm
|
|
Weight
|
1500kg
|
|
Machine voltage
|
380V/220V, 3 phase
|
|
Spindle motor
|
Servo
|
|
Cutters feeding motors
|
Stepper motors and drivers
|
|
Max.feeding rate
|
2000mm/min
|
|
Control system
|
LCD display with USB port
|
|
Compatible files
|
DXF for turning,grooving,milling
G code for engraving
|
|
Transmission
|
Taiwan made linear guide rails, thick ballscrews
|
|
Engraving spindle
|
3.5kw air cooled, 0-18000rpm
|
|
Machine structure
|
Cast steel, heavy duty
|
Details Images
Famous Drivers
Inverters
LCD display controller with handwheel
Thick ballscrews transmit
Cast steel heavy duty structure
Two cutters at two sides
Spindle on all-directions rotate holder
Steadyrest,avoid thin wood vibrating
Air cylinder tailstock
Samples
Turning
Turning + Grooving
Turning+Grooving+Engraving
Unique CNC Wood Lathes are all packed by protective film and international standard plywood case.
Our Advantages
01 Professional Advantage
Nearly 13 years of professional production and export experience. Cooperation with the largest customers from some countries.
02 Quality Assurance
All the products have the cetificate of ISO and CE approval, Guaranteed quality.
03 Fast Delivery
There are a large number of products in stock, so generally we can ship goods in about 3-5 days.
04 Price Advantage
Good quallity, resonable price, on time shipping and best service for each customers.
05 Customized Service
Tailor-made for each customer's requirements.
06 After-Sale Advantages
Long time guarantee period and 24 hours online service.
Our certificate
FAQ
Q Why should we choose you ?
A
If you choose us, you will get top quality, best service, reasonable price and reliable warranty.
Q I'm not familiar with the machine,how to choose?
A
Just tell us materials, thickness and working size, I will recommend the suitable machine.
Q How to operate the machine?
A
We will deliver English manual and video with the machine to you. If you still need our further help, please contact us.
Q Can I get the sample to check quality of machine ?
A
Of course. Please provide your logo or design to us, free samples can be provided for you.
Q Can the machine be customized according my requirements?
A
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q Can you arrange the shipment for us?
A
Of course. We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
