Quick Details
-
Brand Name:
-
Huabang
-
Model Number:
-
HBLUGB
-
Product Name:
-

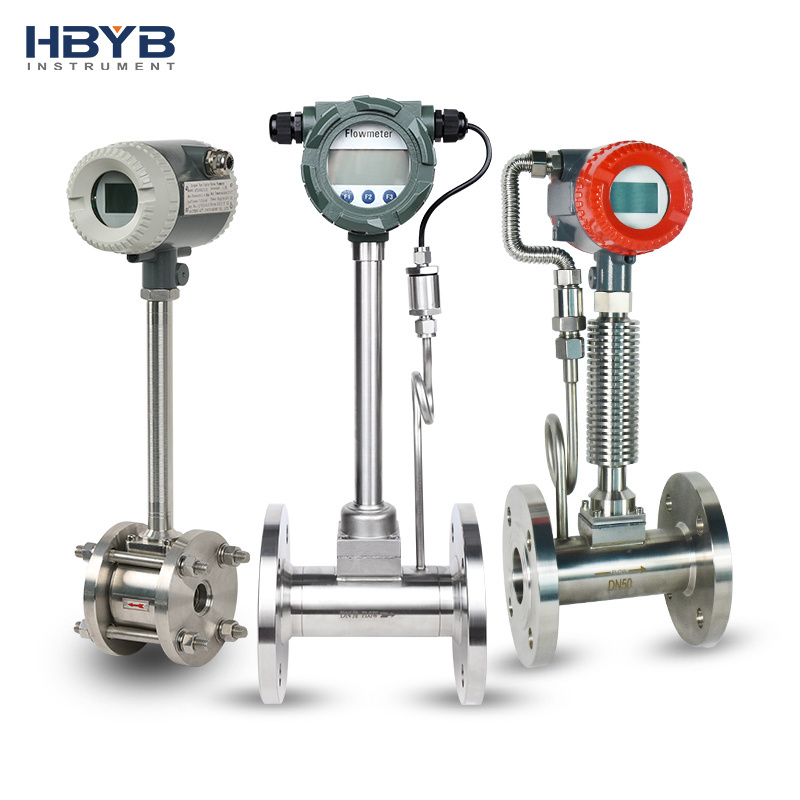

cryogenic ammonia digital steam air natural gas flow meter
-
Nominal pressure:
-
1.6MPa
-
Medium:
-
Gas, liquid, steam, etc.
-
Output:
-
4-20mA
-
Power supply:
-
24VDC
-
Accuracy:
-
1.0%
-
Size:
-
DN15mm~DN300mm
-
Pressure:
-
1.6Mpa
-
Protection Class:
-
IP65
-
Temperature:
-
-40~350℃
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huabang
-
Model Number:
-
HBLUGB
-
Product Name:
-
cryogenic ammonia digital steam air natural gas flow meter
-
Nominal pressure:
-
1.6MPa
-
Medium:
-
Gas, liquid, steam, etc.
-
Output:
-
4-20mA
-
Power supply:
-
24VDC
-
Accuracy:
-
1.0%
-
Size:
-
DN15mm~DN300mm
-
Pressure:
-
1.6Mpa
-
Protection Class:
-
IP65
-
Temperature:
-
-40~350℃
Product Description
Details Images
Product Functions
|
Nominal diameter(mm):
|
15,25,40,50,65,80,100,125,150,200,250,300,(300~1000Plug-in)
|
|
Nominal pressure(MPa):
|
1.6(>1.6 Supply agreement)
|
|
Medium temperature(°C):
|
-40~350℃
|
|
Body material:
|
304SS,(Other material agreement supply)
|
|
Allow vibration acceleration:
|
Piezoelectric:0.2g capacitive:1.0~2.0g
|
|
Accuracy:
|
±1%R,±1.5%R,±1FS;Plug-in:±2.5%R,±2.5%FS
|
|
Range:
|
1:6~1:30
|
|
Supply voltage:
|
Sensor:+12VDC,+24VDC;transmitter:+12VDC,+24VDC;
battery powered type:3.6V battery |
|
Output signal:
|
Square wave pulse (not including battery-powered type):
high level≥5V,low level:≤1V;current:4-20mA |
|
Pressure loss coefficient:
|
StandardsJB/T9249compliant Cd≤2.4
|
|
Explosion-proof mark:
|
Ex ia llCTB6Ga
|
|
Protection level:
|
IP65
|
|
Environmental conditions:
|
Temperature-20℃~55℃,relative humidity5%~90%,
atmospheric pressure86~106kPa |
|
Applicable medium:
|
Gas, liquid, steam, etc.
|
|
Transmission distance:
|
Three-wire pulse output type:≤300m,
two-wire standard current output type(4~20mA): load resistance≤750Ω |
