Quick Details
-
Brand Name:
-
GookiiTech
-
Model Number:
-
GTWTP-120200M
-
Product Name:
-

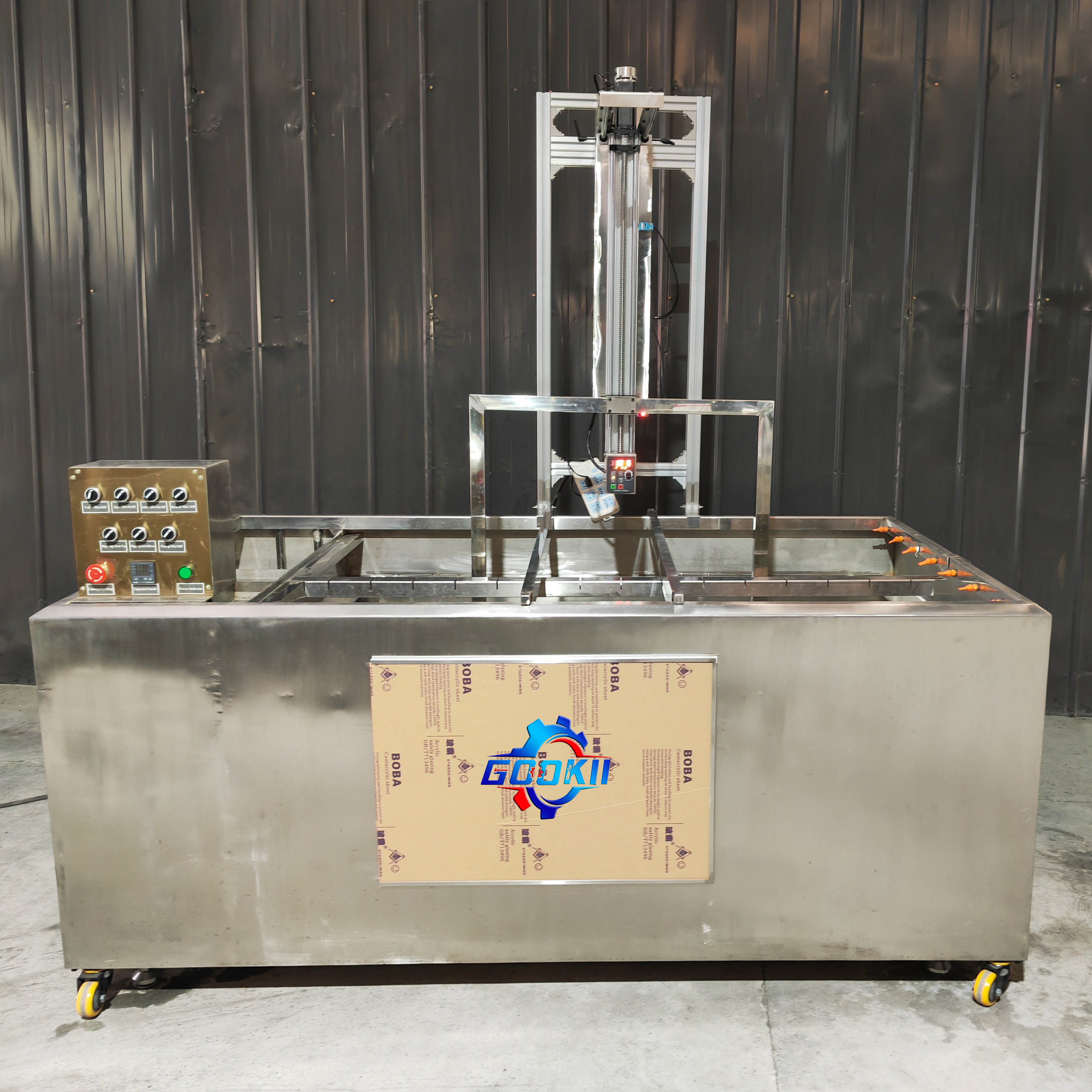

2 Meters Stainless Steel Professional Hydro Dipping Tank
-
Overall Equipment Size/ mm:
-
2050 mm Long x 1200 mm Wide x 1020 mm Tall
-
Overall Equipment Size/ in:
-
80.7 in Long x 47.2 in Wide x 40.2 in Tall
-
Internal Processing Area/ mm:
-
1700 mm Long x 1120 mm Wide x 800 mm Deep
-
Internal Processing Area/ in:
-
66.9 in Long x 44.1 in Wide x 31.5 in Deep
-
Material:
-
Stainless Steel, 2.0 mm Thick
-
Power Configurations:
-
Single Phase 220V, 50 Hz, 4KW
-
Heating System:
-
Heater 1 Set, Single Phase 220V, 50 Hz, 3KW
-
Water Circulation System:
-
Pump 1 Set, Single Phase 220V, 50 Hz, 750W
-
Water Capacity:
-
1550 Liters/ 410 US Gallons
Quick Details
-
Method:
-
Water Transfer Printing
-
Usage:
-
Automotive Industry, Furniture Industry
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GookiiTech
-
Model Number:
-
GTWTP-120200M
-
Product Name:
-
2 Meters Stainless Steel Professional Hydro Dipping Tank
-
Overall Equipment Size/ mm:
-
2050 mm Long x 1200 mm Wide x 1020 mm Tall
-
Overall Equipment Size/ in:
-
80.7 in Long x 47.2 in Wide x 40.2 in Tall
-
Internal Processing Area/ mm:
-
1700 mm Long x 1120 mm Wide x 800 mm Deep
-
Internal Processing Area/ in:
-
66.9 in Long x 44.1 in Wide x 31.5 in Deep
-
Material:
-
Stainless Steel, 2.0 mm Thick
-
Power Configurations:
-
Single Phase 220V, 50 Hz, 4KW
-
Heating System:
-
Heater 1 Set, Single Phase 220V, 50 Hz, 3KW
-
Water Circulation System:
-
Pump 1 Set, Single Phase 220V, 50 Hz, 750W
-
Water Capacity:
-
1550 Liters/ 410 US Gallons
Products Description
|
Overall Equipment Size
|
80.7 in Long x 47.2 in Wide x 40.2 in Tall
|
|
|
|
|
2050 mm Long x 1200 mm Wide x 1020 mm Tall
|
|
|
|
Internal Processing Area
|
66.9 in Long x 44.1 in Wide x 31.5 in Deep
|
|
|
|
|
1700 mm Long x 1120 mm Wide x 800 mm Deep
|
|
|
|
Material
|
Stainless Steel
|
2.0mm Thick
|
|
|
Water Capacity
|
1550 Liters
|
410 US Gallons
|
|
|
Weight of Water
|
1550 Kg
|
3420 Pounds
|
|
|
Power Configurations
|
Single Phase 220V, 50 Hz, 4Kw
|
|
|
|
Heating System
|
Heater 1 Set
|
Single Phase 220V, 50 Hz, 3KW
|
|
|
Water Circulation System
|
Pump 1 Set
|
Single Phase 220V, 50 Hz, 750W
|
|
|
(Weak Current 24V) |
Power Indicator Pump Switch/ Indicator
Water Inlet Switch/ Indicator Drain Valve Switch/ Indicator Bypass Valve Switch/ Indicator Temperature Regulator Emergency Stop Button |
|
|
|
|
|
Water Inlet
Drain Valve Bypass Valve |
|
|
|
Net Weight:
200 Kg
|
Gross Weight:
230 Kg
|
|
|
|
Package Size:
2150 mm Long x 1300 mm Wide x 1200 mm Tall
|
|
|
|
|
Material:
Non-fumigation Plywoodcase
|
|
|
What is hydro dipping?
Hydro dipping, also known as water transfer printing, immersion printing, Hydrographics, watermarbling, water transfer imaging, or cubic printing, is a method of applying printed designs to three-dimensional surfaces. The hydro dipping process can be used on metal, plastic, glass, hard woods, and various other materials.
How to work with your machine?
This water transfer printing machine is a very professional machine, with this machine, you can hydro dipping most of the products with the max size of
1700mm
long.
This machine has complete heating, water circulation and control system. We will provide you full catalog and operational manual.
What is your advantage?
12 year of machinery development and manufacturing. We have a team with product managers and tech advisors.
All products must pass testing and inspection before leaving the factory.
We provide customers with product problems and technical problems encountered in the product use process from beginning to end.
