Quick Details
-
Injection Rate (g/s):
-
89.5 g/s
-
Injection Weight (g):
-
153.8 g
-
Screw diameter (mm):
-
36 mm
-
Distance between Tie Bars:
-
470*280MM
-
Weight (KG):
-
3000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
JY-1200ST-DM
-
Brand Name:
-
JIE YANG
-
Power (kW):
-
7.5 kW
-
Plastic Type:
-
thermoplastic
-
Product name:
-
Iinjection making machine
-
Machine Color:
-
Customized
-
Injection weight:
-
153.8g
-
Screw Diameter:
-
32/36/40mm
-
Injection Rate:
-
89.5cm3/sec
-
Distance Between Tie Bere:
-
470*280mm
-
Power:
-
7.5KW
-
Machine Weight:
-
3.0 Tons
Quick Details
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
539 kN
-
Theoretical Shot Volume(cm³):
-
162.7 cm³
-
Injection Rate (g/s):
-
89.5 g/s
-
Injection Weight (g):
-
153.8 g
-
Screw diameter (mm):
-
36 mm
-
Distance between Tie Bars:
-
470*280MM
-
Weight (KG):
-
3000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
JY-1200ST-DM
-
Brand Name:
-
JIE YANG
-
Power (kW):
-
7.5 kW
-
Plastic Type:
-
thermoplastic
-
Product name:
-
Iinjection making machine
-
Machine Color:
-
Customized
-
Injection weight:
-
153.8g
-
Screw Diameter:
-
32/36/40mm
-
Injection Rate:
-
89.5cm3/sec
-
Distance Between Tie Bere:
-
470*280mm
-
Power:
-
7.5KW
-
Machine Weight:
-
3.0 Tons

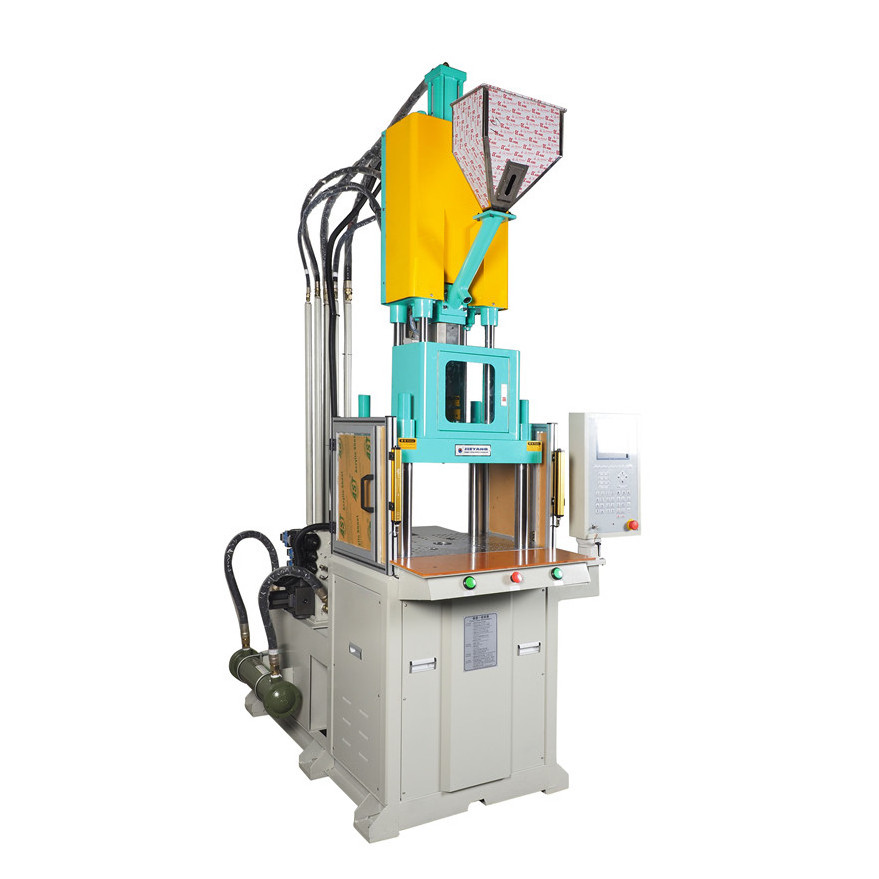

120 ton china new crocs vertical two color injection molding machine
Main Features
1.Chinese/English LCD display,can memorize 60 groups of mold data.
2.Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts.It greatly improves work efficiency and saves labor.
3.It is safe because the product and delivery and inserting is not performed in molding station but the same work position.Moreover,automatic device can be used onto the machine.
4.Adopting double(pressure,flux)proportional control,the machine runs with low noise and at a high speed,It is equipped with low-voltage protective function.
Machine Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
| Machine working video on Youtube | |
| Small cable products plastic injection machine | https://youtu.be/g53gokTvU1w |
| Power cord cable plastic injection machine | https://youtu.be/4ufFj1Bh42E |
| Single sliding table plastic injection machine | https://youtu.be/q9I8FX4ZHi8 |
| Double sliding table plastic injection machine | https://youtu.be/MgUSY_YvUN4 |
| Rotary table plastic injection machine | https://youtu.be/liVuOBQW3uQ |
| Horizontal plastic injection machine | https://youtu.be/IaOT-smkr78 |
| Double slider horizontal plastic injection machine | https://youtu.be/bHlI36cN83A |
|
