Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000*2875*1875mm
-
Weight:
-
3200 KG
Quick Details
-
Type:
-
Paper Cutting Machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JIUXIN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000*2875*1875mm
-
Weight:
-
3200 KG
Products Description

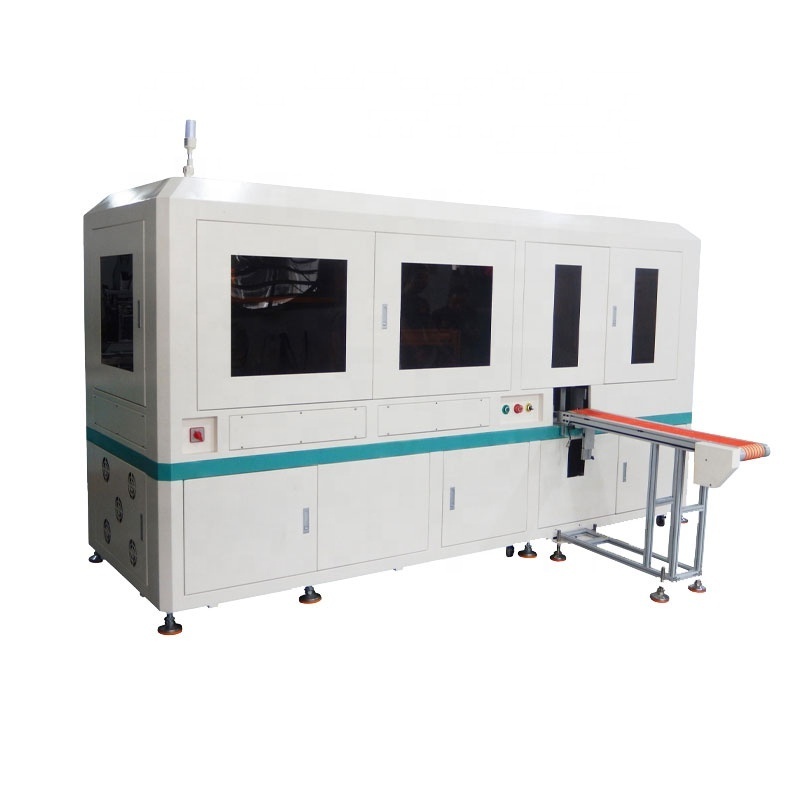

JX-010CKJ Automatic Card Punching Machine
This automatic card punching machine features an automatic sheet feeder coupled with vision system for reliable positioning. Punched cards are created in one step through processes of card forming, corner rounding, hole punching and creasing, and can be automatically collected in an orderly manner. The card punching system is suitable for manufacturing cards of various materials of PVC, ABS, PET, as well as PVC/ABS composite materials.
Product Paramenters
Exhibition
1. Vacuum suction feeder：Coupled with vacuum suction cups and stepper motor, the sheet feeder can implement automatic suction
and feeding process;
2. Automatic alignment unit ： After the sheets are fed to designated position by motor driven conveying belt,vision system
provides automatic alignment and ensures accurate positioning;
3. Servo punching unit ： High torque servo motor is adopted to guarantee stable work pressure and low noise level, the working
speed is adjustable;
4. Punched card collection unit：Specially designed card collecting structure allows punched cards to be automatically collected
in an orderly manner, while the cutting scraps are automatically removed, eliminating the need for secondary sorting;
and feeding process;
2. Automatic alignment unit ： After the sheets are fed to designated position by motor driven conveying belt,vision system
provides automatic alignment and ensures accurate positioning;
3. Servo punching unit ： High torque servo motor is adopted to guarantee stable work pressure and low noise level, the working
speed is adjustable;
4. Punched card collection unit：Specially designed card collecting structure allows punched cards to be automatically collected
in an orderly manner, while the cutting scraps are automatically removed, eliminating the need for secondary sorting;
