Film coated plywood poplar wood circular column formwork

Film coated plywood poplar wood circular column formwork

FOB Reference Price: Get Latest Price

≥500 Sets

US $16

≥1000 Sets

US $12

≥2000 Sets

US $9.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Office Building

Design Style:: Modern

Type:: Plywood Circular Column Formwork

Place of Origin:: Shandong China

Brand Name:: ZEEMO

Model Number:: SLC-2

Product name:: Circular Column Formwork

Material:: Poplar Plywood

Color:: Black , Brown, Red

Size:: Client Requirements

Certificate:: ISO 9001:2001,CE

Accessories:: Strap,Screw,Nuts

Surface:: Glossy

Surface treatment:: Filmface

Feature:: Reuses

Supply Ability:: 200 Set/Sets Per Week

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection

Project Solution Capability:: graphic design, 3D model design, total solution for projects

Application:: Office Building

Design Style:: Modern

Type:: Plywood Circular Column Formwork

Place of Origin:: Shandong China

Brand Name:: ZEEMO

Model Number:: SLC-2

Product name:: Circular Column Formwork

Material:: Poplar Plywood

Color:: Black , Brown, Red

Size:: Client Requirements

Certificate:: ISO 9001:2001,CE

Accessories:: Strap,Screw,Nuts

Surface:: Glossy

Surface treatment:: Filmface

Feature:: Reuses

Supply Ability:: 200 Set/Sets Per Week

Specification

Circular column forms
Inner Range of diameter	Standard height	Thickness	Parts
200-550mm	3000mm	15mm	2
600-1200mm	3000mm	18mm	2
1250-1550mm	3000mm	21mm	2
1600-4200mm	2440mm	21mm	4-10
Note: customized size available

Accessories parameters	Film faced plywood	Core	poplar
				Glue	R
				Film	Brown film
				Hot press	Twice
				Sanding	Both sides
				Edges	With grooves
		Steel strap	Steel no.	Q235
				Width	32mm
				Thickness	1.2mm
		Screws	Item	8.8 grade M12
		Screws		Size	12x80mm

Product Description

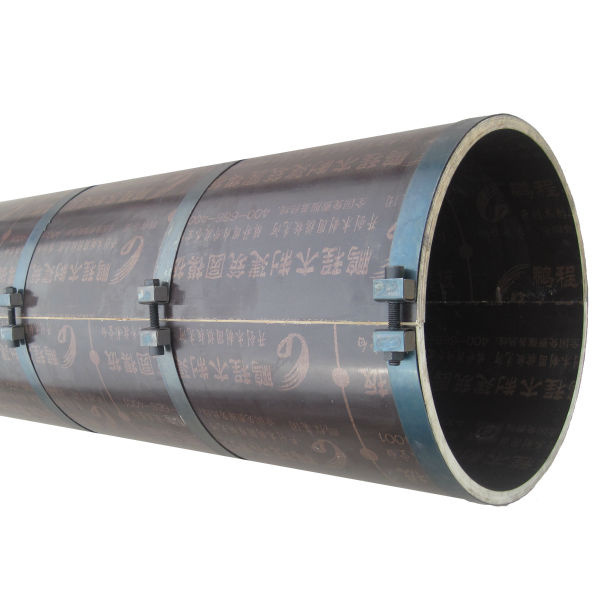

Wooden circular column formwork is a new type of formwork material in the field of construction engineering technology. This formwork is a stereotyped formwork made according to a certain modulus. Using the bending of wood plywood, it is shaped into different radians through high temperature and high pressure to achieve different diameter, so that it is used for the molding of curved buildings to complete the pouring of concrete.

◆ Main Features

Made of plywood, light weight, easy handling， easy cutting.

Tongue Grooves prevent the leakage of concrete

Efficient installation and dismantling. From feedback on site, only 2 skilled workers can install 15 circular columns in 8 hours.

Nice concrete finish without re-work

Details Images

◆ Installation

Treat inner ply film with concrete release agent firstly. Fix the steel belts horizontally according to the lines.
If the height is more than 3000mm , please install it as the indication below.

◆ Dismantling

Simply untie the steel belts and the ply will separate easily

Certifications
