Quick Details
-
Brand Name:
-
SunSoont
-
Use:
-
FTTH FTTx FTTB Network
-
Warranty Time:
-
3 years
-
Product Name:
-
10G media Converter with19'' 1U type including Ethernet
-
Fiber Port:
-
1*10Gbps SFP+ slot
-
Ethernet Port:
-
1*10/100/1000/10000Mbps RJ45 port
-
Power supply:
-
External power supply, input DC5V/2A
-
Back Bandwidth:
-
40G
-
Dimensions:
-
94*71*26mm
-
Housing Material:
-
Metal, Black
-
Transmission Distance:
-
Depend on SFP+ modules
-
Certification:
-
ce
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
SST-MC10G-SFP+
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SunSoont
-
Use:
-
FTTH FTTx FTTB Network
-
Warranty Time:
-
3 years
-
Product Name:
-
10G media Converter with19'' 1U type including Ethernet
-
Fiber Port:
-
1*10Gbps SFP+ slot
-
Ethernet Port:
-
1*10/100/1000/10000Mbps RJ45 port
-
Power supply:
-
External power supply, input DC5V/2A
-
Back Bandwidth:
-
40G
-
Dimensions:
-
94*71*26mm
-
Housing Material:
-
Metal, Black
-
Transmission Distance:
-
Depend on SFP+ modules
-
Certification:
-
ce
Factory CE ROHS 10G media Converter with19'' 1U type including Ethernet and Fast Ethernet
Product Description

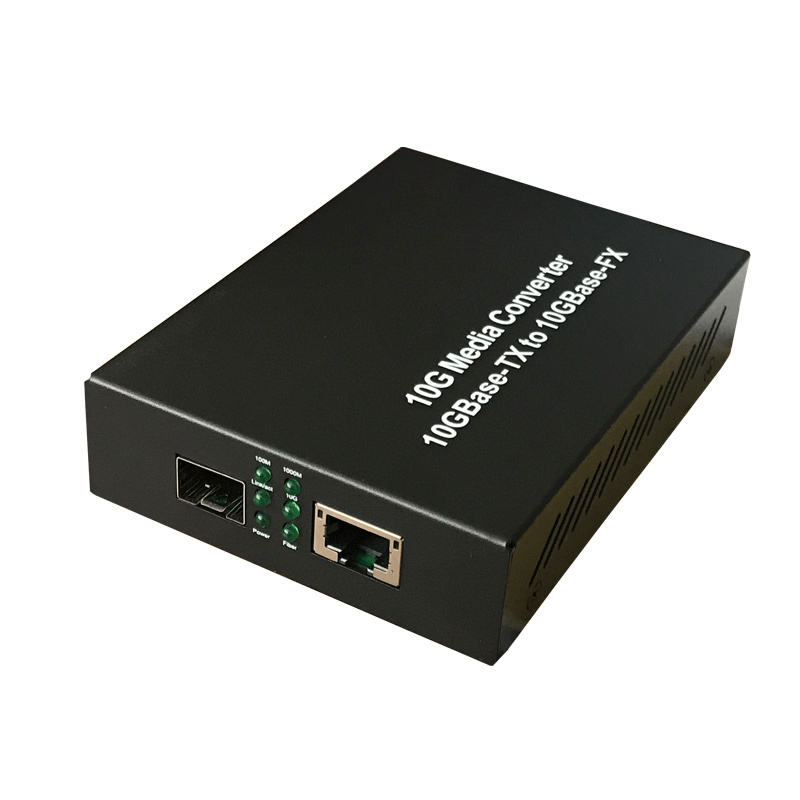

SST-MC10G-SFP+ 10G media converter is a photoelectric converter that converts Ethernet electrical signals and photoelectric signals. 10G transceiver can convert short-distance 10GBase-TX twisted pair electrical signals and long-distance 10GBase-FX optical signals to each other. This converter can be used as standalone unit or as slide-in module to the 19”converter rack Chassis for use at a central wiring closet. Different types of optical modules can be selected as needed, and the seamless connection between the optical signals of the Ethernet and the electrical signals. It not only can extend the transmission distance, but also has many advantages such as good data confidentiality, stable operation and easy maintenance.
Product Features
Adopt high-performance US Marvel chip to achieve non-blocking transmission switching performance and ensure higher security and stability of data transmission;
Support Ethernet port 10Gbase－Tto10Gbase-SR/LR/ER/ZR;
The fiber port supports 3R function (equalization amplification, clock extraction, integer regeneration), and the data transmission jitter is small;
Transparent transmission of data with small delay;
Supports 850, 1310, 1550nm and ITU T specified CWDM/DWDM wavelengths;
Support DMI function of optical module;
Support Loopback and return to functional testing;
Support SFP+/XFP different interface optical modules;
Support 5-20V wide voltage power supply;
Support built-in power supply enclosure;
Support centralized power supply management of racks;
Support external power supply
Specification
|
Product Name
|
10Gbps media converter/transceiver
|
|
|
IEEE802.3, IEEE802.3U, IEEE802.3z,IEEE802.3ab,IEEE802.3an
10Base-T,100Base-T,1000Base-T,,10Gbase-T 10GBase-FX |
|
Electrical Interface
|
Connector : RJ45
|
|
|
Data rate: 10Gbps
|
|
|
Duplex mode : Half / Full duplex
|
|
|
Cable : Cat.6a, 7 or higher
|
|
Optical Interface
|
Connector : Depends on SFP+ module
|
|
|
Data rate : 10Gbps
|
|
|
Duplex mode : Full duplex
|
|
|
Fiber type : SM 9/125μm, MM 50/125μm, 62.5/125μm
|
|
Transmission Distance
|
RJ45 : 100meters with Cat.6a, 7 or higher cable
|
|
|
Fiber : Depends on SFP+ module (up to 120km)
|
|
Maximum Packet Forwarding Rate
|
14,880,950/S
|
|
Work environment
|
Operating Temperature: 0 ~ 50℃
|
|
|
Storage Temperature: -10 ~ 70℃
|
|
|
Humidity: 5%~90% ( non-condensing )
|
|
LED Indicator
|
PWR: Green Illuminated to indicate unit is operating under normal operation
|
|
|
TX Link/ACT: Green Illuminated indicates receiving link pulses from compliant copper
Device and flashes when data being sent / received |
|
|
FX Link/ACT: Green Illuminated indicates receiving link pulses from compliant fiber
Device and flashes when data being sent / received |
|
Physical Characteristics
|
Dimension: 94*71*26mm
Weight: 0.8kg (external) body Color: Metal, Black |
