Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHK-125GF
-
Speed:
-
1500RPM
-
Weight:
-
1100
-
Diesel engine:
-
Powered by Cummins engine 6BTA5.9-G2
-
Alternator:
-
Stamford/Leroy Somer/Hengsheng
-
Controller:
-
DeepSea/ComAp/SmartGen
-
Color:
-
Standard color
-
Fuel Tank:
-
10 hours working time
-
Certificate:
-
ISO9001/CE
-
Generator Type:
-
Soundproof type
-
Warranty Time:
-
1 Year or 1000 horus whichever comes first
-
Optional:
-
ATS,oil heater,engine heater,Seperator etc
-
Product Name:
-
Soundproof canopy 125 kva genset 100 kw diesel generator with ATS
-
Certification:
-
ISO9001
Quick Details
-
Rated Voltage:
-
400/230V
-
Rated Current:
-
180A
-
Frequency:
-
50Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHK-125GF
-
Speed:
-
1500RPM
-
Weight:
-
1100
-
Diesel engine:
-
Powered by Cummins engine 6BTA5.9-G2
-
Alternator:
-
Stamford/Leroy Somer/Hengsheng
-
Controller:
-
DeepSea/ComAp/SmartGen
-
Color:
-
Standard color
-
Fuel Tank:
-
10 hours working time
-
Certificate:
-
ISO9001/CE
-
Generator Type:
-
Soundproof type
-
Warranty Time:
-
1 Year or 1000 horus whichever comes first
-
Optional:
-
ATS,oil heater,engine heater,Seperator etc
-
Product Name:
-

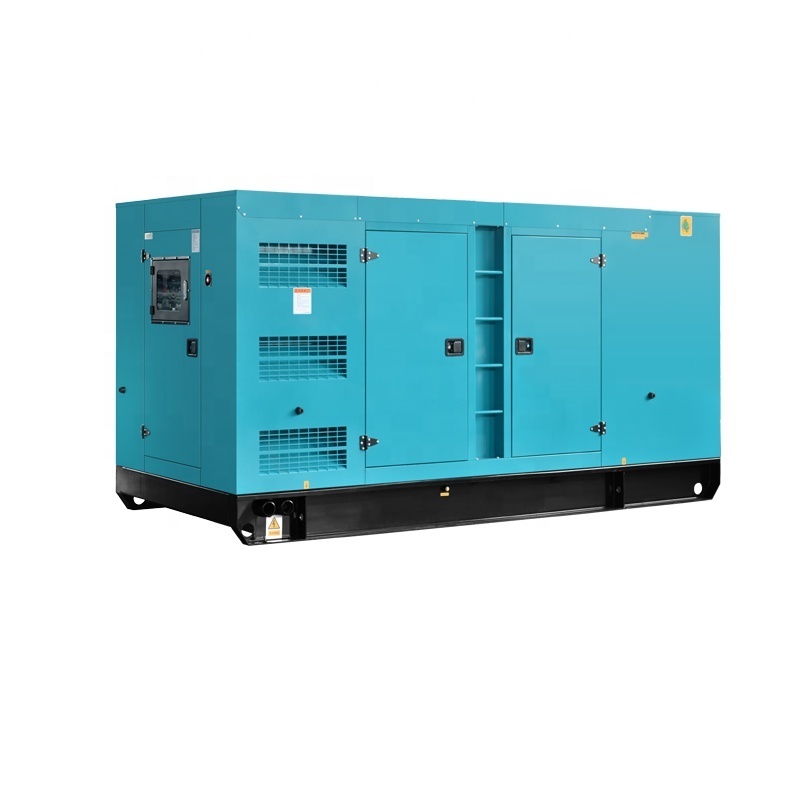

Soundproof canopy 125 kva genset 100 kw diesel generator with ATS
-
Certification:
-
ISO9001
Cummins 6BTA5.9-G2 50HZ/1500rpm
AC 3 phase 125 kva genset 100 kw diesel generator
| Genset | JHK-125GF |
| Voltage | 230V/400V |
| Engine | Cummins 6BTA5.9-G2 |
| Output power | 100 kw / 125 kva |
| Alternator | Leroy somer,Stamford,Marathon, Hengsheng |
| Controller | Deepsea,ComAp, SmartGen |
| Circuit Breaker | ABB/SCHNEIDER |
| Type | Open/Silent |
| Fuel Tank | 12 hours Base Tank,External Daily 8 hours Fuel Tank |
| Optional supporting products | Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Dummy Load Day Tank |
Jianghao Generator Factory Supply Scope
| 1. Engine: | Cummins 6BTA5.9-G2 brand new engine. | |||||||||||
| 2. Alternator: | Brand new brushless alternator, single bearing, IP23, H insulation class. | |||||||||||
| 3. Base Frame: | Heavy duty steel channel base frame. | |||||||||||
| 4. Radiator: | With safety guard. | |||||||||||
| 5. Vibration Damper | Vibration damper between Engine/Alternator and base frame | |||||||||||
| 6. Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option | |||||||||||
| 7. Controller: | DSE6120, DSE7320, DSE8610 and other deepsea models, Comap Inteli Lite-9, SmartGen HGM6110N for option | |||||||||||
| 8. Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. | |||||||||||
| 9. Battery: | Varta Brand,high capacity sealed maintenance free battery c/w battery cables. | |||||||||||
| 10. Fuel Tank: | 8 hours base fuel tank | |||||||||||
| 11. Tool Kits & Manuals: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. | |||||||||||
Generally, we use plywood case package for open type,
Plywood pallet with plastic bubbles package for silent type.
Our factory provide 24 hours overseas after-sales services, with professional engineer team, and Technical team, provide on-site commissioning and installation, testing etc.
In past 10 years, Jianghao factory has provide on-site electricity diagram design, installation, commissioning etc services to over 2000 customers overseas.
