Quick Details
-
Voltage:
-
according to customer local area
-
Dimension(L*W*H):
-
3200*3150*900mm
-
Application:
-
cabinet furniture industry or home
-
Weight (KG):
-
900 KG
-
Max.Cutting Height at 90°(mm):
-
100mm
-
Max.Cutting Height at 45°(mm):
-
100mm
-
Max. Length of Workpiece (mm):
-
3100mm
-
Scoring saw blade speed:
-
7000rpm
-
Main saw blade speed:
-
4000/5000rpm
-
Scoring saw blade diameter:
-
120mm
-
Main Saw blade diameter:
-
350mm
-
Scoring saw motor power:
-
1.1kw
-
Height of cut:
-
100mm
-
Length of cut:
-
3100mm
-
Sliding table size:
-
3200*435mm
-
Main saw motor power:
-
5.5kw
-
Qty/20ft container:
-
6 sets
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Usage:
-
cutting or grooving MDF, chipboards, cabinets etc
-
Voltage:
-
according to customer local area
-
Dimension(L*W*H):
-
3200*3150*900mm
-
Application:
-
cabinet furniture industry or home
-
Weight (KG):
-
900 KG
-
Max.Cutting Height at 90°(mm):
-
100mm
-
Max.Cutting Height at 45°(mm):
-
100mm
-
Max. Length of Workpiece (mm):
-
3100mm
-
Scoring saw blade speed:
-
7000rpm
-
Main saw blade speed:
-
4000/5000rpm
-
Scoring saw blade diameter:
-
120mm
-
Main Saw blade diameter:
-
350mm
-
Scoring saw motor power:
-
1.1kw
-
Height of cut:
-
100mm
-
Length of cut:
-
3100mm
-
Sliding table size:
-
3200*435mm
-
Main saw motor power:
-
5.5kw
-
Qty/20ft container:
-
6 sets

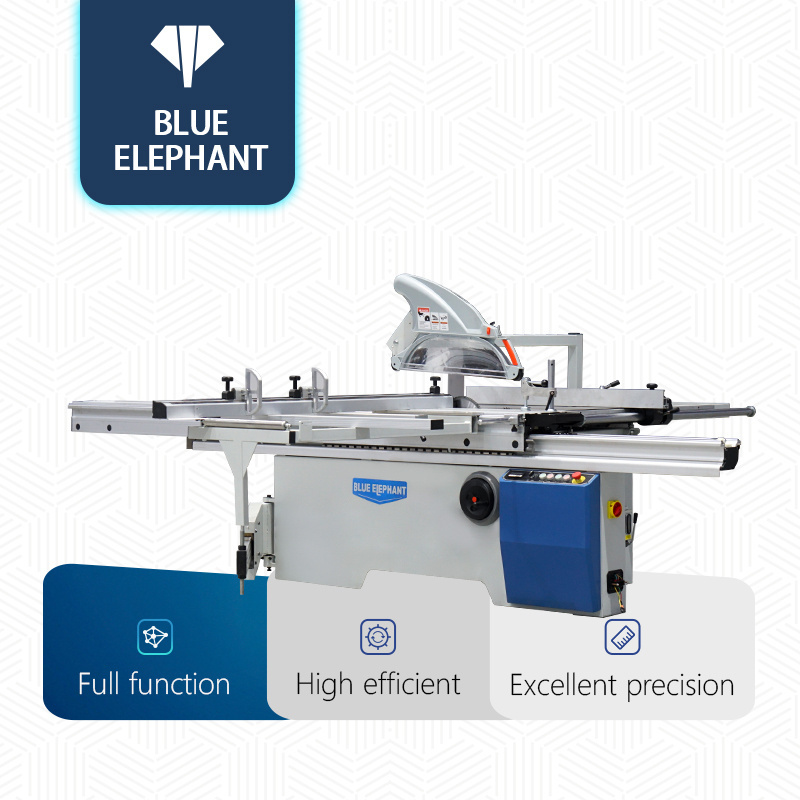

Product Description
1. The whole equipment has the characteristics of stable frame, fine manufacturing, beautiful and durable coating, which ensure that the machine runs stably with low vibration and low noise.
2. The main components, purchased parts and electrical parts are all imported international brands.
3. Push-pull slides are precise, reliable, flexible, durable, easy to maintain, and they have adjustable travel limits.
4. The operation table on the left and right sides of the saw blade has a convenient baffle and a ruler scale line for convenient and efficient cutting.
Technical Parameters
|
Dimensions
|
3200*2540*900mm
|
|
Sliding table size
|
3200*375mm
|
|
Sawtooth length
|
3000mm
|
|
Sawtooth width
|
1200mm
|
|
Sawtooth thickness
|
78mm
|
|
Main saw diameter
|
300mm
|
|
Scribing saw diameter
|
120mm
|
|
Main saw speed
|
4000/6000rpm
|
|
Scribing saw speed
|
7000rpm
|
|
Spindle diameter
|
30mm
|
|
Counter spindle diameter
|
20mm
|
|
Main motor power
|
5.5kw
|
|
Counter motor power
|
0.75kw
|
|
Saw blade angle
|
0-45°
|
|
Net weight
|
700/800kg
|
