Quick Details
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
3600/7200/7500/14640mm, 3600-14640mm
-
Working Temperature:
-
1000-1350
-
Fiber Diameter:
-
2-3um
-
Shrinkage (1800 ℉, 3h):
-
3 (hours)
-
Thermal Conductivity:
-
0.055-0.180(W.k.m.)
-
Model Number:
-
CT 1260
-
Brand Name:
-
Rongsheng
-
Place of Origin:
-
Henan, China
-
Product name:
-
Ceramic Fibre Blanket
-
Size:
-
Customized Size
-
Color:
-
White
-
keyword:
-
ceramic fiber wool
-
Application of ceramic fiber blanket:
-
Thermal Insulation Field
-
Classification Temperature:
-
1100/1300
-
Bulk density:
-
64/80/96/128/160kg/m3
Quick Details
-
Thickness:
-
10-50mm, 10-50mm
-
Width:
-
610/1220mm, 610-1220mm
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
3600/7200/7500/14640mm, 3600-14640mm
-
Working Temperature:
-
1000-1350
-
Fiber Diameter:
-
2-3um
-
Shrinkage (1800 ℉, 3h):
-
3 (hours)
-
Thermal Conductivity:
-
0.055-0.180(W.k.m.)
-
Model Number:
-
CT 1260
-
Brand Name:
-
Rongsheng
-
Place of Origin:
-
Henan, China
-
Product name:
-
Ceramic Fibre Blanket
-
Size:
-
Customized Size
-
Color:
-
White
-
keyword:
-
ceramic fiber wool
-
Application of ceramic fiber blanket:
-
Thermal Insulation Field
-
Classification Temperature:
-
1100/1300
-
Bulk density:
-
64/80/96/128/160kg/m3
Product Description:

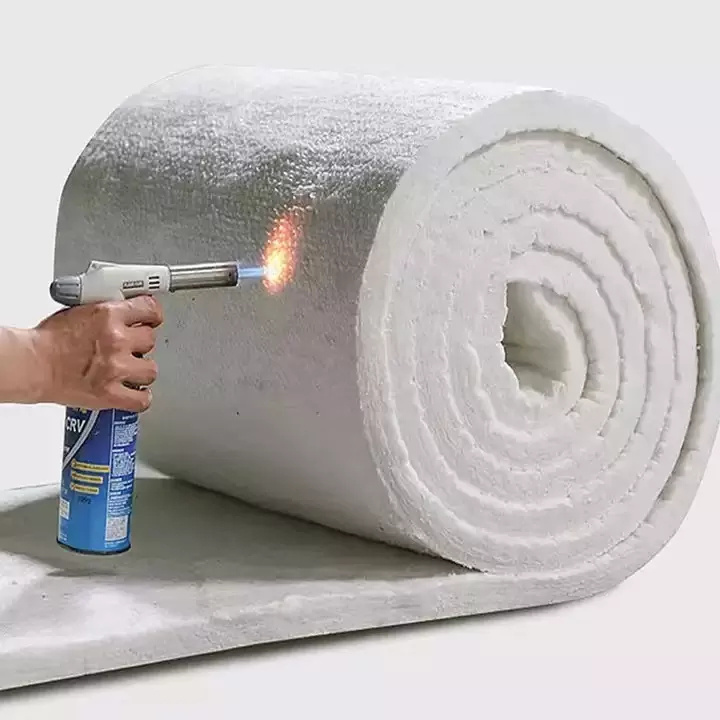

Ceramic Fiber Blanket is composed of long flexible, interwoven fibers manufactured by the “spun” process yielding a strong,lightweight, durable product. This material can be used for applications with temperatures from 1000°F (538°C) to 2600°F (1425°C).The product is firm, light and durable.Thermal and physical properties are retained after drying following wetting by oil, steam or water. This ceramic fiber blanket products are completely inorganic, so there are no fumes when heating for the first time.Rongsheng ceramic fiber blanket has higher tensile strength and longer service life.
Typical Application:
1.Industrial furnace, heating devices, high temperature pipe wall linings,h igh temperature filter materials
2.High tempeture boilers, steam turbine and Nuclear power thermal insulation
3.Chemical industrial high-temperature reaction equipment and heating equipment wall linings
4.High building fireproof and thermal insulation,f urnace door and roof thermal insulation
Production Advantages:
1. Excellent thermal stability,low heat storage,l ow shrinkage,l ow thermal conductivity
2 . Good obstructing voice and mechanism streng
3. Good springiness for fibers,resistance to thermal shock
Technical Data:
| Type | COM | ST | HP | HA | Zir-Alu | HZ | |
| Classified Temp. |
1100℃
(1983℉) |
1260℃
(2300℉) |
1260℃
(2300℉) |
1360℃
(2480℉) |
1400℃
(2550℉) |
1430℃
(2600℉) |
|
| Working Temp. |
<1000℃
(2012℉) |
1050℃
(1922℉) |
1100℃
(2012℉) |
1260℃
(2192℉) |
1260℃
(1192℉) |
1350℃
(2462℉) |
|
| Color | white | white | white | white | white | white | |
| Density(kg/m3) |
260-320
(16-20lb/ft3) |
260-320
(16-20lb/ft3) |
260-320
(16-20lb/ft3) |
260-320
(16-20lb/ft3) |
260-320
(16-20lb/ft3) |
260-320
(16-20lb/ft3) |
|
|
Linear Shrinkage (%)
(24 hrs) |
-3
(1000℃/1832℉) |
-3
(1000℃/1832℉) |
-3
(1100℃/2012℉) |
-3
(1250℃/2282℉) |
-3
(1000℃/2012℉) |
-3
(1350℃/2462℉) |
|
|
Thermal conductivity
(W/M.K) |
0.085
(400℃/752℉) 0.132 (800℃/1472℉) 0.180 (1000℃/2012℉) |
0.085
(400℃/752℉) 0.132 (800℃/1472℉) 0.180 (1000℃/2012℉) |
0.085
(400℃/752℉) 0.132 (800℃/1472℉) 0.180 (1000℃/2012℉) |
0.085
(400℃/752℉) 0.132 (800℃/1472℉) 0.180 (1000℃/2012℉) |
0.085
(400℃/752℉) 0.132 (800℃/1472℉) 0.180 (1000℃/2012℉) |
0.085
(400℃/752℉) 0.132 (800℃/1472℉) 0.180 (1000℃/2012℉) |
|
|
Compression Strength
(Mpa) |
0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
|
Chemical (%) |
Al2O3 | 44 | 46 | 47-49 | 52-55 | 45-46 | 39-40 |
| Al2O3+SiO2 | 96 | 97 | 99 | 99 | - | - | |
|
Al2O3+SiO2 +ZrO2 |
- | - | - | - | 99 | ||
| ZrO2 | - | - | - | - | .5-7 | 15-17 | |
| Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Size(mm) |
1200*1000mm(47″*40″); 1000*600mm(40″*36″);900*600mm(24″*36″)
20-50mm(1″/2″)thickness |
||||||
|
Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201
|
||||
|
260 blanket
|
64 kg/m3
|
96 kg/m3
|
128 kg/m3
|
160kg/m3
|
|
mean 400°C
|
0.13
|
0.12
|
0.07
|
0.09
|
|
mean 600 °C
|
0.21
|
0.17
|
0.12
|
0.14
|
|
mean 800°C
|
0.30
|
0.25
|
0.16
|
0.20
|
|
1400 blanket
|
128 kg/m3
|
160kg/m3
|
||
|
mean 600 °C
|
0.13
|
0.14
|
||
|
mean 800 °C
|
0.20
|
0.20
|
||
|
mean1000 °C
|
0.29
|
0.28
|
||
