Quick Details
-
Tent:
-
Arabian 3x3 4x4 5x5 10x10 Outdoor Canvas Hexagon Gazebo Pagoda Tent
-
Fabric Coating:
-
PVDF
-
Frame:
-
Aluminum
-
Fabric:
-
PVC
-
Ground Situation:
-
grassland, earth land, asphalt, cement ground, marble, etc.
-
Roof Fixing:
-
bar tensioning
-
Wind Resistance:
-
100 km/h
-
Temperature Resistance:
-
-30 degree Celsius ~ +70 degree Celsius
-
Certificate:
-
ISO 9001/IFAI/TUV
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WT Tent
-
Model Number:
-
PG
-
Tent:
-
Arabian 3x3 4x4 5x5 10x10 Outdoor Canvas Hexagon Gazebo Pagoda Tent
-
Fabric Coating:
-
PVDF
-
Frame:
-
Aluminum
-
Fabric:
-
PVC
-
Ground Situation:
-
grassland, earth land, asphalt, cement ground, marble, etc.
-
Roof Fixing:
-
bar tensioning
-
Wind Resistance:
-
100 km/h
-
Temperature Resistance:
-
-30 degree Celsius ~ +70 degree Celsius
-
Certificate:
-
ISO 9001/IFAI/TUV
| Item | Width(m) | Eave Height(m) | Ridge Height(m) | Main Profile(mm) |
| PAG | 3.0 | 2.5 | 4.30 | 65x65x2.50 |
| PAG | 4.0 | 2.5 | 4.80 | 65x65x2.50 |
| PAG | 5.0 | 2.5 | 5.43 | 65x65x2.50 |
| PAG | 6.0 | 4.0 | 5.92 | 65x65x2.50 |
| PAG | 8.0 | 4.0 | 5.36 | 122x68x3.0 |
| PAG | 10.0 | 4.0 | 6.38 | 122x68x3.0 |

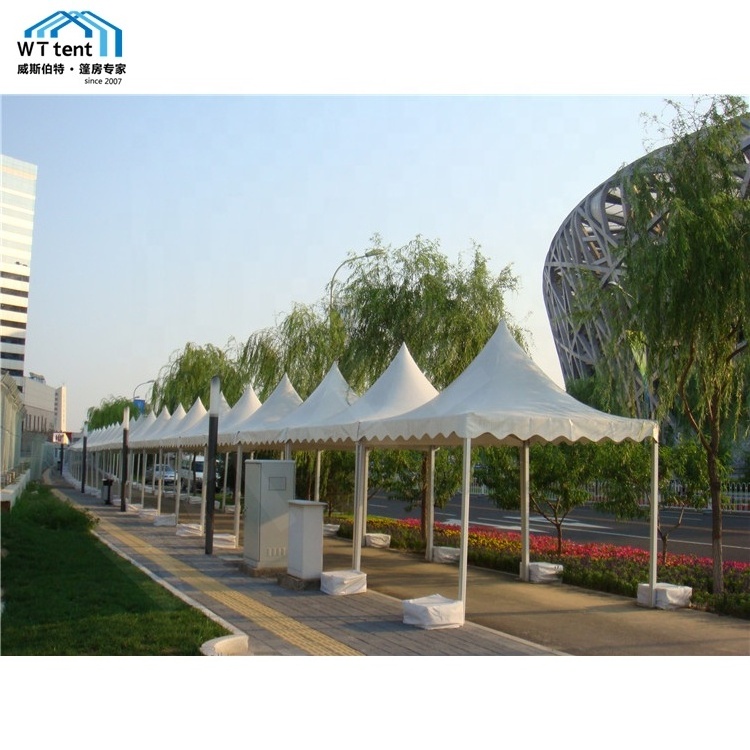

Pagoda tent can be used as a single unit or combined by a rain gutter to make a larger space or a special structure style. Customized size or shape is available.
| Main Profiles | Available Sections: 65×65×2.5mm,122×68×3mm,166x88x3mm |
| Material: Hard pressed extruded aluminum alloy T6061/T6 | |
| Features: Stainless | |
| Cover and Side walls | Density: 850g/sqm double coated blockout white PVC for roof |
| 650g/sqm translucent white PVC for side walls | |
| Material: PVC coated polyester fabric | |
| Features: Water proof,UV resistant,fire retardant(DIN4 102,B1,M2) | |
| Components | Superior enclosure with hot dip galvanized steel |
Q: Can you print our logos on tent?
Yes.Customized logos can be print on the tent fabric according to your requirements.
Q: How long does it takes for production
Our normal production time is 5-10 days of the normal size,printing needs more 5days, If the actual tent will use more sandwich walls or glass walls, The customization time for these accessories materials takes 10-15 days.
Q : Does your company accept customized Pagoda Tent?
Yes,we can made the pagoda tent according to customers different needs.
Q:Does your company provide any help to install the Pagoda?
Yes,usually we will send manual guide books or Video to help customer installation,If customer need our engineer come to their country to help install,that is also workable.
Q: What documents are available?
A full range documents including structural drawings,packing list,installation manual and relative certificates can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.
