- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JAXY
-
Model Number:
-
WTB04b
-
Magnification:
-
20x, 20x
-
Type:
-
Coin Operated Binoculars
-
Color:
-
Silver
-
Weight:
-
55 Kg
-
Objective diameter:
-
100
-
Type of Prism:
-
Bak4 roof prism
-
Type of coating:
-
Fully multi-coated optics
-
Lens diameter:
-
100mm
-
Feature:
-
Multi-function
-
Exit pupil:
-
5MM
Quick Details
-
Warranty:
-
1 year
-
Certification:
-
other
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JAXY
-
Model Number:
-
WTB04b
-
Magnification:
-
20x, 20x
-
Type:
-
Coin Operated Binoculars
-
Color:
-
Silver
-
Weight:
-
55 Kg
-
Objective diameter:
-
100
-
Type of Prism:
-
Bak4 roof prism
-
Type of coating:
-
Fully multi-coated optics
-
Lens diameter:
-
100mm
-
Feature:
-
Multi-function
-
Exit pupil:
-
5MM
May you like
Product Description

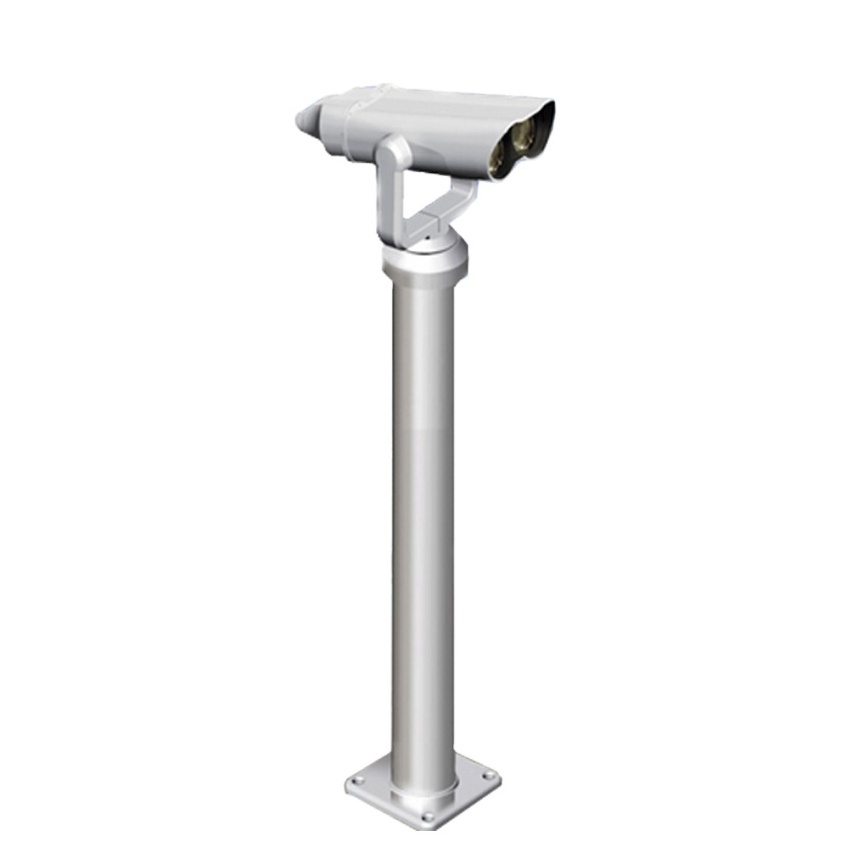

coin operate telescope
Top end Prism glass, BaK4 High clear view
coin operated,coin control binoculars
The viewing telescope of 10 power and 100mm
Fully waterproof /outdoor
Magnification:20X
Field of view:3 dgrees
Objective aperture:100mm
Exit pupil diameter:5mm
Eye Relief:21.5mm
Resoulution:below 2.4
Weight:36KGS
Search swivel angle:300 degrees
Surveying angle:45 degrees
Elevation:65 degrees
Binocular Size:1526*300*600mm
Prism Material :K9
Optical Coating :Broadband or Normal
Body material:ADC12 aluminum alloy
Top end Prism glass, BaK4 High clear view
coin operated,coin control binoculars
The viewing telescope of 10 power and 100mm
Fully waterproof /outdoor
Magnification:20X
Field of view:3 dgrees
Objective aperture:100mm
Exit pupil diameter:5mm
Eye Relief:21.5mm
Resoulution:below 2.4
Weight:36KGS
Search swivel angle:300 degrees
Surveying angle:45 degrees
Elevation:65 degrees
Binocular Size:1526*300*600mm
Prism Material :K9
Optical Coating :Broadband or Normal
Body material:ADC12 aluminum alloy
|
- Model
|
WTB 04 Coin Telescope
|
- Azimuth rang
|
0~ 300°
|
|
- Magnification
|
20x
|
- The elevation angle
|
up 65 °,down 45 °
|
|
- Objective lens aperture
|
100 mm
|
- Interpupillary range
|
58~72mm
|
|
- Exit pupil Diameter
|
5 mm
|
- Overall size(the binoculars)
|
550(L)x 250(W)x240(H)mm
|
|
- Eye Relief Distance
|
21.5 mm
|
- Height of complete product
|
1.5m
|
|
- Field of view
|
3°
|
- Weight of complete product
|
42kg
|
|
- Lens Resolution
|
2.4″
|
- Environmental Temperature
|
-20°C~+70°C
|
|
- Type of coating
|
Fully multi-coated optics
|
- Waterproof
|
Q/KYD01-2010
|
|
- Type of prism
|
Bak4 roof prism
|
|
|
|
- Focus system
|
Eyepiece lens
|
|
|
