Quick Details
-
Input Voltage(V):
-
AC85~277V(50/60Hz)
-
CRI (Ra>):
-
70
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOSINN
-
Product Name:
-

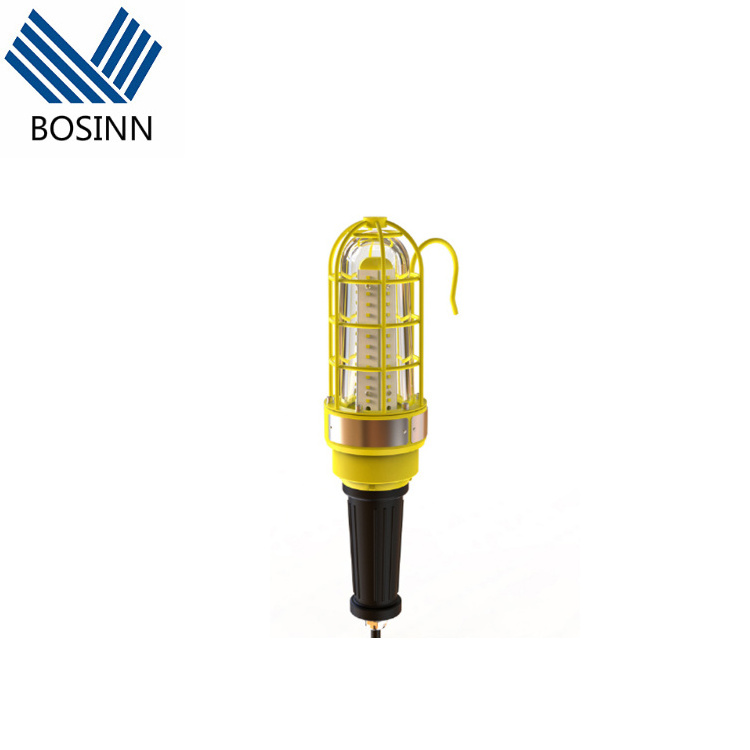

Portable LED Explosion Proof Lights Antiexplosion Industrial Lighting
-
Rated power:
-
40W/60W etc.
-
Color Temperature:
-
2700-6500K
-
Application:
-
Explosive Chemical Materials Place
-
Material:
-
Explosion Proof Aluminum Housing
-
IP Grade:
-
IP66
-
Installation:
-
Ceiling Mounted /Tube Hanging/Hook-style Lifting/Wall Mounted
Quick Details
-
Warranty(Year):
-
5-Year
-
Working Temperature(℃):
-
-20 - 60
-
Light Source:
-
LED
-
Input Voltage(V):
-
AC85~277V(50/60Hz)
-
CRI (Ra>):
-
70
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOSINN
-
Product Name:
-
Portable LED Explosion Proof Lights Antiexplosion Industrial Lighting
-
Rated power:
-
40W/60W etc.
-
Color Temperature:
-
2700-6500K
-
Application:
-
Explosive Chemical Materials Place
-
Material:
-
Explosion Proof Aluminum Housing
-
IP Grade:
-
IP66
-
Installation:
-
Ceiling Mounted /Tube Hanging/Hook-style Lifting/Wall Mounted
Portable
Led Explosion Proof Lights for Hazardous Petroleum Exploitation Surface Mounted Anti-Corrosion Tri-proof Working Lights Industry Tube Ceiling Lamps
|
Model No. |
LH028-W50 |
LH028-W60 |
LH028-W100 |
LH028-W150 |
LH028-W200 |
LH028-W300 |
|
Power |
50W |
60W |
100W |
150W |
200W |
300W |
|
Product Size |
300*124*43mm |
640*124*43mm |
1200*124*43mm |
1200*124*43mm |
1500*124*43mm |
1500*124*43mm |
|
LED Chip |
SMD3030 |
SMD3030 |
SMD3030 |
SMD3030 |
SMD3030 |
SMD3030 |
|
Input Voltage |
AC85-265V |
AC85-265V |
AC85-265V |
AC85-265V |
AC85-265V |
AC85-265V |
|
Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
PF |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
|
LED Qty |
72pcs |
120pcs |
216pcs |
240pcs |
336pcs |
480pcs |
|
Efficiency |
130lm/w |
130lm/w |
130lm/w |
130lm/w |
130lm/w |
130lm/w |
|
CCT |
5800-6100K(CW), 4000-4200K(NW), 3000-3150K(WW) |
|||||
|
CRI |
Ra>80 |
|||||
|
Application |
railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and each efficient lighting in factory, workshop, warehouse, station, large facility, venue and other places. |
|||||
|
Operation Ambient Temperature |
-20-65 ℃ |
|||||
|
IP Grade |
IP65 |
|||||
|
LED Lifespan |
50,000Hours |
|||||
|
Beam Angle |
60°,90°,120° |
|||||
• Available from 10W (≥5,500lm ) to 240W ( ≥26,400lm )
• Offered with 3 mounting options: U-bracket, wall mount,Top loading
• Type II, III, IV, V and Forward Throw distributions
• 1-10V Dimming, available
• Motion sensor, photocell and Controller options available
• 50,000+Hours LED lifespan
•
ATEX Ex mark: • II 2G Ex db op is IIC TS ... T6 Gb;
• II 2D Ex tb op is IIIC T94°C. .. T89°C...T84°C Db;
•
IECEx Ex mark: • Ex db op is IIC T6 Gb;
• Ex tb op is I IIC T85 Db;
• IP66;
Specifications
Environment
:
Suitable for wet locations Operating temperature: -40°C to +60°C (-40°F to 132°F).
LED:
Long-life, high-efficiency, micro-power, surface mount LEDs.
Driver:
Class 2, 50/60Hz. 100 - 277V, 4kV standard, 6kV optional surge protection.
Lifespan: 50,000+hour LED lifespan based on IES LM-80 results & TM-21 calculations at 25°C.
IP Rating: Ingress Protection rating of NEMA 4/4X (IP66) for dust and water.
Housing: Die-cast aluminum housing.
Mounting: U-Bracket, slipfitter or wall mount options available.
Lens: High transmittance tempered glass.
Effective Projected Area: EPA = 0.61.
Vibration Rating:
3G vibration tested per ANSI C136.31
Dimming Driver:
Driver includes dimming control wiring for 1-10V dimming systems. Requires separate 1-10V DC dimming circuit. Dims as low as 10%.(Optional
dimming and non-dimming).
CCT: Available in 2700K ~ 6500K color temperature.
CRI: Minimum CRI of ≥70.
Beam angle:
Standard distribution is NEMA high/low bay
lights (Type6).
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-years period.
Color Uniformity: LCD-CES's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Finish: Formulated for high durability and long-lasting color.
Green Technology: Mercury and UV free. RoHS-compliant components.
IESNA LM-79 Testing:
LCD LED luminaires have been tested by an independent laboratory in accordance with IESNALM-79.
