Quick Details
-
Brand Name:
-
RuiLong
-
Advantage:
-
Long Service Life
-
Usage:
-
Prevent mud fluid from flowing back to the rotating head.
-
Color:
-
Regular black, can be customized.
-
Certification:
-
ISO 9001
-
Thread:
-
API or Customer's Requirement
-
MOQ:
-
1pcs
Quick Details
-
Weight (KG):
-
15
-
Marketing Type:
-
Customized product
-
Place of Origin:
-
ShanDong,China
-
Brand Name:
-
RuiLong
-
Advantage:
-
Long Service Life
-
Usage:
-
Prevent mud fluid from flowing back to the rotating head.
-
Color:
-
Regular black, can be customized.
-
Certification:
-
ISO 9001
-
Thread:
-
API or Customer's Requirement
-
MOQ:
-
1pcs
Product Description

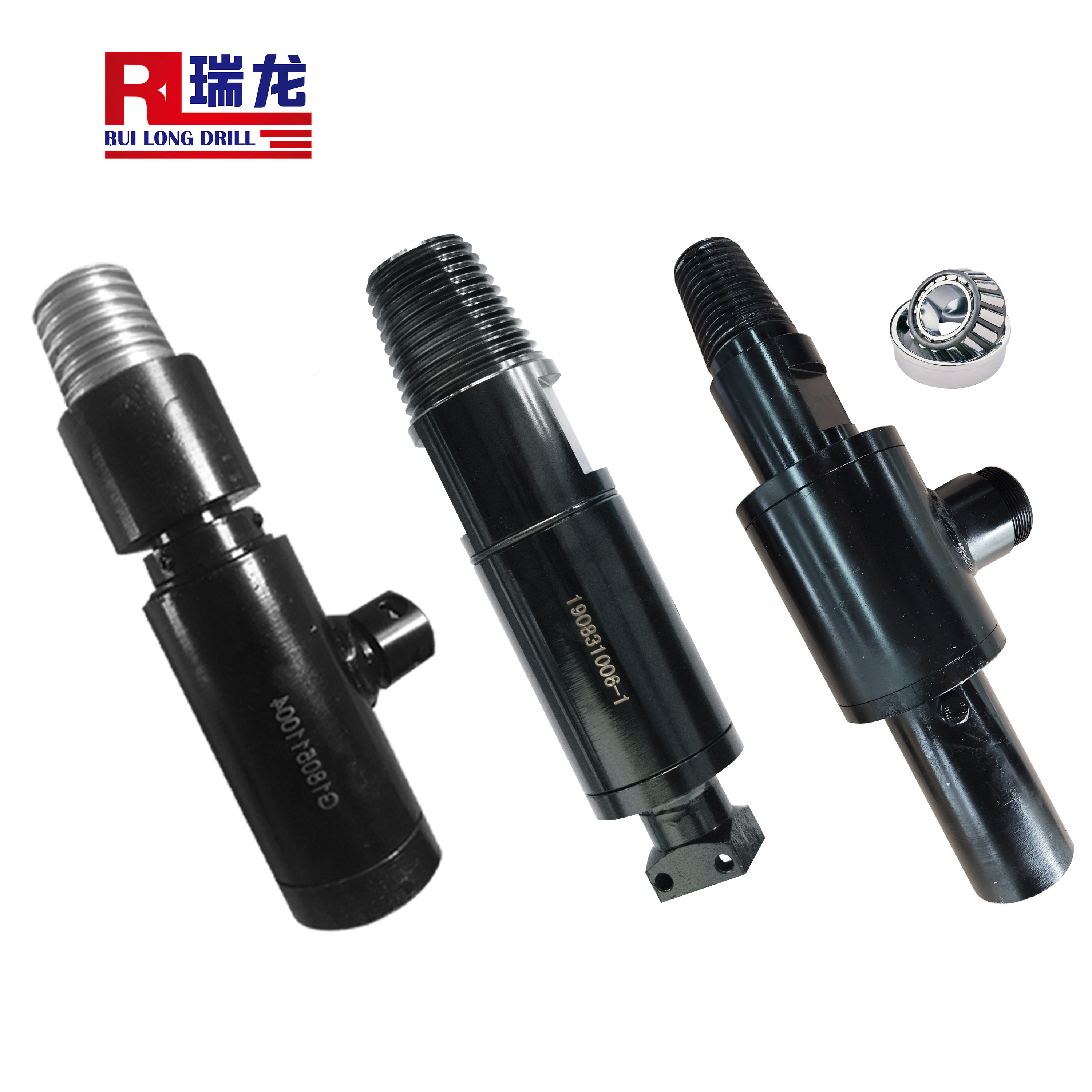

What is the advantage of our Water Swivel ?
Water swivel is also called water feeder.It is the necessary tools to supply water or air when connecting with drill pipe during mine mining and coal mine drilling.The water swivel series products produced by our company are compact and reasonable in structure design, adopt high wear-resistant seals, no water leakage, high pressure resistance, and use life-long maintenance-free metallurgical brackets for smoother operation and longer service life. This product is divided into front drive type and rear follower type according to the transmission form. It can be used according to different drill pipe types when in use.
The role of water swivel in drilling rigs:
The water swivel of the drilling rig is an important component of the drilling rig. Its main function is to adjust the flow and pressure of the drilling fluid to ensure the smooth progress of the drilling operation. Specifically, the drilling rig Water swivel can achieve the following three functions:
1. Adjust the flow rate of drilling fluid
The flow rate of drilling fluid needs to be adjusted according to the needs of drilling operations. The drilling rig Water swivel can control the flow rate of drilling fluid to meet the needs of drilling operations.
2. Adjust drilling fluid pressure
The pressure of drilling fluid needs to be adjusted according to engineering requirements. The drilling rig Water swivel can control the drilling fluid pressure to ensure the smooth progress of drilling operations.
3. Adjust the direction of drilling fluid
The water swivel of the drilling rig can also adjust the direction of the drilling fluid so that it flows toward the drilling wellhead or back into the drilling fluid tank to meet different drilling operation needs.
Specification
|
line number
|
Specification model mm
|
|
|
load form
|
Purpose
|
||
|
|
Thread specification
|
Outer diameter
|
length
|
|
|
||
|
1
|
M12×1.75
|
42
|
210
|
front drive
|
Ordinary coal drill
|
||
|
2
|
M12 1/2
|
42
|
210
|
front drive
|
Ordinary coal drill
|
||
|
3
|
M14×1.5
|
42
|
210
|
front drive
|
Ordinary coal drill
|
||
|
4
|
M14×2
|
42
|
210
|
front drive
|
Ordinary coal drill
|
||
|
5
|
M16×1.5
|
42
|
210
|
front drive
|
Ordinary coal drill
|
||
|
6
|
M18×1.5
|
42
|
210
|
front drive
|
Ordinary coal drill
|
||
|
7
|
F13×13
|
42
|
220
|
front drive
|
Handheld Pneumatic Drill
|
||
|
8
|
F14×14
|
42
|
220
|
front drive
|
Handheld Pneumatic Drill
|
||
|
9
|
F18×18
|
42
|
220
|
front drive
|
Handheld Pneumatic Drill
|
||
|
10
|
F24×24
|
55
|
220
|
front drive
|
Handheld Pneumatic Drill
|
||
|
11
|
T16×6
|
42
|
210
|
front drive
|
Handheld Pneumatic Drill
|
||
|
12
|
T19×6
|
42
|
210
|
front drive
|
Handheld Pneumatic Drill
|
||
|
13
|
R1:8/4.233
|
50
|
200
|
post follow
|
Tunnel Hydraulic Drilling Rig
|
||
|
14
|
R1:8/4.233
|
64
|
300
|
post follow
|
Tunnel Hydraulic Drilling Rig
|
||
|
15
|
R1:8/5.08
|
65
|
250
|
post follow
|
Tunnel Hydraulic Drilling Rig
|
||
|
16
|
R1:10/5.08
|
75
|
350
|
post follow
|
Tunnel Hydraulic Drilling Rig
|
||
Packing & Delivery
Wooden BOX
