Quick Details
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
DX BLAST
-
Weight (KG):
-
5000 KG
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
Products Description

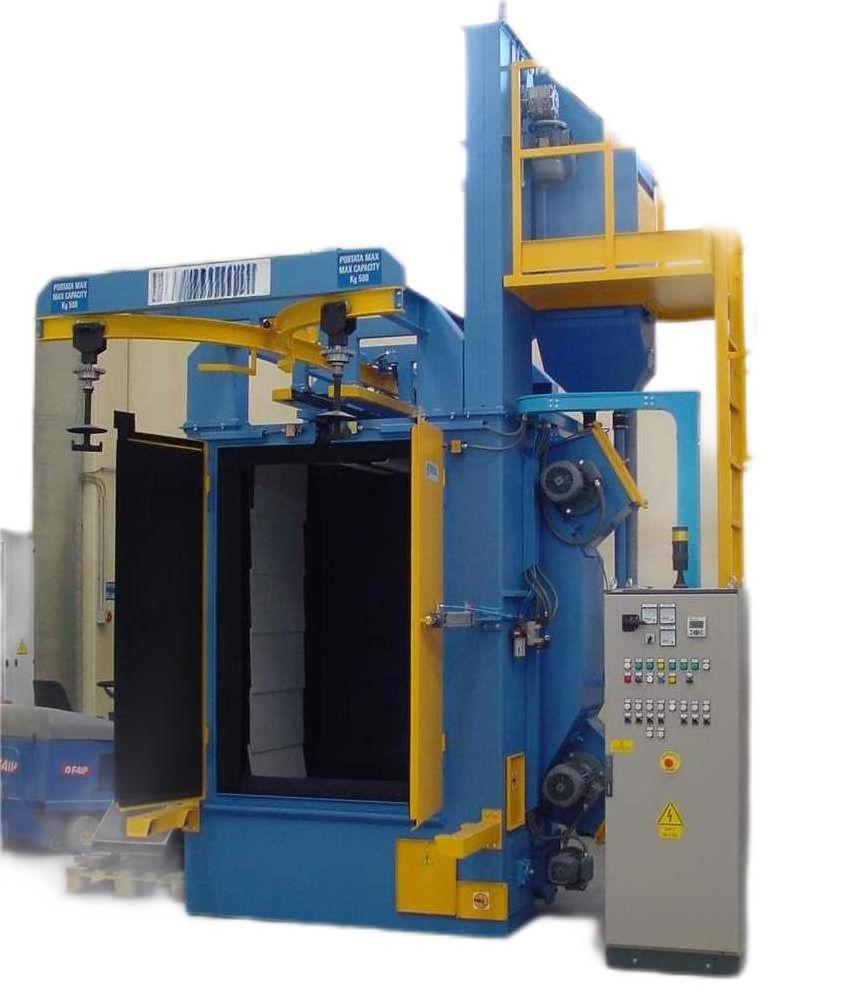

The hook shot blast machines are installations with operational flexibility. It is suitable for many types of workings. Such as:
castings, forgings, weldments, heat treatment device, including the fragile and irregularly shaped workpieces,steel structures .
1) Big inclination angle of mold cavity, can meet different products′casting technique.
castings, forgings, weldments, heat treatment device, including the fragile and irregularly shaped workpieces,steel structures .
1) Big inclination angle of mold cavity, can meet different products′casting technique.
2) Adjustable rotating speed of mold cavity, improve mold exhausting.
3) PLC control, full hydraulic drive, high dependability.
4) Urgent stop button in set on the machine body, it is easy.
5) It is convenient installing and regulating.
4) Urgent stop button in set on the machine body, it is easy.
5) It is convenient installing and regulating.
PRODUCT APPLICATION
The Spinner double hanger hook type shot blaster machine is for surface cleaning or strengthening treatment of small castings,forging parts in industry of foundry, building, chemical, motor, machine tool etc.
PRODUCT DETAILS
These Type of Machines consist of under mentioned Parts:
1. Main Blast Cabinet with inspection Door.
2.Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit.
4. Bucket Elevator unit.
5. Abrasive Separation/Cleaning system with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Hook with crane system 8. Control Panel with PLC Control System.
3. Abrasive circulation unit.
4. Bucket Elevator unit.
5. Abrasive Separation/Cleaning system with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Hook with crane system 8. Control Panel with PLC Control System.
PRODUCT PARAMETER
|
Model
|
Q376
|
Q378
|
Q379
|
Q3710
|
Q3720
|
Q3730
|
Q3740
|
Q3780
|
|
MAX. Weight
(KG)
|
1000
|
1000
|
1000
|
1000
|
2000
|
3000
|
5000
|
10000
|
|
Workpiece size
(mm)
|
φ600*1200
|
φ800*1500
|
φ900*1600
|
φ1000*2000
|
φ1200*2200
|
φ1400*2700
|
φ1600*3000
|
φ2500*5100
|
|
Charmber size
(L*W*H) (mm)
|
1500*1500*2500
|
1800*1800*2800
|
2000*2000*3000
|
2000*2000*3300
|
2200*2200*3500
|
2400*2400*4200
|
2600*2600*4500
|
3500*3500*7000
|
|
Blast Power
(KW)
|
2*7.5
|
2*11
|
2*11
|
2*11
|
3*11
|
3*11
|
6*11
|
8*11
|
|
Blast capacity
(kg/min)
|
2*130
|
2*180
|
2*180
|
2*180
|
3*180
|
3*180
|
6*180
|
8*180
|
|
Total Power
|
25kw
|
35kw
|
35kw
|
36kw
|
55kw
|
56kw
|
105kw
|
156kw
|
Our machines are divided into standard machines and customized models.
Customized any kinds of shot blasting machine according to your detail requests .
