Quick Details
-
Video Support:
-
Up to 4Kx2K 30Hz
-
Power Supply:
-
5V DC USB-C
-
Fiber Connector:
-
SFP / LC
-
Transmission Distance:
-
20KM
-
Casing:
-
IP40 Aluminum Case
-
Dimension (WxDxH):
-
73x44x17mm
Quick Details
-
Brand Name:
-
E-link
-
Model Number:
-
LNK-MH4K-S20
-
Place of Origin:
-
China
-
Video Support:
-
Up to 4Kx2K 30Hz
-
Power Supply:
-
5V DC USB-C
-
Fiber Connector:
-
SFP / LC
-
Transmission Distance:
-
20KM
-
Casing:
-
IP40 Aluminum Case
-
Dimension (WxDxH):
-
73x44x17mm
Product Description

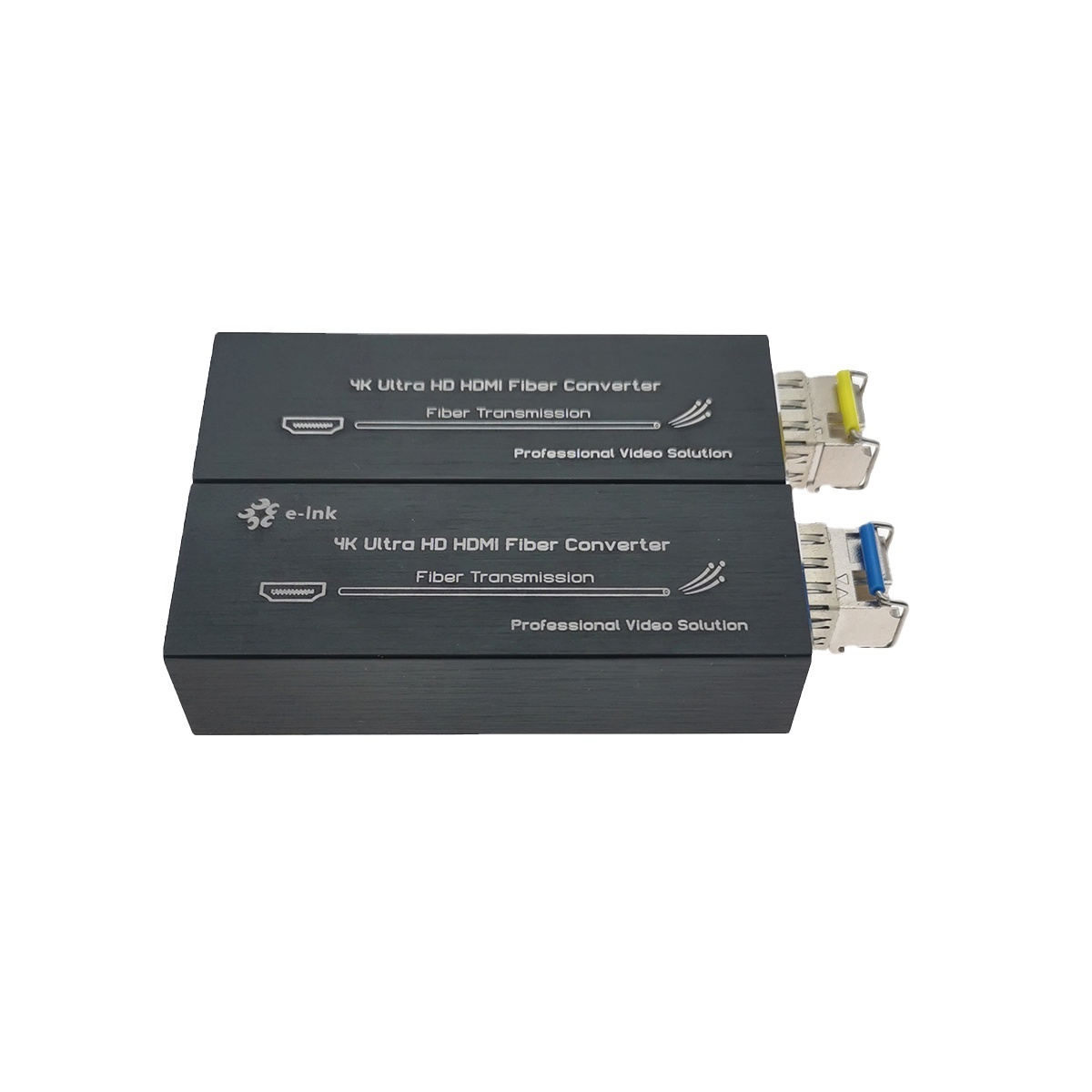

The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 80km, at a resolution of 4Kx2K.
The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
|
Product Name
|
Micro Mini 4K HDMI Fiber Extender
|
|
Connector
|
Female HDMI type A
|
|
Signal Support
|
HDMI 1.4a HDMI format standard and HDCP compliant
|
|
Video Support
|
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
|
|
Chroma Subsampling
|
Color space 420, 400
|
|
Dynamic EDID
|
Plug & Play, no need to learn
|
|
Fiber Connector
|
SFP/LC
|
|
Transmission Distance
|
20KM (Over Single-mode Fiber)
|
|
Operating Temperature
|
-10 to + 60°C
|
|
Dimension (WxDxH)
|
3.07 x 1.06 x 0.69in (78x27x17mm)
|
|
Power Supply
|
5V DC (USB-C)
|
