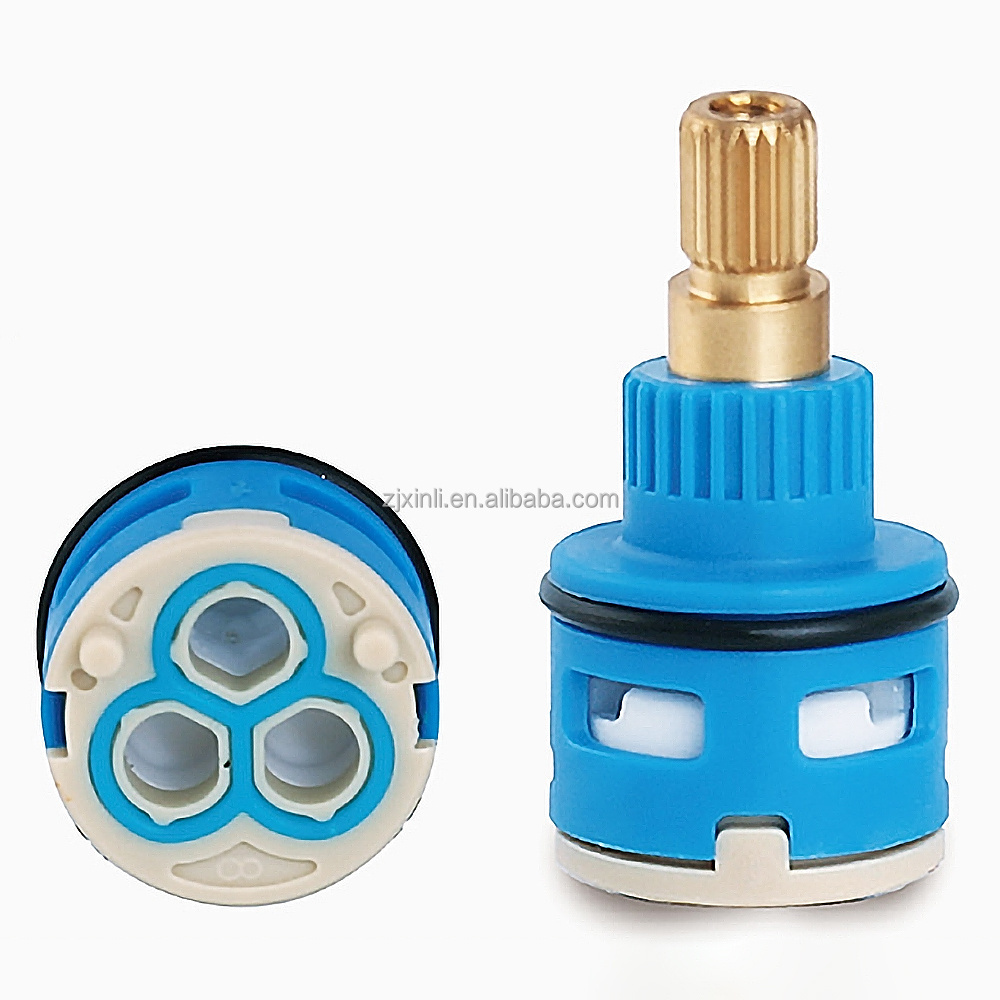

X3223 Plastic And Ceramic Material 22MM Diameter Flat of Faucet Diverter Cartridge
FOB Reference Price:
Get Latest Price
≥1000 Pieces
US $0.6
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
Product Details
{{item.text}}
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
xTruly
Model Number:
X3223
Type:
Faucet Cartridges
Quick Details
Project Solution Capability:
NONE
Application:
Hotel
Design Style:
Modern
Place of Origin:
Zhejiang, China
Brand Name:
xTruly
Model Number:
X3223
Type:
Faucet Cartridges
Product Description
Item No.:
X3223
Color:
Blue
Installation Size:
ø22MM
Max. Turning Angle:
90°c
Max. Temperature:
90°c
Max. Opening Angle:
90°c
Ceramic Disc:
(1)Hardness: 1100Hv5
(2)Flatness: ≤ 0.3 µm
(3)Roughness: ≤ Ra0.2 µm
(4)Gland Nut Torque: 4-6N.m
(5)Lever Break Torque:≥6-8N.m
(6)Static Water Pressure at Max.35Mpa, no Deformation
Life Time:
700,000 open and close cycles (EN817, GB18145-2003)
Logo:
Xinli Brand, OEM is available
Guarantee:
3 Years
AIR PRESSURE
Static Pressure
Dynamic Pressure
High Pressure
Low Pressure
0.10-0.25 Mpa
0.002-0.005 Mpa
0.03 Mpa
PRESSURE & FLOW RATE
Pressure
Mpa
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
Flow Rate
L / Min
10.8
13.6
16.2
18.8
21.0
23.0
24.8
26.2
28.0
29.6
ACCESSORIES LIST
No.
Description
Material
1
Body
PPO
2
Lever
Nylon
3
Pin
304HC
4
Holder
POM
5
Coupling
PC
6
Moving Dise
AL
2
O
3
≥96%
7
Fixed Dise
AL
2
O
3
≥96%
8
Sealing Gasket
Silicone
9
Base
PPO
10
Sealing Gasket
Silicone
Pictures
Packaging & Shipping
TERMS & SHIPPMENT
Terms:
(1)EXW Yiwu, (2)FOB Ningbo or Shanghai, (3)CFR, (4)CIF
Shipping:
(1)Express Air Mail {5-10days}, (2)Airfreight {7-15days}, (3)Sea {25-50days}
PAYMENT & CURRENCY
Our Services
Quality
: 100% Inspect before packing, Quality Control in our factory.
Payment
: (1)Escrew, (2)Western Union, (3)Paypal, (4)T/T {30% Deposit in Advance, 70% Balance Against Copy of B/L}.
Document
: (1)Telex Release B/L, (2)Original Document, We will send original B/L, Inovice and Packing list by TNT or DHL after received the full payment.
Loading
: (1)Full Container, We will supervise when loading in our warehouse. (2)LCL, We will send the shipment to loading port (Ningbo or Shanghai). (3)Several Supplier Orders in One Container, We can help customer to load mixing orders together.
Agency
: We can help customer to place order in elsewhere for other different products, and arrange the payment to factory, booking shipping and make the shipping documents.
