Quick Details
-
Product name:
-
ZLJ350 grouting reinforcement drill
-
Model:
-
ZLJ350
-
Borehole depth:
-
150m
-
Pipe diameter:
-
42mm
-
Geological bit diameter:
-
50-113mm
-
Hole diameter:
-
56-113mm
-
Hole Angle:
-
0~360°
-
Vertical shaft speed:
-
112 192 340r/min
-
Feed process:
-
400mm
-
Motor power:
-
5.5Kw
Quick Details
-
Weight (KG):
-
430
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Feiyang
-
Product name:
-
ZLJ350 grouting reinforcement drill
-
Model:
-
ZLJ350
-
Borehole depth:
-
150m
-
Pipe diameter:
-
42mm
-
Geological bit diameter:
-
50-113mm
-
Hole diameter:
-
56-113mm
-
Hole Angle:
-
0~360°
-
Vertical shaft speed:
-
112 192 340r/min
-
Feed process:
-
400mm
-
Motor power:
-
5.5Kw
ZLJ350 grouting reinforcement drill

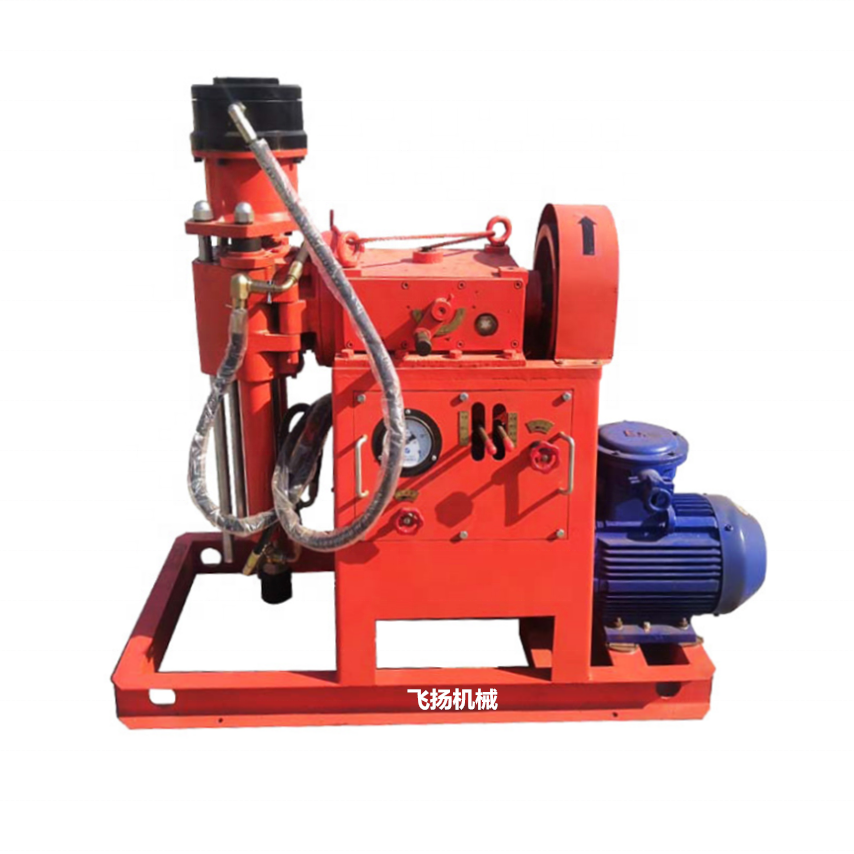

Introduction of ZLJ350 grouting reinforced drilling rig
ZLJ-350 grouting reinforcement drill is mainly used for grouting reinforcement drilling at different angles in mine, tunnel, subway and slope support. The drill adopts mechanical transmission and hydraulic feed, and has the characteristics of small volume, light weight and easy operation and maintenance.
ZLJ350 grouting reinforcement rig paramete rs
|
· item |
ZLJ350 |
|
· Borehole depth M |
150 |
|
· Pipe diameter mm |
|
|
· Geological bit diameter mm |
Φ50~Φ113 |
|
· Hole diameter mm |
Φ56~Φ113 |
|
· Hole Angle ° |
0~360° |
|
· Vertical shaft speed r/min |
112 192 340 |
|
· Vertical shaft torque N.m |
400 230 130 |
|
· Feed process mm |
400 |
|
Rated pressure of hydraulic system MPa |
8 |
|
· Motor type |
YBK2 132S 4 |
|
· Motor power KW |
5.5 |
|
· Body dimensions mm |
1230*630*1280 |
|
· Rig weight KG |
430 |
