Quick Details
-
Type:
-
Breakable Landing Fire Hydrant Outdoors
-
Material:
-
Cast Iron
-
Color:
-
Red Painting
-
Nominal diameter:
-
DN100/DN150
-
Working Pressure:
-
1.6MPa
-
Height:
-
700mm
-
Standard:
-
BS
-
Intensity test pressure:
-
2.4Mpa
-
Suitable medium:
-
Water
-
Description:
-
Manual
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Minshan
-
Model Number:
-
MS-FH-012
-
Type:
-
Breakable Landing Fire Hydrant Outdoors
-
Material:
-
Cast Iron
-
Color:
-
Red Painting
-
Nominal diameter:
-
DN100/DN150
-
Working Pressure:
-
1.6MPa
-
Height:
-
700mm
-
Standard:
-
BS
-
Intensity test pressure:
-
2.4Mpa
-
Suitable medium:
-
Water
-
Description:
-
Manual
4 way fire hydrant underground type fire hydrant
-
underground fire hydrant
-
fire hydrants for sale
-
type fire hydrant
4 way fire hydrant underground type fire hydrant with ISO, CCC Certificates
1.Feature and Advantage
(1) Original appearance degsin
(2) Engineering grade reflective film
(3) 45# Chrome plating steel anticorrosive processed
(4) Ultraviolet-proof red painting
(6) Ensure no leakage
2.Description

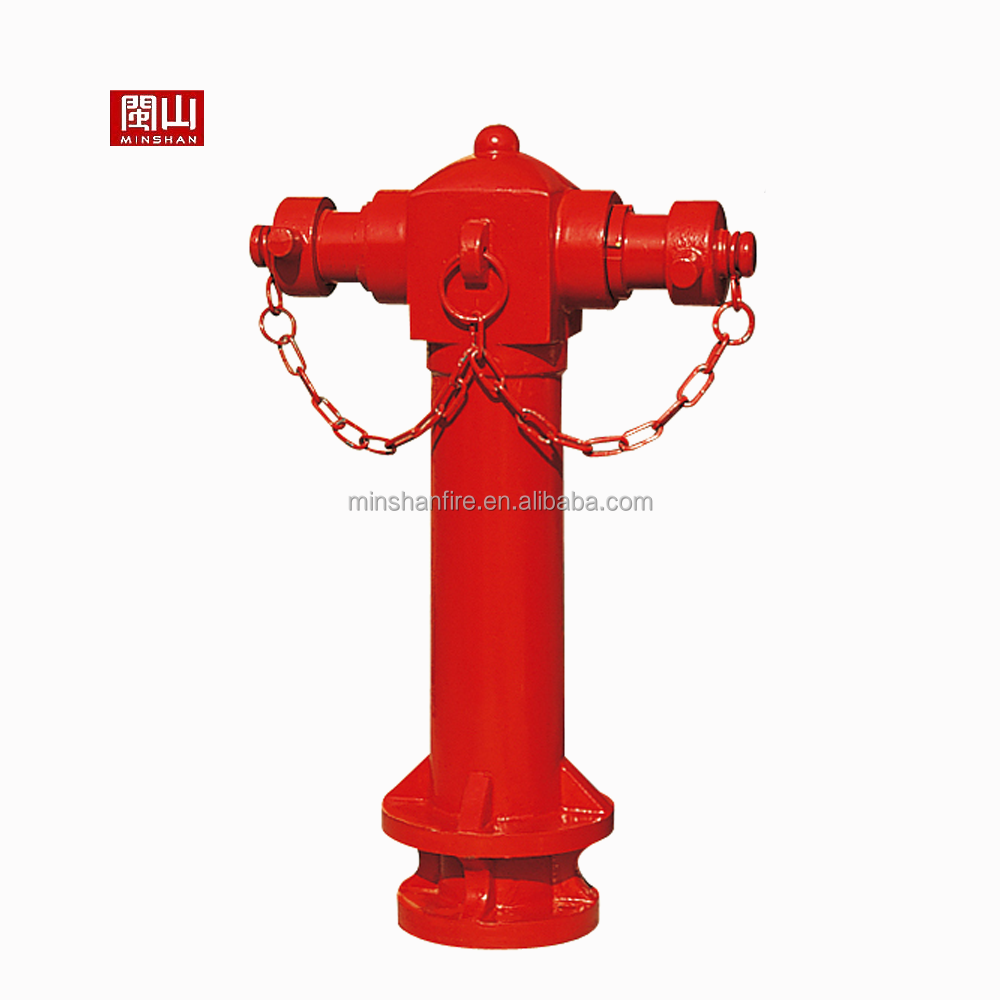

Outdoor fire hydrant is the water supplier which is connected to the pipelie network of fire system set outside the building.It aims to supply water for fire engines from municipal water supply network or outdoor water supply network.It can also be directly commected to stream nozzle for putting out fire. The hydrant can be categorized as SS-type and SA-type.The SS-type upper ground fire hydrant has abvious part that higher than ground and can be installed at places where have higher temperatures.It is convenience.The SA-type hydrants are installed undergound and would't affect the appearance of the city.This type is more suitable for cold regions.
Ability of stabilized pressure: when pressure of water inlet is 1.2MPa,the outlet pressure is 0.3MPa~1.0MPa
They are all approval by International Quality Supervision and Inspection Center,quality ensured, safty&reliable,a very good choice for customers.
3.Technicial Specification of Landing fire hydrant
| Type | Landing/Anti-knock | Landing/ Anti-theft | Landing/Aanti-knock and Anti-theft Decompress and stabilized -press | Underground | ||
| Model | SS100/65-1.6 | SS150/80-1.6 | SS100/65-1.6A | SSFDZW100/65-1.6 | SA100/65-1.6 | SA150/80-1.6 |
| Nominal Diameter (mm) | DN100 | DN150 | DN100 | DN100 | DN100 | DN150 |
| Height (mm) | 50 | 55 | 50 | 50 | 50 | 55 |
| Nominal running pressure (MPa) | 1.6 | |||||
| Intensity test pressure (MPa) | 2.4 | |||||
| Application |
Water ore foam solution
|
|||||
Outstanding Service:
Fast feedback: we promise to reply your inquiry within 24hours
Positive cooperation with your esteemed company
Good suggestions to your choice if necessary with our own rich experience
OEM accepted
Your visited to factory welcomed!
Q:Are you a factory or trading company?
We are factory specialized on fire fighting equipment.
Q: Can I get a sample?
For certainly, please contact us for detail.
Q:What's the terms of the payment?
T/T, L/C, Western Union, MoneyGram, etc.
Key Words: underground fire hydrant fire hydrants for sale type fire hydrant
