Quick Details
-
Milling mode:
-
declination
-
Power:
-
Honda GX390
-
Drum Set:
-
1drum+90pcs blades+6pcs blade shafts
-
Driving:
-
manual push
-
Depth Control:
-
adjustable (0-10mm)
-
Scarifying Drum:
-
replaceable blade
-
Efficiency:
-
25-50㎡/h
-
Application:
-
concrete or asphalt road
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
250mm asphalt road milling machine floor(JHE-250)
-
Milling mode:
-
declination
-
Power:
-
Honda GX390
-
Drum Set:
-
1drum+90pcs blades+6pcs blade shafts
-
Driving:
-
manual push
-
Depth Control:
-
adjustable (0-10mm)
-
Scarifying Drum:
-
replaceable blade
-
Efficiency:
-
25-50㎡/h
-
Application:
-
concrete or asphalt road

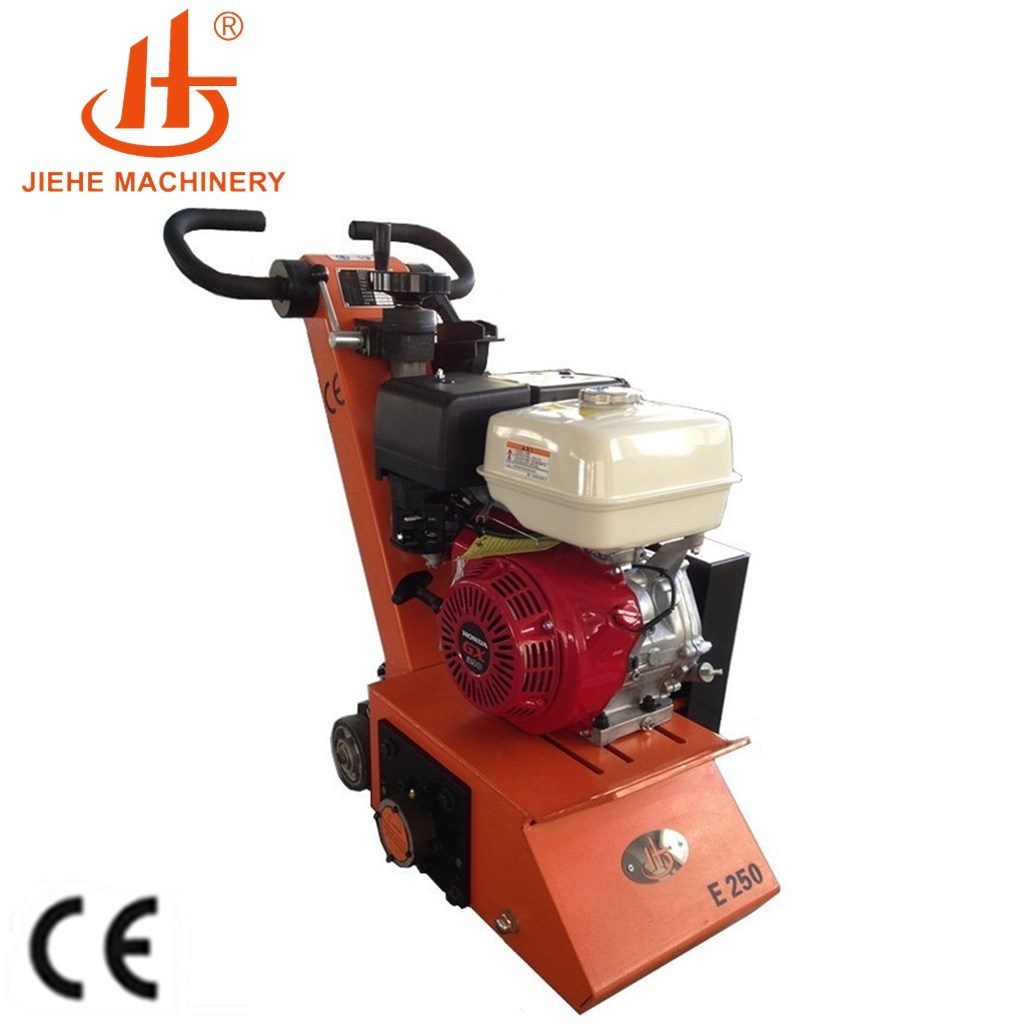

Portable Road Milling Machine Used For Creating Grooves In Concrete
Jiehe concrete and milling m achine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results.A tripled drum bearing and hardened cutter shafts make it particularly reliable .
Product detail
Case
We have provided customized products for constructions of the Hong Kong-Zhuhai-Macao Bridge , including scarifying machines to ensure flatness of bridge joints as well as custom-made dust-free cutting machines to avoid secondary pollution to construction sites. They have tremendously saved construction time and perfectly coordinated with progress of the project.
What's the Specifications ?
13HP Honda GX390 engine and super four or six bearings ;
Drum is heat treated specially;
Exclusive supply good quality cutter;
Drum can be replaced easily;
With a dust-proof device
Parameter
|
Model |
JHE-250 |
JHE-250E |
JHE-250K |
JHE-250D |
|
Power Source |
GX390 Honda/ GX270 |
Siemens Electrical motor |
Kohler CH440/ CH395 |
186F Diesel Gasoline engine |
|
Horse Power |
13HP/9HP |
7.5KW |
14HP/9.5HP |
10 HP |
|
Working width |
250mm |
250mm |
250mm |
250mm |
|
Working depth |
0-10mm |
0-10mm |
0-10mm |
0-10mm |
|
No. of shaft |
6pieces |
6pieces |
6pieces |
6pieces |
|
No. of cutter |
90pieces |
90pieces |
90pieces |
90pieces |
|
Power Drive |
Manual |
Manual |
Manual |
Manual |
|
Working area |
25-50 m2 / H |
25-50 m2 / H |
25-50 m2 / H |
25-50 m2 / H |
|
Net Weight |
178KG |
201KG |
132KG |
199KG |
|
L× W× H |
910×470×880mm |
910×470×880mm |
910×470×880mm |
910×470×880mm |
|
Drum Rotation |
Down cut (clock wise) |
|||
|
Milling mode |
downward cut |
|||
|
Depth Control |
Adjustable |
|||
Other engines you can choose
JHE-250E
JHE-250K
JHE-250D
We have different styles
970mm(38") and 850mm(33.5")Height are Built for Your Choice
About our Drum and cuttrers
Why choose US ? Send Inquiry Now<<<
1.We are factory,direct factory price.
2.Picture and videos can be provide to you to show how to use the machine.
3.7*24 hours Serve :we treat our clients as friends.
4.High quality:we have strict quality control system and enjoy a good reputation in the world.
5. With more than 19 years manufacturing experiences.
What's our road scarifier machine used for ?
Our products are widely used in
- municipal conservation,
- road construction,
- building construction,
- flooring treatment(epoxy floor, wear-resistant floor)
- other fields.(remove traffic line, rutty of road and airport)
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.
JHE-250 packaging dimensions(mm) is: 990*550*980.
30 sets 1 container normally.
