Quick Details
-
Walkie Talkie Type:
-
walkie talkie
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Baofeng
-
Model Number:
-
UV-5R
-
Dimensions:
-
110x58x32 mm (Excluded Antenna)
-
Frequency Range:
-
VHF: 136.00-174.00 MHz; UHF: 400.00-480.00MHz
-
Output:
-
4W/1W
-
Step Frequency:
-
2.5/5/6.25/10/12.5/20/25KHz
-
Rated voltage:
-
DC 7.4V
-
Frequency Stability:
-
±2.5ppm
-
Work Temperature:
-
-20 ℃ to +60℃
-
Battery Capacity:
-
H-1800m Ah (Li-ion Battery)
-
Battery Life:
-
About 12 Hours
-
Frequency Combination:
-
PLL frequency synthesis
-
Antenna Impedance:
-
50 Ω
-
Output Power:
-
5W / 1W (Max 5W)
Quick Details
-
Talk Range:
-
1-5km
-
Terminal style:
-
Handheld
-
Storage Channel:
-
128
-
Walkie Talkie Type:
-
walkie talkie
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Baofeng
-
Model Number:
-
UV-5R
-
Dimensions:
-
110x58x32 mm (Excluded Antenna)
-
Frequency Range:
-
VHF: 136.00-174.00 MHz; UHF: 400.00-480.00MHz
-
Output:
-
4W/1W
-
Step Frequency:
-
2.5/5/6.25/10/12.5/20/25KHz
-
Rated voltage:
-
DC 7.4V
-
Frequency Stability:
-
±2.5ppm
-
Work Temperature:
-
-20 ℃ to +60℃
-
Battery Capacity:
-
H-1800m Ah (Li-ion Battery)
-
Battery Life:
-
About 12 Hours
-
Frequency Combination:
-
PLL frequency synthesis
-
Antenna Impedance:
-
50 Ω
-
Output Power:
-
5W / 1W (Max 5W)

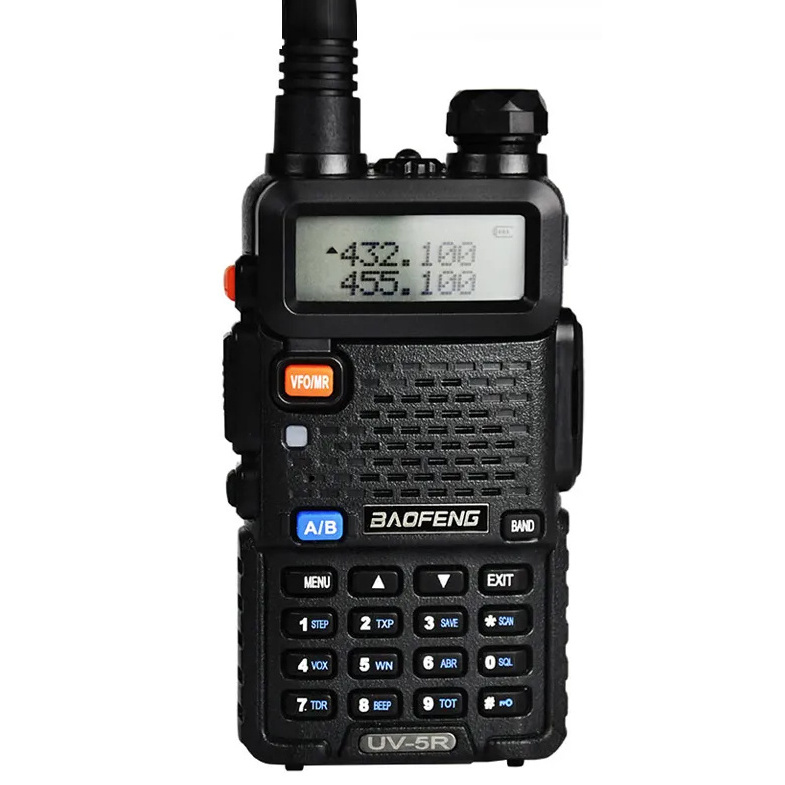

Baofeng High quality VHF UHF dual band handy two way radio UV-5R Ham radio for commercial
Features
- Dual channel waiting
- Digital Tuning FM Radio
- DTMF dual-tone multi-frequency encoding
- 50 sets of standard CTCSS, 104 sets of DCS
- Transmission timeout limit
- 6 steps step frequency
- Power saving mode
- VOX voice control transmit
- Channel busy lock
- Low battery warning
- Automatic backlight
- DTMF side tone switch
- Three scanning methods (time, carrier, search)
- Menu item keyboard digital direct selection function
- Scaling function
- Emergency alarm
Accessories
- 1* Antenna
- 1* Li-ion battery
- 1* Power adapter
- 1* C harger
- 1* Belt clip
- 1* Manual
|
General Specifications |
|
|
Frequency Range |
VHF: 136.00-174.00 MHz UHF: 400.00-520.00MHz (Dual band) |
|
Channel Capacity |
128 |
|
Frequency Spacing |
2.5/5/6.25/10/12.5/25 kHz |
|
Power supply |
7.4V |
|
battery capacity |
1800mAh Li-ion battery |
|
Frequency Stability |
±0.5ppm |
|
Operating Temperature Range |
-30 °C to + 60°C |
|
Dimension (L×W×H) |
110 x 58 x 32 mm (Excluded Antenna) |
|
Weight |
130g |
|
Transmitter and receiver |
|
|
Output power |
1W/4W |
|
|
|
|
FM Hum and Noise |
40dB @ 12.5KHz; 45dB @ 25KHz
|
|
Modulation Limited |
±2.5KHz @ 12.5KHz; ±5.0KHz @ 25KHz |
|
Audio Distortion |
3% |
|
Conducted / Radiated Emission |
-36dBm <1GHz
|
|
Adjacent Channel Power |
-60 dB @ 12.5 kHz -70 dB @ 25 kHz |
