Quick Details
-
Brand Name:
-
Qinglei
-
Liquid Flow Rate:
-
customized
-
Maximum Working Pressure:
-
customized
-
Weight:
-
350 KG
-
Dimension(L*W*H):
-
customized
-
Working Temperature Range:
-
customized
-
Product Name:
-

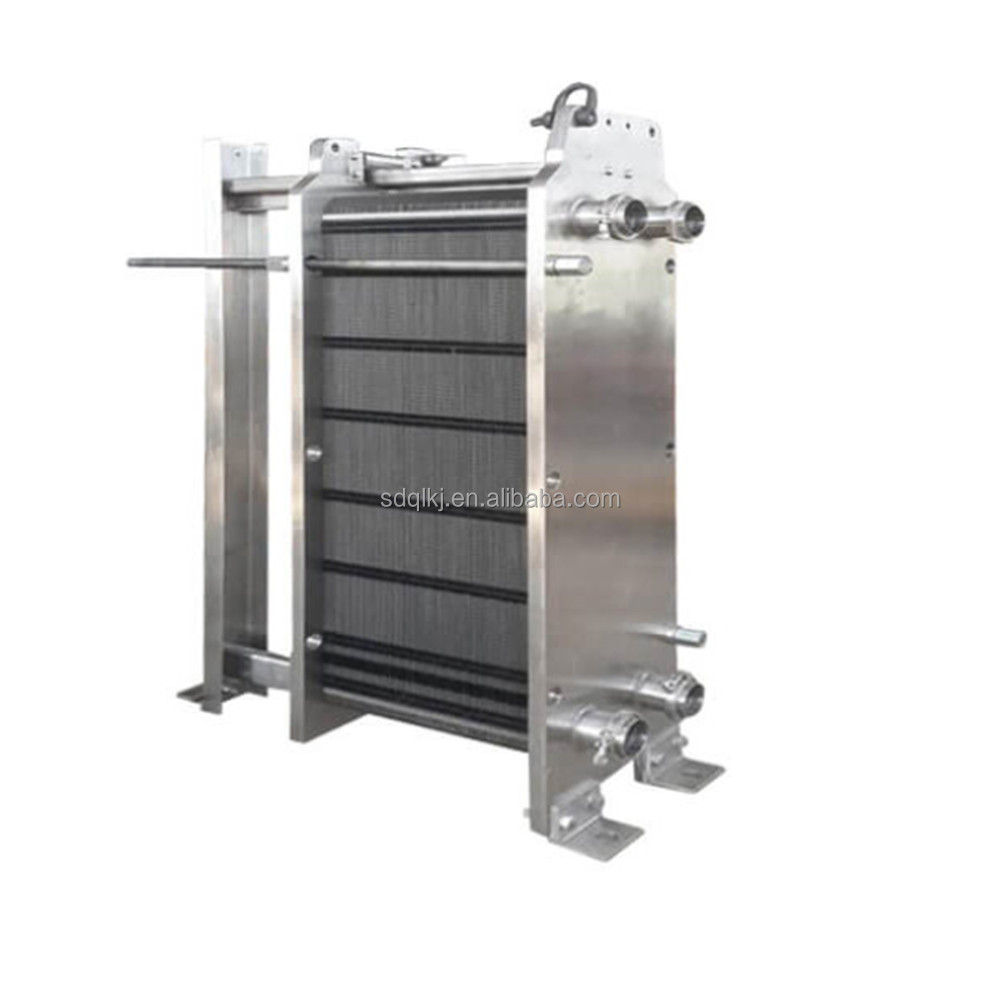

Stainless Steel Plate Heat Exchanger
-
Application:
-
Heat Transfer Cooling
-
Heat exchanger type:
-
Plate Heater Exchanger
-
Material:
-
SS304/SS316
-
Plate material:
-
SS304/SS316/SS316L/Titanium/ALLOY C276
-
Gasket material:
-
NBR/EPDM
-
Design Temperature:
-
-40℃- 180 ℃
-
Design Pressure:
-
0.6 - 2.5 MPa
-
Assembly Surface:
-
≤ 3800㎡
-
Diameter of port hole:
-
DN32- DN500
Quick Details
-
Structure:
-
Plate Heat Exchanger
-
Voltage:
-
customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Qinglei
-
Liquid Flow Rate:
-
customized
-
Maximum Working Pressure:
-
customized
-
Weight:
-
350 KG
-
Dimension(L*W*H):
-
customized
-
Working Temperature Range:
-
customized
-
Product Name:
-
Stainless Steel Plate Heat Exchanger
-
Application:
-
Heat Transfer Cooling
-
Heat exchanger type:
-
Plate Heater Exchanger
-
Material:
-
SS304/SS316
-
Plate material:
-
SS304/SS316/SS316L/Titanium/ALLOY C276
-
Gasket material:
-
NBR/EPDM
-
Design Temperature:
-
-40℃- 180 ℃
-
Design Pressure:
-
0.6 - 2.5 MPa
-
Assembly Surface:
-
≤ 3800㎡
-
Diameter of port hole:
-
DN32- DN500
Features:
• High energy efficiency-low operating cost
• Anti-clog structure
• Stable plate package
• Highest heat transfer rates
• Easy to install-compact design
• clip-on gasket
• easy cleaning by CIP
Applications:
• Milk
• Row milk
• Yorgut
• Food and Beverages
• Juice
• Cream
• Beer
• Beer wort
• Alcohal
• Wine
• High energy efficiency-low operating cost
• Anti-clog structure
• Stable plate package
• Highest heat transfer rates
• Easy to install-compact design
• clip-on gasket
• easy cleaning by CIP
Applications:
• Milk
• Row milk
• Yorgut
• Food and Beverages
• Juice
• Cream
• Beer
• Beer wort
• Alcohal
• Wine
Specification
Plate heat exchanger is an ideal equipment for liquid-liquid and liquid-gas heat exchange. It has advantages of high thermal efficiency, small heat loss, compact structure, small covering area, convenient installation and washing, wide range of application and long service life etc. As a high-efficiency and energy-saving product, plate heat exchangers have been widely used in various industrial fields such as mining, metallurgy, petroleum, chemical industry, machinery, textile, papermaking, shipbuilding, and marine development.
|
Specification for plate heat exchanger
|
|
|
|
Material
|
304, 316,316L, titanium.
|
|
|
Design Temperature
|
-40℃-180℃
|
|
|
Design Pressure
|
0.6-2.5Mpa
|
|
|
Thickness of Plate
|
0.4-1.15mm
|
|
|
Assembly Surface
|
≤3800m²
|
|
|
Diameter of port hole
|
DN32-DN500
|
|
|
Area of single plate
|
0.03-3.65m²
|
|
|
Plate
|
|
|
|
Material
|
Application
|
|
|
304,304L,316,316L
|
A fluid with a low chloride ion content
|
|
|
Ta1
|
Solutions with high chloride ions such as seawater
|
|
|
Hastelloy
|
Chlorinating acids, such as sulfuric acid, mixed acids
|
|
|
Ta9
|
Reducing acids, such as hypochlorous acid
|
|
|
Rs-2
|
Strong acids, such as concentrated sulfuric acid, nitric acid, etc.
|
|
|
sealing gasket
|
|
|
||
|
Material
|
Working Temperature
|
Working Enviroment
|
||
|
EPDM
|
-50°C ~180°C
|
Water, general organic and inorganic acids, alkalis and chemical media
|
||
|
NBR
|
-20°C ~110°C
|
Water, oil, aldehyde and general corrosive medium
|
||
|
Rubber for food and medicine
|
20°C ~120°C
|
Food
|
||
|
FKM
|
0°C ~180°C
|
Organic solutions, acids, bases, alcohols, oils, etc.
|
||
|
LDR
|
-40°C ~100°C
|
Alkali and some acids
|
||
|
Silicone Rubber
|
-65°C ~230°C
|
Some oils, alcohol
|
||
