Quick Details
-
Lamp Body Material:
-
Aluminium
-
Product Weight（kg）:
-
2.5
-
Input Voltage(V):
-
12V
-
CRI (Ra>):
-
75
-
Working Temperature(℃):
-
-20℃-+70℃
-
Working Lifetime(Hour):
-
50000H
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
0.75mm
-
Diameter of fiber:
-
0.75mm
-
Application:
-
Lighting Decoration
-
Fiber Type:
-
PMMA end lit fiber optic cable
-
Length:
-
2700m/roll
-
Typical Attenuation(dB):
-
<0.25dB/m
-
Material:
-
Plastic PMMA
-
Function:
-
Sky Starry Star Effect for car ceiling decoration
-
Certification:
-
Reach ROHS
-
Product name:
-

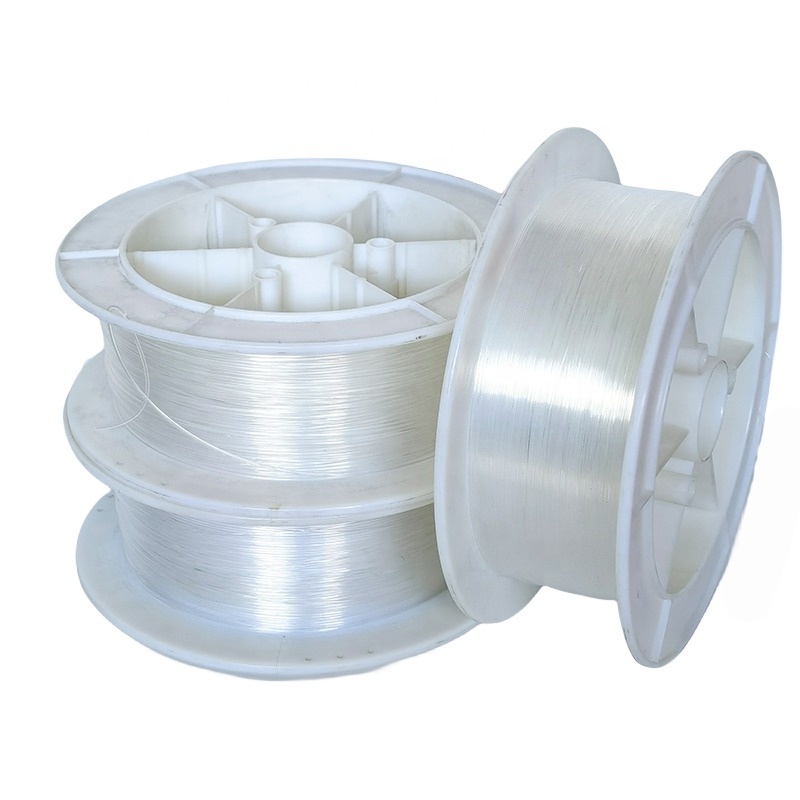

0.75mm diameter PMMA plastic end glow optical fiber cable
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Warranty(Year):
-
2-Year
-
Lamp Body Material:
-
Aluminium
-
Product Weight（kg）:
-
2.5
-
Input Voltage(V):
-
12V
-
CRI (Ra>):
-
75
-
Working Temperature(℃):
-
-20℃-+70℃
-
Working Lifetime(Hour):
-
50000H
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
0.75mm
-
Diameter of fiber:
-
0.75mm
-
Application:
-
Lighting Decoration
-
Fiber Type:
-
PMMA end lit fiber optic cable
-
Length:
-
2700m/roll
-
Typical Attenuation(dB):
-
<0.25dB/m
-
Material:
-
Plastic PMMA
-
Function:
-
Sky Starry Star Effect for car ceiling decoration
-
Certification:
-
Reach ROHS
-
Product name:
-
0.75mm diameter PMMA plastic end glow optical fiber cable
| Product Level | Product Code | Product Name |
Fiber diameter
(mm) |
Numerical aperture |
Attenuation
(dB/km) |
Rollof
length (M) |
| SD fiber | SD250 | POFφ0.25mm | 0.25mm | 0.5 | ≤ 250 | 12000m |
| SD500 | POFφ0.5mm | 0.5mm | 0.5 | ≤ 250 | 6000m | |
| SD750 | POFφ0.75mm | 0.75mm | 0.5 | ≤ 230 | 2700m | |
| SD1000 | POFφ1.0mm | 1.0mm | 0.5 | ≤ 230 | 1500m | |
| SD1500 | POFφ1.5mm | 1.5mm | 0.5 | ≤ 230 | 700m | |
| SD2000 | POFφ2.0mm | 2.0mm | 0.5 | ≤ 230 | 350m | |
| SD2500 | POFφ2.5mm | 2.5mm | 0.5 | ≤ 230 | 200m | |
| SD3000 | POFφ3.0mm | 3mm | 0.5 | ≤ 230 | 150m |
1.Diameter specification: 0.5mm-3.0mm
2.Fiber core Material: PMMA
3.Light reduction:230dB/km
4.Numerical Aperture: 0.5
5.Wavelength range:390-760nm
6.Numerical aperture:0.5
7.Clad refractive index:1.402
8.Allowable working temperature range: - 50°C- +70°C
1.Transmit visible light
2.Nice transparent surface
3.Excellent toughness and can bend random
4.Excellent fiber diameter uniform distribution
5.No UV or IR energy
6.separation of light and electricity, safe and reliable application in flammable and explosive occasion.
7.Easy to install and doesn't need maintenance.
8.optical fiber display with lower attenuation and high brightness, full color render, clear vision, lower power, easy recycle and long life etc.
For all kinds led fiber optic illuminator engine and decoration such as optical fiber hanging lamps,optical fiber curtains, optical fiber falling waters, optical fiber star ceiling,etc.
Packaging & Shipping
Packing size: 30*30*12cm one roll, 2.5kg/roll.
One carton packing size: 58*31*31cm 5rolls/carton, 13kg/carton
If order qty is more than 100rolls, we will offer pallet as below 100rolls/pallet.
