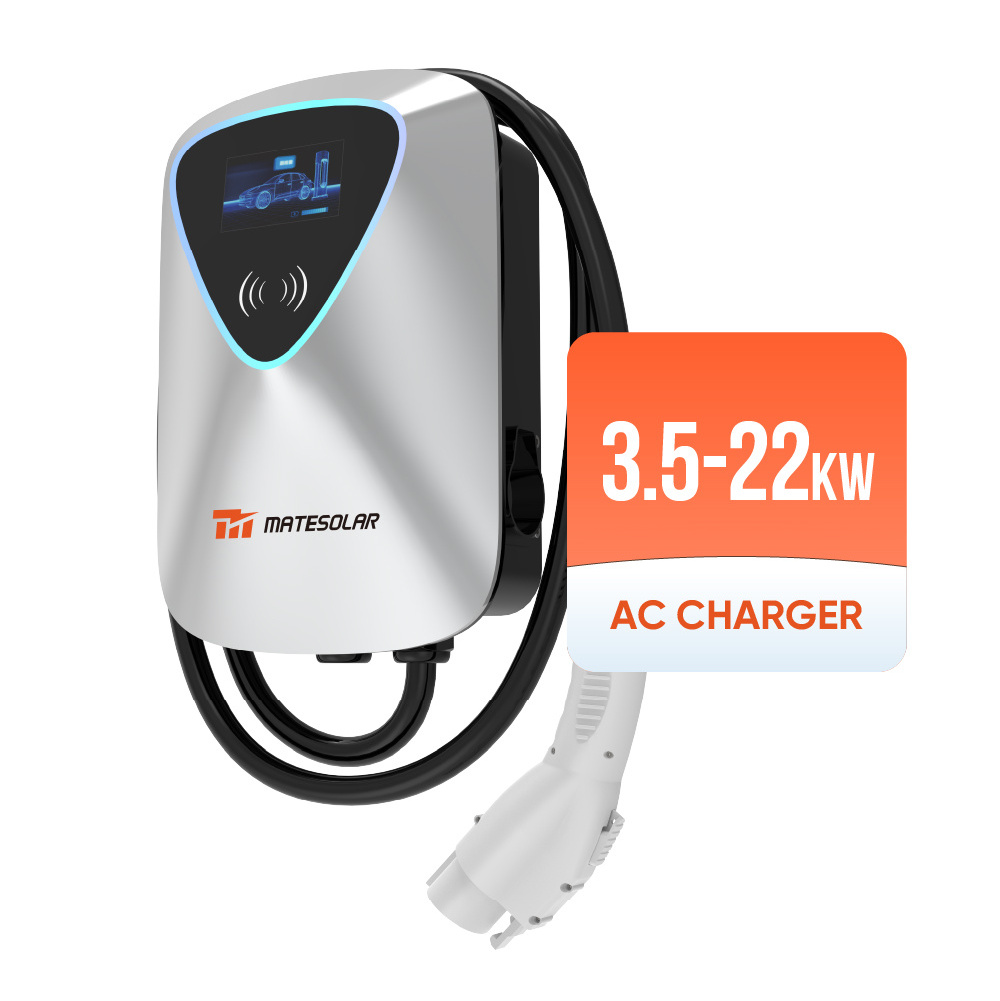

Rated Power: 3.5/7/11/22KWOutput Current: 16/32/50A
Output Voltage: 220~240V, 380-415V
Charger Connector: CCS1/2, CHAdeMO
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Output Power:
-
3-22KW
-
Input Voltage:
-
220/240/380V
-
EV Charger Type:
-
AC
-
Charger Capacity:
-
3.5/7/11/22KW
-
Mounting:
-
Wall-Mounted/Column Type
-
Cooling:
-
Natural Cooling
-
IP Ratings:
-
IP 55
-
Display:
-
4.3 InchesTouch Screen
-
User Authentication:
-
APP or User Interface / QR Code/RFID Card /Password Login
-
Communication Protocol:
-
OCPP 1.6J Protocol (Optional)
-
Interface between Charger and CMS:
-
Ethernet/3G/4G/WIFI (Optional)
-
Certificate:
-
IEC 62196 2017, IEC 61851 2017, SAE J1772
Quick Details
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
EV Charger AC 3.5-22KW
-
Brand Name:
-
Mate
-
Output Power:
-
3-22KW
-
Input Voltage:
-
220/240/380V
-
EV Charger Type:
-
AC
-
Charger Capacity:
-
3.5/7/11/22KW
-
Mounting:
-
Wall-Mounted/Column Type
-
Cooling:
-
Natural Cooling
-
IP Ratings:
-
IP 55
-
Display:
-
4.3 InchesTouch Screen
-
User Authentication:
-
APP or User Interface / QR Code/RFID Card /Password Login
-
Communication Protocol:
-
OCPP 1.6J Protocol (Optional)
-
Interface between Charger and CMS:
-
Ethernet/3G/4G/WIFI (Optional)
-
Certificate:
-
IEC 62196 2017, IEC 61851 2017, SAE J1772
Product Description
Specification
|
NO.
|
Parameters
|
Requirements
|
|
|
|
|||||
|
General Requirements
|
|
|
|
|
|
|||||
|
1
|
EV Charger Type
|
AC
|
|
|
|
|||||
|
2
|
Charger Capacity
|
3.5KW
|
7KW
|
11KW
|
22KW
|
|||||
|
3 |
Product Model NO.
|
ENC-ACB/L003P5A-S
ANSI-ACB/L003P5A-S
|
ENC-ACB/L007A-S
ANSI-ACB/L007A-S
|
ENC-ACB/L011A-S
ANSI-ACB/L011A-S
|
ENC-ACB/L022A-S
|
|||||
|
4
|
Mounting
|
Wall-Mounted/Column Type
|
|
|
|
|||||
|
Input Requirements
|
|
|
|
|
|
|||||
|
5 |
AC Supply System
|
Single-Phase, 3 Wire AC system
|
|
Single-Phase, 3 Wire AC system(ANSI)
Three-Phase, 5 Wire AC system(ENC) |
|
|||||
|
6 |
Nominal Input Voltage
|
AC220V±15%(ENC)
AC240V±15%(ANSI)
|
|
AC380V±15%(ENC)
AC240V±15%(ANSI)
|
AC380V±15%
|
|||||
|
7
|
InputFrequency
|
50±3Hz
|
|
|
|
|||||
|
Environmental Requirements
|
|
|
|
|
|
|||||
|
8 |
Ambient Temperature
Range
|
-25 to 55°C
|
|
|
|
|||||
|
9
|
Ambient Humidity
|
5 to 95%
|
|
|
|
|||||
|
10
|
Storage Temperature
|
-40 to 70°C
|
|
|
|
|||||
|
Mechanical Requirements
|
|
|
|
|
|
|||||
|
11
|
IP Ratings
|
IP 55
|
|
|
|
|||||
|
12
|
Cooling
|
Natural Cooling
|
|
|
|
|||||
|
Output Requirements
|
|
|
|
|
|
|||||
|
13
|
Number of Outputs
|
1
|
|
|
|
|||||
|
14 |
Type of Each
Output
|
AC220V±15%(ENC)
AC240V±15%(ANSI)
|
|
AC380V±15%(ENC)
AC240V±15%(ANSI)
|
AC380V±15%
|
|||||
|
15
|
Single Output Max. Current
|
16 Amp
|
32 Amp
|
16 Amp/50 Amp
|
32 Amp
|
|||||
|
User Interface & Display Requirements
|
|
|
|
|
|
|||||
|
16
|
Display & Screen Size
|
4.3 Inches Screen
|
|
|
|
|||||
|
17
|
User Authentication
|
QR Code/RFID Card /Password Login
|
|
|
|
|||||
|
18
|
Metering Information
|
Consumption Units
|
|
|
|
|||||
|
Communication Requirements
|
|
|
|
|
|
|||||
|
19 |
Communication between
EVSE and Central Server
|
OCPP 1.6J Protocol (Optional)
|
|
|
|
|||||
|
20 |
Interface between Charger
and CMS
|
Ethernet
|
|
|
|
|||||
|
Protection & Safety Requirements
|
|
|
|
|
|
|||||
|
21
|
Executive Standard
|
IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
|
|
|
|
|||||
|
22 |
Safety Parameters
|
Over Current, Under Voltage, Over Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over
Temperature, etc.
|
|
|
|
|||||
