Quick Details
-
Jacket:
-
XLPO
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
Pv1-f, H1z2z2-k
-

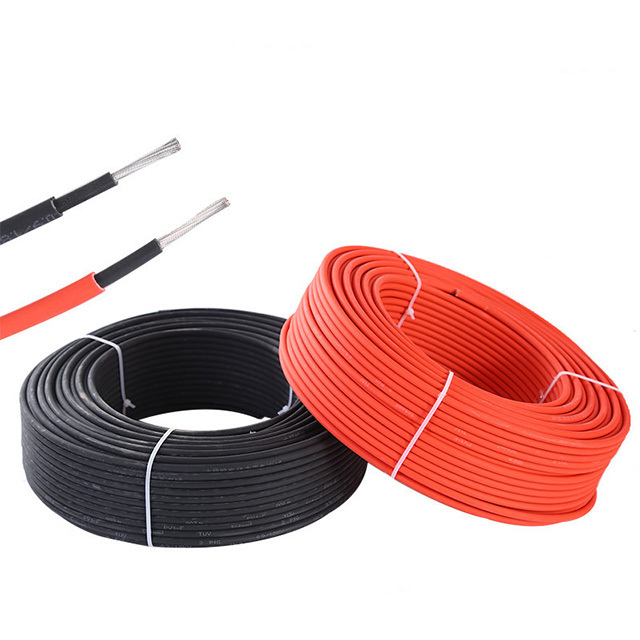

Product name:
-
DC solar cable
-
Insulation:
-
XLPE /XLPO
-
Sheath:
-
XLPE /XLPO
-
Rated voltage:
-
600/1000V AC 1500V DC
-
Core:
-
single Core/ twin core
-
Certificate:
-
TUV/UL
-
Standard:
-
IEC 62930 / EN 50618:2014
-
Color:
-
Black /Red
-
Packing:
-
100 Meters/roll
-
Warranty:
-
25 Years
Quick Details
-
Insulation Material:
-
XLPO
-
Application:
-
Construction
-
Conductor Material:
-
Tinned Copper
-
Jacket:
-
XLPO
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
Pv1-f, H1z2z2-k
-
Product name:
-
DC solar cable
-
Insulation:
-
XLPE /XLPO
-
Sheath:
-
XLPE /XLPO
-
Rated voltage:
-
600/1000V AC 1500V DC
-
Core:
-
single Core/ twin core
-
Certificate:
-
TUV/UL
-
Standard:
-
IEC 62930 / EN 50618:2014
-
Color:
-
Black /Red
-
Packing:
-
100 Meters/roll
-
Warranty:
-
25 Years
Product Paramenters
Application
The solar cable suitable for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Our solar cable is UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.
The solar cable suitable for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Our solar cable is UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.
Product Description
|
Product name
|
DC Solar Cable
|
|
Certification
|
TUV
|
|
Rated Voltage
|
DC: 1500V / AC: 1.0 kV
|
|
Temperature range
|
-40°C~+90°C
|
|
Max. Temperature at Conductor
|
120℃
|
|
Conductor material
|
Tinned Copper
|
|
Insulation material
|
XLPE(XLPO)
|
|
Flame test standard
|
EN60332-1-2
|
|
Color
|
Red/Black
|
Advantages of solar cable
1
. Double insulation, electron beam cross-linked
2. Excellent resistance to UV, water, ozone, fluids, salt, general Weathering
3. Excellent resistance to abrasion
4. Halogen-free, flame retardant, low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7.
TUV,CE approved
Product Paramenters
|
No. Of cores x Construction
（mm2）
|
Conductor Construction
（n / mm）
|
Conductor No./mm
|
Insulation
Thickness (mm)
|
Current Aarring Capacity (A)
|
|
1x1.5
|
30/0.25
|
1.58
|
4.9
|
30
|
|
1x2.5
|
50/0.256
|
2.06
|
5.45
|
41
|
|
1x4.0
|
56/0.3
|
2.58
|
6.15
|
55
|
|
1x6
|
84/0.3
|
3.15
|
7.15
|
70
|
|
1x10
|
142/0.3
|
4.0
|
9.05
|
98
|
|
1x16
|
228/0.3
|
5.7
|
10.2
|
132
|
|
1x25
|
361/0.3
|
6.8
|
12.0
|
176
|
|
1x35
|
494/0.3
|
8.8
|
13.8
|
218
|
|
1x50
|
418/0.39
|
10.0
|
16.0
|
280
|
|
1x70
|
589/0.39
|
11.8
|
18.4
|
350
|
|
1x95
|
798/0.39
|
13.8
|
21.3
|
410
|
