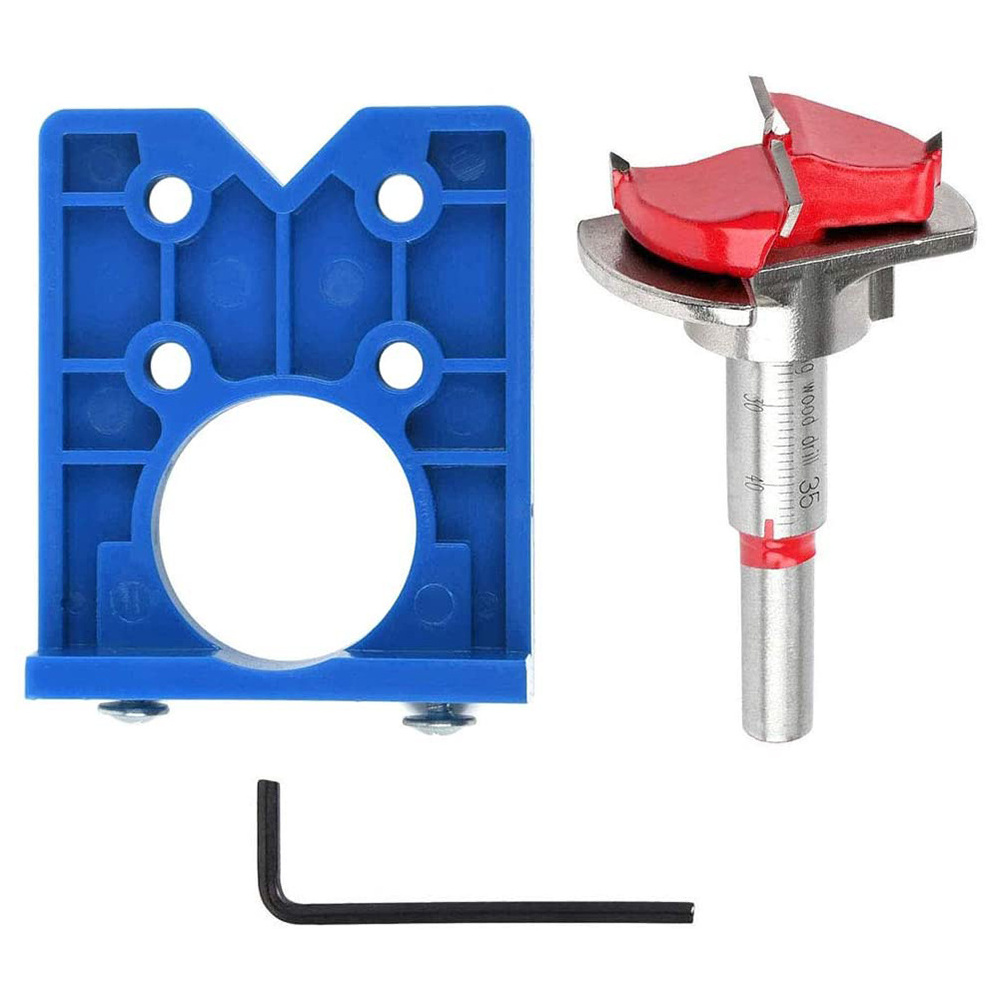

1 X Hinge Opening Positioner
1 X Drill Bit
1 X Hex Wrench
- Product Details
- {{item.text}}
Quick Details
-
OEM:
-
Accepable
-
Package:
-
opp bag
-
weight:
-
135g
Quick Details
-
Place of Origin:
-
jiangsu,china
-
Brand Name:
-
l-first
-
color:
-
blue
-
OEM:
-
Accepable
-
Package:
-
opp bag
-
weight:
-
135g
Product Description
5mm Door Cabinets Hole Locator Template Accurate Woodworking Hinge Drilling Guide Hinge Drill DIY Tool
Feature:
1. The concealed hinge drilling fixture is made of high impact polycarbonate, which is very suitable for drilling.
2. Forstner drill holes in hardwood and hardwood.
3. It is very suitable for cabinet and hinge installation.
4. Suitable for drilling machine, pistol drill, table drill, vertical drill, hand-held electric drill, vertical electric drill and
mobile belt magnetic drill.
Specifications:
Material: ABS plastic, carbon steel and Aluminum alloy
Color: Blue
Aperture: 35mm/1.38''
Drilling depth: 15mm-45mm/0.59-1.77''
Stem diameter: 8mm / 0.32''
Total length: 80mm / 3.1''
Usage Method:
1. Position the hinge cup so that the short plate faces up, fix the screw on the edge of the board, and then drill holes on the
hinge cup.
2. Draw the corresponding center line on the other board, with the short board facing down and the center line aligned with the
inverted triangle, and then drill the positioning hole of the hinge seat.
3. Install the hinge.
4. Adjust the maximum distance of the opener to 0-30 mm.
Feature:
1. The concealed hinge drilling fixture is made of high impact polycarbonate, which is very suitable for drilling.
2. Forstner drill holes in hardwood and hardwood.
3. It is very suitable for cabinet and hinge installation.
4. Suitable for drilling machine, pistol drill, table drill, vertical drill, hand-held electric drill, vertical electric drill and
mobile belt magnetic drill.
Specifications:
Material: ABS plastic, carbon steel and Aluminum alloy
Color: Blue
Aperture: 35mm/1.38''
Drilling depth: 15mm-45mm/0.59-1.77''
Stem diameter: 8mm / 0.32''
Total length: 80mm / 3.1''
Usage Method:
1. Position the hinge cup so that the short plate faces up, fix the screw on the edge of the board, and then drill holes on the
hinge cup.
2. Draw the corresponding center line on the other board, with the short board facing down and the center line aligned with the
inverted triangle, and then drill the positioning hole of the hinge seat.
3. Install the hinge.
4. Adjust the maximum distance of the opener to 0-30 mm.
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Customized support
|
OEM
|
|
Place of Origin
|
jiangsu,china
|
|
Brand Name
|
l-first
|
|
color
|
blue
|
|
OEM
|
Accepable
|
|
Package
|
opp bag
|
|
weight
|
135g
|
Packing & Delivery
opp bag
Included:
