Quick Details
-
Model Number:
-
RL3-421/N-G-2-RE/BK-P8-RS
-
Max. Current:
-
10A
-
Mechanical Life:
-
20000 Cycles
-
Products name:
-

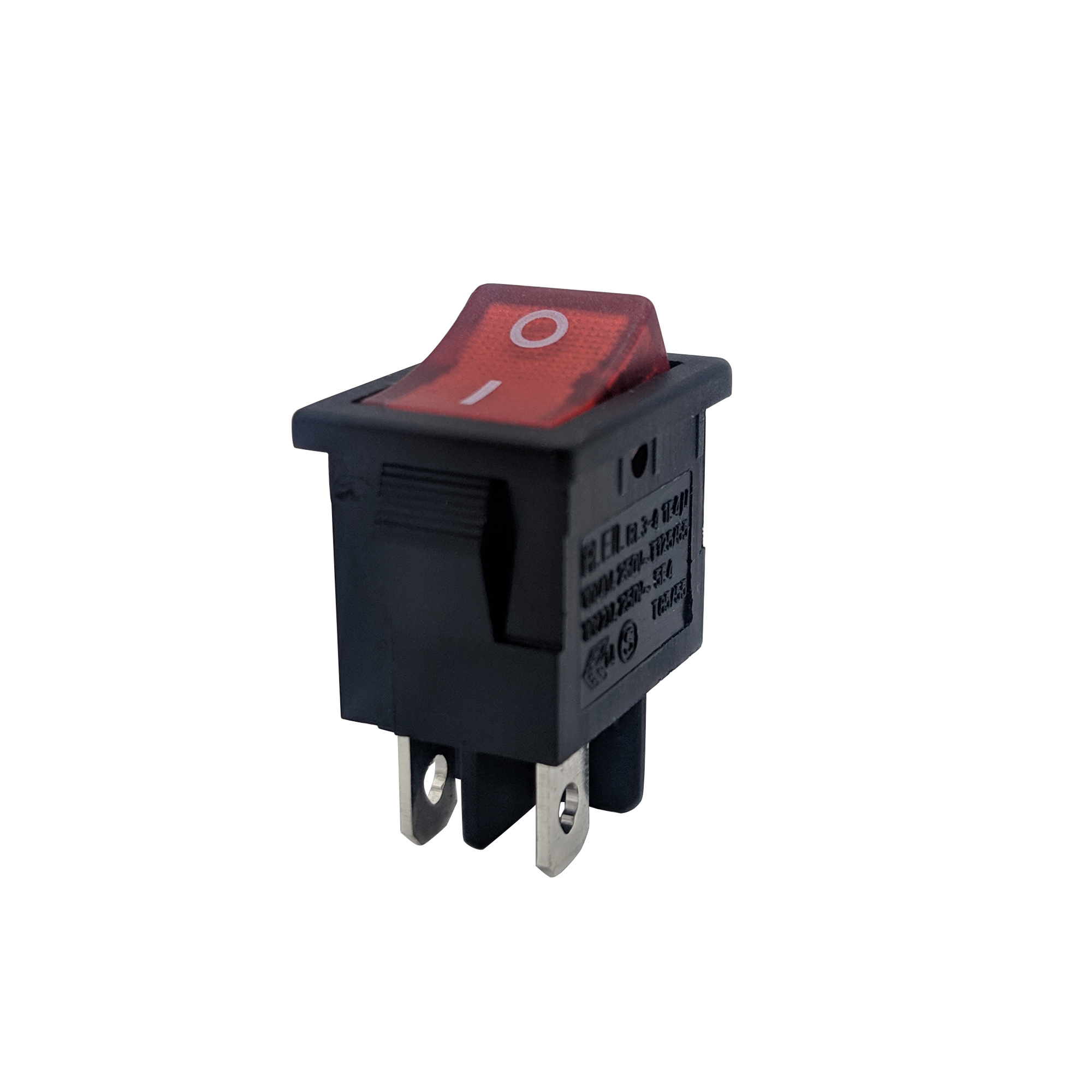

Rocker Switch
-
Function:
-
ON OFF
-
Color:
-
RED
-
Item:
-
Rocker Switch T85 1e4
-
Type:
-
light switch
-
Application:
-
Home Appliance
-
Led color:
-
Red
-
Pins:
-
4 Pin
-
Electrical Life:
-
10000cycles
-
Certification:
-
Optional
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RLEIL
-
Model Number:
-
RL3-421/N-G-2-RE/BK-P8-RS
-
Max. Current:
-
10A
-
Mechanical Life:
-
20000 Cycles
-
Products name:
-
Rocker Switch
-
Function:
-
ON OFF
-
Color:
-
RED
-
Item:
-
Rocker Switch T85 1e4
-
Type:
-
light switch
-
Application:
-
Home Appliance
-
Led color:
-
Red
-
Pins:
-
4 Pin
-
Electrical Life:
-
10000cycles
-
Certification:
-
Optional
Product Description
|
Specifications
|
|
|
Rating Options
|
(G):6（2）A 250VAC T125/55 1E4
10A 125VAC
(H):12(8)A 250VAC T85/55 1E4
16A 125VAC 10A 250VAC 1/3HP
125-250VAC T105
|
|
Circuit
|
ON-OFF SPST
|
|
Contact Resistance
|
30mΩ Max
|
|
Insulation Resistance
|
DC 500V, 100MΩ Min
|
|
Dielectric Strength
|
AC 1500V for 1 minute
|
|
Electrical Life
|
10000 Cycles at full load
|
|
Operating Force
|
500~750gf
|
|
Operating Temperature
|
-25℃~125℃
|
Note:Specifications listed above are for switches with standard options. For more information on custom switches,please feel free to contact us.
