Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
ZCQ
-
Model Number:
-
ZCQ
-
Color:
-
Clear
-
Product Name:
-

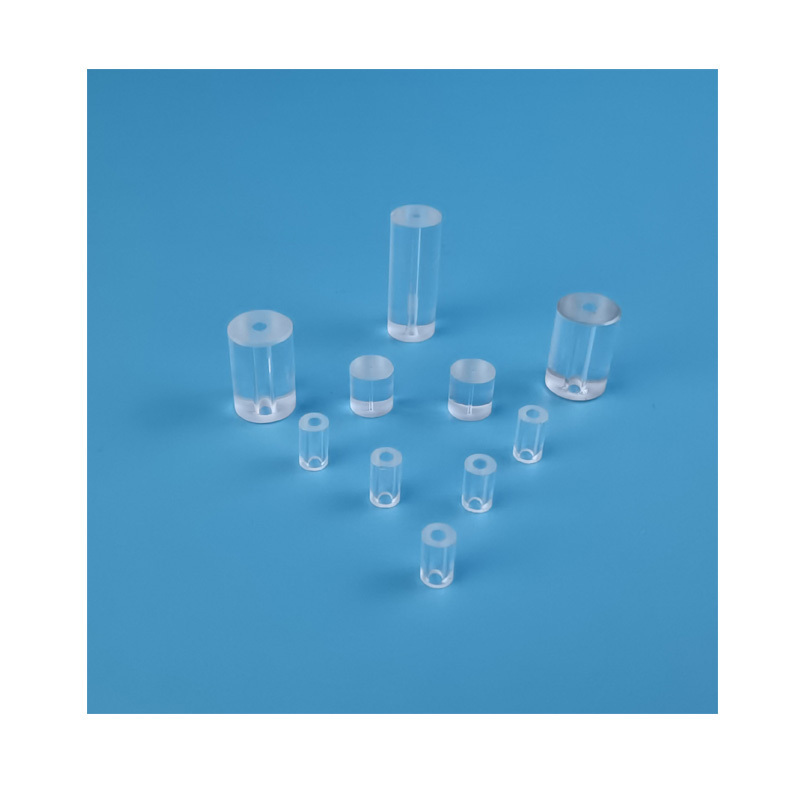

OD 6mm ID 0.7mm Length 3mm to 100mm Capillary Quartz Glass Tube
-
Material:
-
99.99% Pure Quartz
-
Density:
-
2.2g/cm3
-
Package:
-
Carton
-
Size:
-
Customised
-
Work temperature:
-
1200C
-
Annealing Point:
-
1250C
-
Purity:
-
99.999%
-
Processing:
-
Fire Polishing
-
Category:
-
JGS2
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
chemical industry
-
Outside Diameter:
-
0.5-350mm
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
ZCQ
-
Model Number:
-
ZCQ
-
Color:
-
Clear
-
Product Name:
-
OD 6mm ID 0.7mm Length 3mm to 100mm Capillary Quartz Glass Tube
-
Material:
-
99.99% Pure Quartz
-
Density:
-
2.2g/cm3
-
Package:
-
Carton
-
Size:
-
Customised
-
Work temperature:
-
1200C
-
Annealing Point:
-
1250C
-
Purity:
-
99.999%
-
Processing:
-
Fire Polishing
-
Category:
-
JGS2
High Precision Glass Hermetic Sealing Electronic Sleeves
|
Capillary Rectangular Quartz Tube |
|||
|
Parameter |
Diameter |
Tolerance |
Unit |
|
Length |
1~2000 |
±0.05 |
mm |
|
Width |
0.2*0.2 |
±0.01 |
|
|
ID |
0.1*0.1 |
±0.01 |
|
|
Material |
High purity quartz |
||
|
Specification |
Other dimensions and tolerance are based on customers' requirements. |
||
|
Circular Quartz Capillary Tube |
|||
|
Parameter |
Diameter |
Tolerance |
Unit |
|
Length |
1~2000 |
±0.05 |
mm |
|
OD |
Ø0.5~Ø6 |
±0.01 |
|
|
ID |
Ø0.1~Ø5 |
±0.01 |
|
|
Material |
High purity quartz |
||
|
Specification |
Other dimensions and tolerance are based on customers' requirements. |
||
|
Capillary Quartz Rod |
|||
|
Parameter |
Diameter |
Tolerance |
Unit |
|
Length |
1~2000 |
±0.05 |
mm |
|
Dimension |
0.1~5.5 |
±0.01 |
|
|
Dimension |
Ø0.3~Ø6 |
±0.01 |
|
|
Material |
High purity quartz |
||
|
Specification |
Other dimensions and tolerance are based on customers' requirements. |
||
