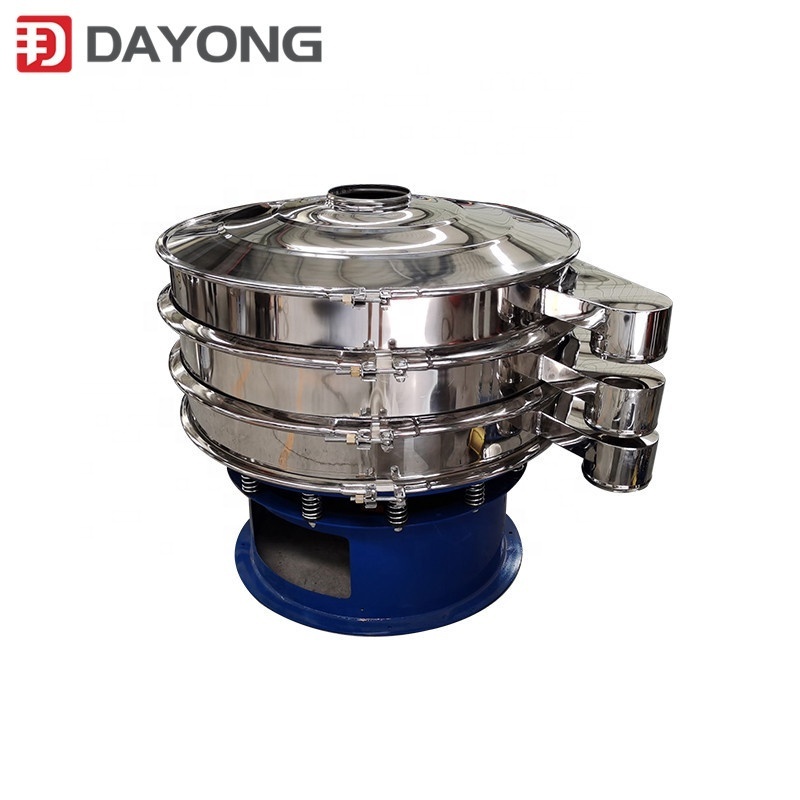

Powder rotary vibrating screen sieve machine/vibro sifter machine/industrial circular vibrating screen

Powder rotary vibrating screen sieve machine/vibro sifter machine/industrial circular vibrating screen

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

≥2 Sets

US $950

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: 650*650*600mm

Weight:: 140 KG

Name:: powder rotary vibrating screen sieve machine

Keyword:: rotary vibrating sifter

color:: as per your need

application:: Chinese and western powder

Mesh Material::: Woven mesh or punching hole mesh

Material:: Stainless steel

Layer:: 1-4 layers

Mesh::: 2-200 mesh

Cleaning system:: Bouncing Ball

Usage:: Separation Screening

Quick Details

Type:: Circular

Place of Origin:: Henan, China

Brand Name:: DY

Voltage:: 380V

Dimension(L*W*H):: 650*650*600mm

Weight:: 140 KG

Name:: powder rotary vibrating screen sieve machine

Keyword:: rotary vibrating sifter

color:: as per your need

application:: Chinese and western powder

Mesh Material::: Woven mesh or punching hole mesh

Material:: Stainless steel

Layer:: 1-4 layers

Mesh::: 2-200 mesh

Cleaning system:: Bouncing Ball

Usage:: Separation Screening

Product Description

Rotary vibrating sieve use a vertical vibrationmotor as vibration source.The upper and lower ends ofthe motor are equipped with eccentric weights to changethe rotary motion of the motor into horizontal,vertical anoinclined three-dimensional motions,and passed to thescreen surface.Adjust the phase angle to change themovement of the material on the screen surface.

Strict inspection principle

* Self inspection
* Mutual inspection
* Special inspection

Strict inspection procedure

* Raw materials inspection
* Parts inspection
* assembly inspection

Main Features

1).Remove the thorn, fine polish, and prevent the handle

2).All our equipment use brand motor(18 months warranty) and bearing.

3).Screen frame, medical grade using double-sided 8K mirror panel, smooth, high cleanlines.

4).The reinforced rubber spring has good elasticity, uniform vibration force and good stability.

5).Swift locking device, easy to operate for cleaning, suitable for food, medicine and other industries.

6).Input reasonable designing, avoid the raw materials outflow.

7).Beam ring buckle with reinforced head, safer, longer life, less deformation, high strength.

8).Output part, the whole plate data cutting, blanking, more solid, good appearance

Product Application

1. Chemical industry : resin, pigment, medicine, grease, paint, palette, etc. powders and particles.

2. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc. powders and particles.

3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. powders and particles.

4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. powders and particles.

5. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc. powders and particles.

6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc. powders and particles.

Technical Parameter

Model	Power(kw)	Valid Diameter of screen(mm)	Volume(mm)	Layers
DY-600-1S DY-600-2S DY-600-3S	0.55kw	550mm	800800680 800800780 800800880	1 2 3
DY-800-1S DY-800-2S DY-800-3S	0.75 kw	750mm	900900780 900900930 9009001080	1 2 3
DY-1000-1S DY-1000-2S DY-1000-3S	1.1 kw	950mm	11601160880 116011601030 116011601180	1 2 3
DY-1200-1S DY-1200-2S DY-1200-3S	1.5 kw	1150 mm	13601360980 136013601160 136013601360	1 2 3
DY-1500-1S DY-1500-2S DY-1500-3S	2.2 kw	1450mm	185018501130 185018501330 185018501550	1 2 3
DY-1800-1S DY-1800-2S DY-1800-3S	3 kw	1750mm	220022001360 220022001460 220022001680	1 2 3

Detailed Images

Machine Parts

Name: vibration motor

Brand: Dayong

Original: China

Motor, wire package is all copper group winding, winding line after dipping paint, vacuum dip paint, insulation good.
The motor shell is made of ball milling cast iron and aluminum shell, all aluminum is fast and light in weight

Main Features

Name: Screen

Brand: Dayong

Original: China

Fully screen with all wonderful parts, ASTM standard sieve mesh size, mother sieve support design, adding the sieve using life, solid screen frame, food grade pu ring and bonucing balls.

Machine Parts

Name: Welding

Brand: Dayong

Original: China

Domestic famous welding draft, good appearance

Main Features

Name: Input view

Brand: Dayong

Original: China

flexible input design, could be designed according to your working site, greatly improve the working effencicy.

Notice:

Our machine could use any industrys.(powder/particles,liquid).
Please tell me your raw material details, we will provide you the suit model.
If you want to know the sieving effencicy, we can test the machine before you place a order
We promise to save your working cost, and bring benefits to you.

Packing & Delivery

Delivery
production	7 days
Delivery	1-2 days
Remark	Actual delivery time will be a little different if you need special design solutions.

Certifications

Our Company

Xinxiang Dayong Vibration Equipment Co., Ltd.

Xinxiang Dayong Vibration Equipment Co., Ltd. is a international manufacturing factory with research and development, design, production and sales services, it is committed to provide customers with reasonable screening, conveying and crushing equipment design solutions.

The company have more than 100 employers, and setted with R & D, technology and other departments, of which graduate students, college education accounted for more than 80%.

The company is located in Henan, Xinxiang province. The main products are divided into: Fine screening equipment; Mining screen equipment;

Conveyor equipment;Crusher. etc.)

The pruducts has passed the ISO9001 quality system and CE certification, and all the equipment fittings are famous brand in China.

The equipment is not only popular in China and have been exported to the United States; Russia; Australia; Britain; Spain; Germany; Japan; Holland; Poland; Turkey; Oman; Philippines; Thailand; Indonesia; Singapore and other countries and regions.
