Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
Chipset:
-
b250, B250
-
FSB / HT:
-
mhz
-
Place of Origin:
-
Guangdong, China
-
Model name:
-
B250
-
Size:
-
281.36*170mm
-
CPU Support:
-
LGA1151 Socket
-
Memory 1:
-
DDR4 SDRAM Memory Slots up to 32G
-
Storage:
-
3*SATA 3.0
-
LAN:
-
Realtek RTL8111H - 1000 LAN Controller
-
Audio:
-
ALC898
-
Operating System:
-
Supports Windows 7/10
-
Warranty:
-
1 Year
Quick Details
-
Maximum Ram Capacity:
-
32GB
-
Application:
-
Desktop / Server
-
Form Factor:
-
ATX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
Chipset:
-
b250, B250
-
FSB / HT:
-
mhz
-
Place of Origin:
-
Guangdong, China
-
Model name:
-
B250
-
Size:
-
281.36*170mm
-
CPU Support:
-
LGA1151 Socket
-
Memory 1:
-
DDR4 SDRAM Memory Slots up to 32G
-
Storage:
-
3*SATA 3.0
-
LAN:
-
Realtek RTL8111H - 1000 LAN Controller
-
Audio:
-
ALC898
-
Operating System:
-
Supports Windows 7/10
-
Warranty:
-
1 Year
kind reminder
Shipping cost shown at billing section may be inaccurate. Please inquire us before placing an order.

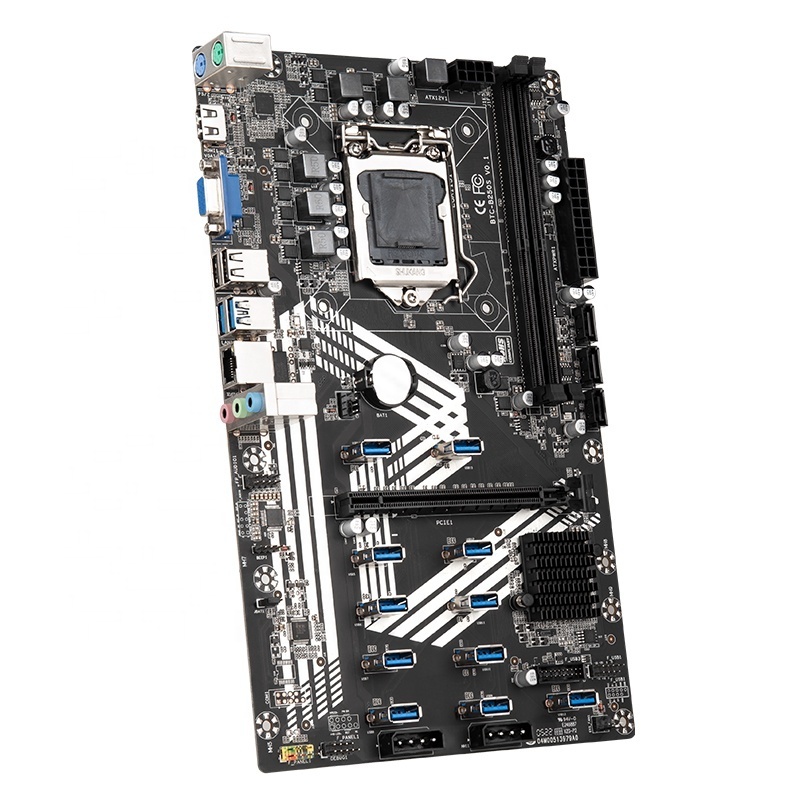

Product Description
|
Part#
|
B250S V0.1
|
|
|
|
|
|
||||||
|
Product Feature
|
|
|
|
|
|
|
||||||
|
For Intel Core /Pentium /Celeron LGA1151 6/7/8 Gen Processor（ Not support 9 Gen CPU）
|
|
|
|
|
|
|
||||||
|
Onboard 1*Realtek ALC662 5.1 Sound Channel Audio Cluster
|
|
|
|
|
|
|
||||||
|
1*PCIE 16X (x16 GEN3）+11*USB3.0（x1 GEN1.1）
|
|
|
|
|
|
|
||||||
|
3*SATA3.0 Port
|
|
|
|
|
|
|
||||||
|
2*DDR4 desktop 2133/2400/2666MHz RAM Slots ( support dual Channel, Not support ECC/REG RAM)
|
|
|
|
|
|
|
||||||
|
Onboard 1*Realtek RTL8111H Gigabit Network (Support Wake on Lan ((WoL) and PXE Boot)
|
|
|
|
|
|
|
||||||
|
4*USB3.0+4*USB2.0 Port
|
|
|
|
|
|
|
||||||
|
Specifications
|
|
|
|
|
|
|
||||||
|
Processor
|
For Intel Core /Pentium /Celeron LGA1151 6/7/8 Gen Processors（ Not support 9 Gen CPU）
|
|
|
|
|
|
||||||
|
Chipset
|
Intel® B250 Chipset
|
|
|
|
|
|
||||||
|
Graphics
|
Onboard core graphics support HDMI/VGA or discret card via PCIE x16
|
|
|
|
|
|
||||||
|
RAM
|
2*DDR4 desktop 2133/2400/2666MHz RAM Slots ( For dual Channel, Not support ECC/REG RAM)
|
|
|
|
|
|
||||||
|
Audio
|
Onboard 1*Realtek ALC662 5.1 Sound Channel Audio Cluster
|
|
|
|
|
|
||||||
|
Network
|
Onboard 1*Realtek RTL8111H Gigabit Network (Support Wake on Lan ((WoL) and PXE Boot)
|
|
|
|
|
|
||||||
|
Storage
|
3*SATA 3.0
|
|
|
|
|
|
||||||
|
USB
|
4*USB3.0+4*USB2.0
|
|
|
|
|
|
||||||
|
SuperIO
|
ITE IT8772E
|
|
|
|
|
|
||||||
|
Extensions
|
1*PCIE 16X （x16 GEN3 Speed）
11*USB 3.0（x1 GEN1.1 Speed） |
|
|
|
|
|
||||||
|
Rear I/O
|
2*USB2.0
1*RJ45 LAN port 1* 5.1 Sound Channel Audio Cluster 1*PS2 (Support PS2 Keyboard+mouse) 1*HDMI-Compatible Port 1*VGA 2*USB3.0 |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Headers
|
1*F_AUDIO Header
1*4PIN Buzzer Header 1*3PIN CLR_CMOS Header 1*F_PANEL Header 1*DEBUG Header 1*CPU_FAN Header 1*SYS_FAN Header 1*F_USB3.0 Header ( Extensible to 2*USB3.0) 1*F_USB2.0 Header (Extensible to 2*USB2.0) 3* Vertical SATA3.0 2*4PIN PCIE Power Supply Connector |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
PSU Solution
|
ATX 24PIN+ATX 8PIN
|
|
|
|
|
|
||||||
|
Dimension
|
281.36MM*170MM
|
|
|
|
|
|
||||||
