export wooden box with good waterproof performance,high pressure resistance and high load bearing performance,safety to ship and good to protect the equipment.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HONAS
-
Model Number:
-
HNS-WS
-
Model:
-
HNS-WS
-
Equipment name:
-
pharmaceutical test chamber
-
Temperature range:
-
-70~150 degree(adjustable)
-
Humidity range:
-
5%~98% RH adjustable
-
Temperature fluctuation:
-
±0.2℃
-
power supply:
-
AC220V 50HZ
-
Humidity fluctuation:
-
±3%RH
-
Max power:
-
8KW
-
Delivery time:
-
Within 30 Days
Quick Details
-
Warranty:
-
1 year, 12 Months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONAS
-
Model Number:
-
HNS-WS
-
Model:
-
HNS-WS
-
Equipment name:
-
pharmaceutical test chamber
-
Temperature range:
-
-70~150 degree(adjustable)
-
Humidity range:
-
5%~98% RH adjustable
-
Temperature fluctuation:
-
±0.2℃
-
power supply:
-
AC220V 50HZ
-
Humidity fluctuation:
-
±3%RH
-
Max power:
-
8KW
-
Delivery time:
-
Within 30 Days

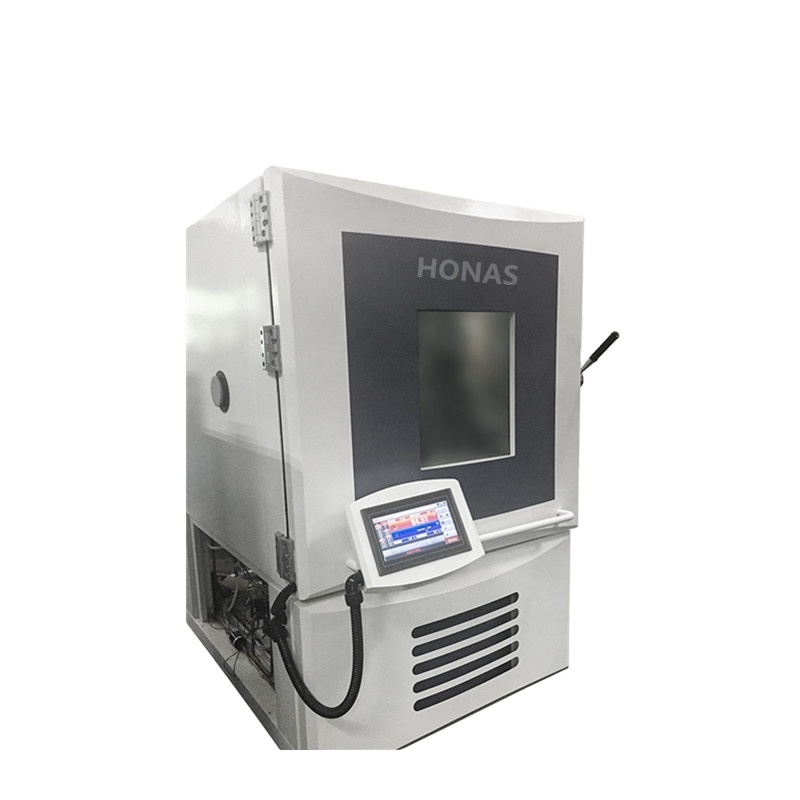

Climatic lab constant low temperature and humidity test chamber
Product Description
Application :
Testing electrical and electronic components and sensors in specific temperature or humidity environments, testing semiconductors, motherboards, LCDS and LEDS, drug stability testing, machinery / military / aerospace engineering, automotive, transportation / automotive industry, chemical / petroleum industry , structural materials / plastics / textile industry, molds, tobacco and alcohol, paint testing, metal-related industry testing, such as: electroplating, as well as moisture permeability testing.
Technical parameter
|
Model
|
HNS-WS100
|
HNS-WS150
|
HNS-WS225
|
HNS-WS408
|
HNS-WS800
|
HNS-WS1000
|
|||||
|
Inner volume
|
100L
|
150L
|
225L
|
408L
|
800L
|
1000L
|
|||||
|
W*H*D(cm)inner size
|
40*50*50
|
50*60*50
|
50*75*60
|
60*85*80
|
100*100*80
|
100*100*10
|
|||||
|
W*H*D(cm)external size
|
60*140*130
|
70*150*130
|
70*165*140
|
80*175*160
|
120*190*165
|
120*190*185
|
|||||
|
Temperature range
|
Low temperature:0℃、-20℃、-40℃、-55℃-60℃、-70℃；high：+150℃、+100℃、+80℃（adjustable）
|
|
|
|
|
|
|||||
|
Humidity range
|
5%~98RH;10%~98%RH; 20%~98%RH
|
|
|
|
|
|
|||||
|
Temperature change rate
|
3℃/min, 5℃/min, 10℃/min,15℃/min, 20℃/min,25℃/min (adjustable)
|
|
|
|
|
|
|||||
|
Temperature fluctuation
|
±0.2℃
|
|
|
|
|
|
|||||
|
Humidity fluctuation
|
±3%RH
|
|
|
|
|
|
|||||
|
Temperature uniformity
|
≤2℃
|
|
|
|
|
|
|||||
|
Humidity uniformity
|
±3%RH
|
|
|
|
|
|
|||||
|
Heating time
|
About 3~4℃/min
|
|
|
|
|
|
|||||
|
Temp.rising speed
|
+10℃→+80℃ 25 min nonlinearity（load testing））
|
|
|
|
|
|
|||||
|
Lead hole
|
2pcs 50mm (customize)
|
|
|
|
|
|
|||||
|
Condenser
|
Air-cooled condenser.
|
|
|
|
|
|
|||||
|
Cooling time
|
About 0.7℃~1.5℃/min (customize , linear or nonlinear )
|
|
|
|
|
|
|||||
|
Cooling method
|
Air or water cooling type
|
|
|
|
|
|
|||||
|
Heating system
|
Stainless steel fin heat pipe heating air way
|
|
|
|
|
|
|||||
|
Materials
|
SUS304 stainless steel
|
|
|
|
|
|
|||||
|
Total power
|
AC380V、50Hz、Three-phase four-wire + protected ground.
|
|
|
|
|
|
|||||
The working principle :
The constant temperature and humidity test chamber consists of two parts: temperature adjustment (heating, cooling) and humidification. The rotating fan is installed in the top of the tank to discharge air into the tank to achieve gas circulation and balance the temperature and humidity in the tank. The data collected by the built-in temperature and humidity sensor of the cabinet is transmitted to the temperature and humidity controller (micro information processor) for editing and processing, and the temperature and humidity adjustment command is issued, and the air heating element, the condensing tube and the heating evaporation table in the water tank are heated. Nothing is done together.
About us
Packing & Delivery
Shipping package
Shipping by air or by sea
1. B y sea : slow but conomy for large equipment, and long times shipping (most about 30days),
2. By air :faster and more expensive for large equipment.
Shipping with express
DHL/ UPS /FEDEX/ TNT/ EMS ECT
FAQ
1.
Can I get a sample from you?
Currently we don't provide free samples, but you can get a paid one.
2.
Which kind of inquiring is preferred?
A quality inquiring help us to quote more effectively.
It should include: A brief self-introduction; Some inquiry details such as product name, standards, quantity, size, etc. But never forget to leave your contact information.
3.
What is the payment terms?
T/T ,Paypal,Western Union,Ali assurance etc
4.
What is the delivery time?
3-7days if in store, big equipment is about 30-60 working days
5.
Can I book a factory tour?
Yes. Please contact us to arrange it.
6.
What is your equipment warranty?
1year,if you need more ,welcome to contact us get more details .
7.
What's your working hours?
8:30~12:00 13:00~19:00 (from Monday to Friday)
