Quick Details
-
Description:
-

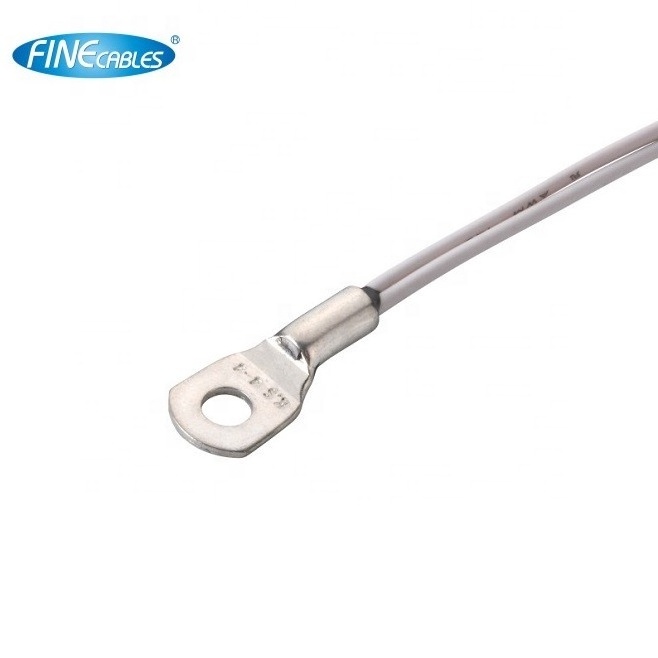

Temperature Sensor FC-NTC-02
-
Temperature Series:
-
NTC
-
Resistance Tolerance:
-
±1%,±3%,±5%,±10%
-
Nominal Resistance R25:
-
100Ω/1KΩ/10KΩ
-
Dissipation Constant:
-
3mW/℃
-
Thermal Time Constant:
-
15s
-
Insulation Resistance:
-
≥ 100 M Ohm at 500VDC
-
Winthstand Voltage:
-
1000VAC for 1 Sec.
-
Probe Material:
-
Stainless Steel SS304; aluminum;Copper;Plastic;Epoxy;Glass
-
Usage:
-
Temperature Sensor
-
Part No.:
-
FC-NTC-14
Quick Details
-
Model Number:
-
Temperature Sensor probe
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Finecables(FC)
-
Description:
-
Temperature Sensor FC-NTC-02
-
Temperature Series:
-
NTC
-
Resistance Tolerance:
-
±1%,±3%,±5%,±10%
-
Nominal Resistance R25:
-
100Ω/1KΩ/10KΩ
-
Dissipation Constant:
-
3mW/℃
-
Thermal Time Constant:
-
15s
-
Insulation Resistance:
-
≥ 100 M Ohm at 500VDC
-
Winthstand Voltage:
-
1000VAC for 1 Sec.
-
Probe Material:
-
Stainless Steel SS304; aluminum;Copper;Plastic;Epoxy;Glass
-
Usage:
-
Temperature Sensor
-
Part No.:
-
FC-NTC-14
Specifications
|
Basic Product Information
|
|
|
|
Connector Series
|
NTC Temperature Sensor
|
|
|
Temperature range
|
-40℃ ~ +125℃
|
|
|
B Constant
|
Available on request
|
|
|
Shell
|
brass alloy
|
|
|
Seal
|
Epoxy Resin
|
|
|
Part No.
|
FC-NTC-02-14
|
|
|
|
|
|
|
General Infomation
|
|
|
|
|||
|
Series
|
NTC(thermistor) Temperature Sensor
|
Dissipation Constant
|
≈3mW/℃
|
|||
|
Resistance Temperature Range
|
-40℃ ~ +125℃
|
Insulation resistance
|
≥100MΩ at 500VDC
|
|||
|
Withstand Voltage
|
1000VAC for 1 sec.
|
Thermal Time Constant
|
≈15s
|
|||
|
End Connector
|
M8/M12 Connector,O-RingTerminal,Housing,Customized
|
Seal
|
Epoxy resin
|
|||
|
IP Rating
|
IP67/IP69K/IP68
|
Certificate
|
CE/ROHS/REACH/IP68
|
|||
