Quick Details
-
Voltage:
-
380V 50HZ
-
Rated Power:
-
3KW
-
Dimension(L*W*H):
-
3880*2150*2000mm
-
Weight (KG):
-
1000 KG
-
Product name:
-
cheap cnc plasma table cutting kits cnc plasma machine
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Color:
-
Customizable
-
Application:
-
Sheet Metal Industry
-
Control system:
-
START Control System
-
Cutting thickness:
-
0-30mm
-
Cutting speed:
-
0-10000mm/min
-
Cutting mode:
-
Plasma Only. Flame
-
Trasmission:
-
XY axis rack gear
-
Guide rail:
-
Taiwan HIWIN square guide rail
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DosingCNC
-
Model Number:
-
DS-1530
-
Voltage:
-
380V 50HZ
-
Rated Power:
-
3KW
-
Dimension(L*W*H):
-
3880*2150*2000mm
-
Weight (KG):
-
1000 KG
-
Product name:
-
cheap cnc plasma table cutting kits cnc plasma machine
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Color:
-
Customizable
-
Application:
-
Sheet Metal Industry
-
Control system:
-
START Control System
-
Cutting thickness:
-
0-30mm
-
Cutting speed:
-
0-10000mm/min
-
Cutting mode:
-
Plasma Only. Flame
-
Trasmission:
-
XY axis rack gear
-
Guide rail:
-
Taiwan HIWIN square guide rail

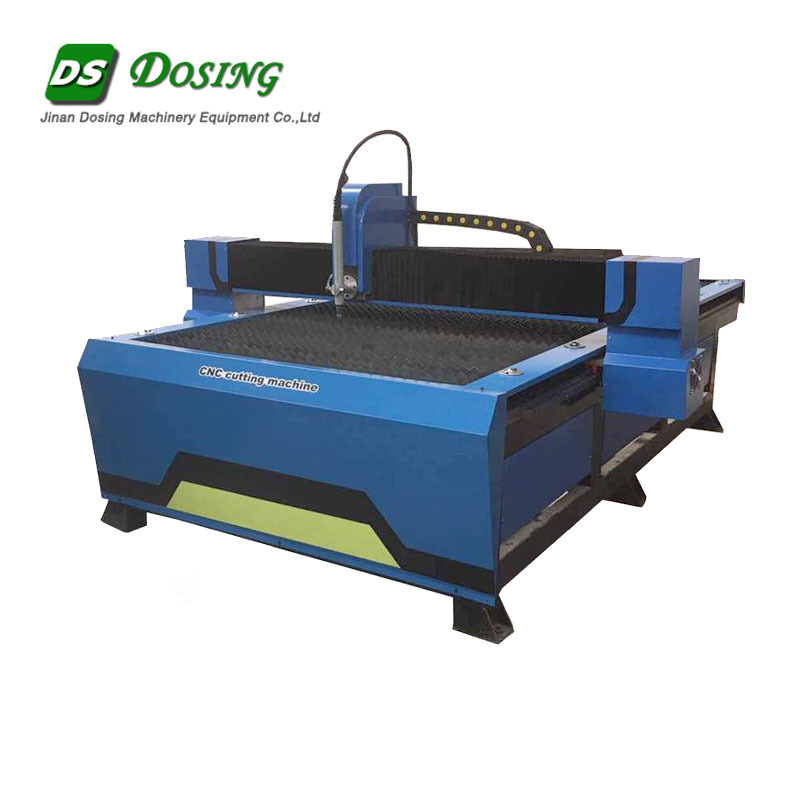

cheap cnc plasma table cutting kits cnc plasma machine
Introduction
1.Welded lathe bed of thick-wall profiled steel, more solid and stable.
2.Reasonable lathe table design, 10mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. steel plates will not be damaged even under raging flame. the level difference of whole double-deck platform remains in 0-1.5mm.
3.Advanced material inclined discharging design, all finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
|
Model |
DS-1530 |
|
Working area (customizable) |
1500*3000mm |
|
Process thickness |
0.5-30mm |
|
Cutting speed |
0-8000mm/min |
|
Traveling speed |
0-5000mm/min |
|
Plasma power |
40A-200A |
|
Plasma source brand |
Huayuan or American Hypertherm |
|
Working voltage |
380V/50HZ |
|
Controller |
Beijing Startfire |
|
Torch Height controller |
Beijing Startfire |
|
Work mode |
Non-contact arc striking |
used for cutting mild steel, iron, aluminum, copper plate, stainless steel etc
>
FAQ
1. I want to buy a china cnc router machine,what suggestion can you give?
For small size,we have 300*400mm, 400*400mm, 600*900mm; for bigger size,we have 1200*1200mm, 1200*2400mm, 1300*2500mm and so on. Customization is also ok.
2. If machine have any problem after I receive it, how can I do ?
Free parts will be sent to you within warranty time, and there is technical
support from our professional engineer. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with
the machine. If there is still any question, we can talk through phone or Skype.
Moreover, you could come to our factory to learn how to use it before
shipment. Our technician will give you professional guidance.
4 .How long can the machine be finished?
Normal, it would be 7-10 days; For non-normal machines or special machines according the client will be within 20 days.
5 .Could you help me to arrange the shipment?
Of cause, we can offer our client FOB,CFR or CIF price,even EXW price. If
possible we can help to arrange the shipment
6. Have you exported to our country?
We have been in this field for 1 0 years,we have CE,CO,ISO certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and others .
