Quick Details
-
Voltage:
-
380v/220v
-
Power:
-
3.75kw, 3/4/7.5kw+0.75kw (vacuum motor)
-
Dimension(L*W*H):
-
1400*600*1100mm
-
Weight:
-
140 kg
-
Product Name:
-
Concrete Floor Grinder
-
Keyword:
-
Hand Push Concrete Grinder
-
Brand:
-
Tatooine
-
Application:
-
Concrete Surface Grinder
-
Grinding Discs:
-
Diamond/Metal/Resin
-
Working Width:
-
330mm/400mm/630mm
-
Model:
-
YM330/YM400/YM630
-
Motor:
-
100% Cooper Wire Motor
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tatoooine
-
Voltage:
-
380v/220v
-
Power:
-
3.75kw, 3/4/7.5kw+0.75kw (vacuum motor)
-
Dimension(L*W*H):
-
1400*600*1100mm
-
Weight:
-
140 kg
-
Product Name:
-
Concrete Floor Grinder
-
Keyword:
-
Hand Push Concrete Grinder
-
Brand:
-
Tatooine
-
Application:
-
Concrete Surface Grinder
-
Grinding Discs:
-
Diamond/Metal/Resin
-
Working Width:
-
330mm/400mm/630mm
-
Model:
-
YM330/YM400/YM630
-
Motor:
-
100% Cooper Wire Motor

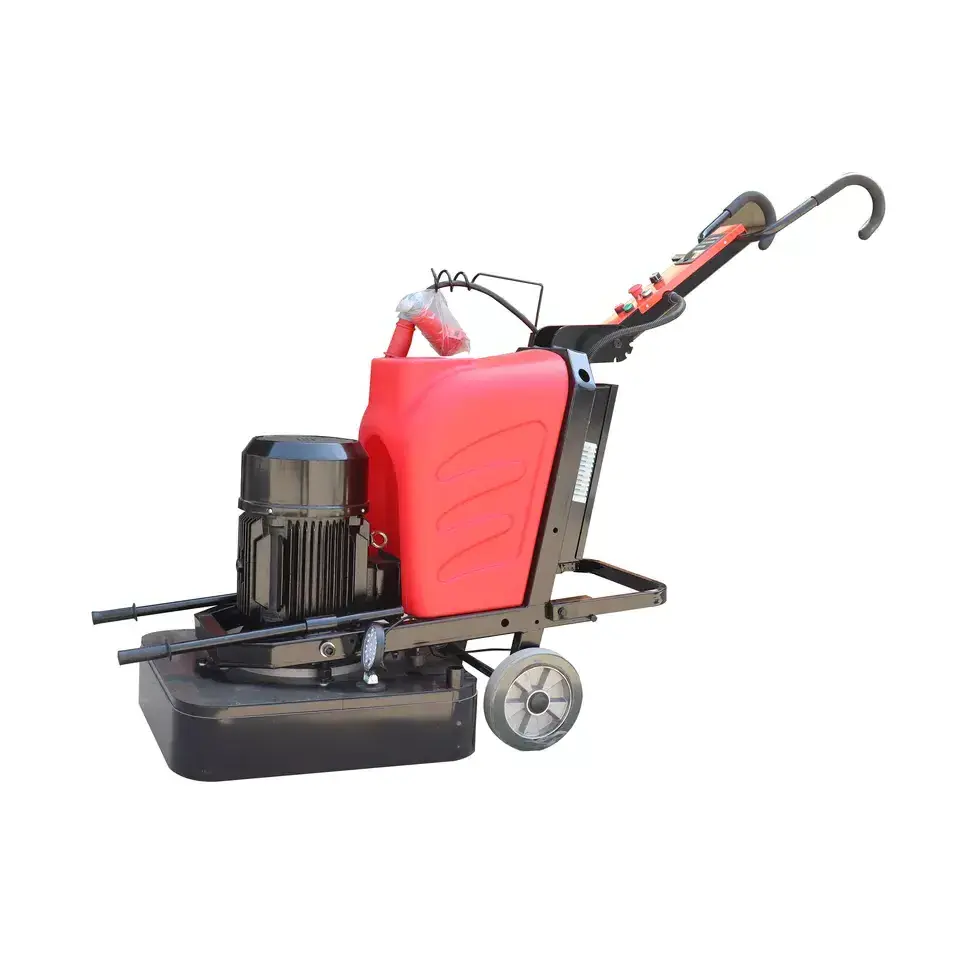

Product Description
The concrete grinder is mainly used for the grinding treatment of large or medium-scale ground. It can effectively grind the concrete surface, epoxy mortar layer and old epoxy floor. It has the characteristics of lightness, flexibility and high work efficiency. With a vacuum cleaner power socket, the vacuum cleaner power cord can be directly connected to the grinder,avoiding
the trouble of needing 2 power cords when working. Equipped with special grinding discs, it can also be used for ground renovation and polishing. It is truly a multi-purpose machine, and it is an ideal equipment for floor engineering treatment.
the trouble of needing 2 power cords when working. Equipped with special grinding discs, it can also be used for ground renovation and polishing. It is truly a multi-purpose machine, and it is an ideal equipment for floor engineering treatment.
Ground Polishing Grinding Machine For Marble Epoxy Floor Low Price Concrete Floor Grinder Terrazzo Floor Grinding Machine
Specification
|
Metric Dimensions Specifications
|
|
|
|
|
|
|||||
|
Model
|
YM 330
|
YM 400
|
YM 630
|
YM 720
|
YM 800
|
|||||
|
Host length
|
1100 mm
|
1400 mm
|
1400 mm
|
1500 mm
|
2200 mm
|
|||||
|
Host width
|
450 mm
|
600 mm
|
600 mm
|
600 mm
|
800 mm
|
|||||
|
Host height
|
980 mm
|
1100 mm
|
980 mm
|
1300 mm
|
980 mm
|
|||||
|
Power
|
3kw+0.75kw (vacuum motor)
|
4kw+0.75kw (vacuum motor)
|
7.5kw frequency conversion
|
15 KW
|
15 kw
|
|||||
|
Working wide
|
330mm
|
400MM
|
630MM
|
720 mm
|
800 mm
|
|||||
|
Weight
|
140KG
|
150KG
|
260KG
|
350 kg
|
450 kg
|
|||||
|
Voltage
|
380V 3PHASE/220V 1PHASE
|
380V 3PHASE/220V 1PHASE
|
380V 3PHASE
|
380V 3PHASE
|
380V 3PHASE
|
|||||
|
Imperial Dimensions Specifications
|
|
|
|
|
|
|||||
|
Model
|
YM330
|
YM400
|
YM630
|
YM 720
|
YM 800
|
|||||
|
Host length
|
43.3''
|
55.12''
|
55.12''
|
59.06''
|
86.61''
|
|||||
|
Host width
|
17.72''
|
23.62''
|
23.62''
|
23.62''
|
31.50''
|
|||||
|
Host height
|
38.58''
|
43.31''
|
38.58''
|
51.18''
|
38.58''
|
|||||
|
Power
|
4 hp+1 hp (vacuum motor)
|
5.5 hp+1 hp (vacuum motor)
|
11 hp frequency conversion
|
20 hp
|
20 hp
|
|||||
|
Working wide
|
13''
|
15.7''
|
24.8''
|
28.3''
|
31.5''
|
|||||
|
Weight
|
309 ib
|
331 ib
|
573 ib
|
772 ib
|
992 ib
|
|||||
|
Voltage
|
380V 3PHASE/220V 1PHASE
|
380V 3PHASE/220V 1PHASE
|
380V 3PHASE
|
380V 3PHASE
|
380V 3PHASE
|
|||||
Product Details
Product Advantages
1. A dust removal device is designed, which can be connected to an industrial vacuum cleaner for dust-free operation.
2. The fuselage provides a special power supply socket for the vacuum cleaner, which avoids the trouble of needing 2 cables during operation, which is convenient, simple and safer.
2. The fuselage provides a special power supply socket for the vacuum cleaner, which avoids the trouble of needing 2 cables during operation, which is convenient, simple and safer.
3. The operation of this machine is stable and reliable, saving labor and effort, and will not damage the quality of the project.
4. Provide coarse, medium and fine diamond grinding discs, users can choose according to different base grinding ground.
4. Provide coarse, medium and fine diamond grinding discs, users can choose according to different base grinding ground.
5. The operation is simple and comfortable, and the labor intensity is low, which greatly reduces the labor and physical expenditure.
Ground Polishing Grinding Machine For Marble Epoxy Floor Low Price Concrete Floor Grinder Terrazzo Floor Grinding Machine
Packing & Delivery
We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient.
