Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNMART
-
Model Number:
-
VM IV 5600W
-
Input Voltage:
-
90-280VAC
-
Output Voltage:
-
230VAC ± 5%
-
Output Current:
-
24.3A
-
Output Frequency:
-
50Hz/60Hz (Auto sensing)
-
Size:
-
115*300*400 mm
-
Certificate:
-
CE
-
Weight:
-
10 kg
-
Name:
-
5.5KW solar inverter 5kw 5kva 5.6KW 5.5KVA MPPT hybrid solar inverter
-
Solar Controller Type:
-
MPPT 48V 120A
-
Surge power (5 seconds):
-
11200VA
-
Waveform:
-
Pure Sine Wave
-
Output power:
-
5600W
-
MAX PV array power:
-
6000W
-
Battery Volatge:
-
48VDC
-
Maximum PV array open circuit voltage:
-
500V
-
MPPT range @ operating voltage:
-
120V -450V
-
Maximum solar charge current:
-
120A
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
93%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNMART
-
Model Number:
-
VM IV 5600W
-
Input Voltage:
-
90-280VAC
-
Output Voltage:
-
230VAC ± 5%
-
Output Current:
-
24.3A
-
Output Frequency:
-
50Hz/60Hz (Auto sensing)
-
Size:
-
115*300*400 mm
-
Certificate:
-
CE
-
Weight:
-
10 kg
-
Name:
-
5.5KW solar inverter 5kw 5kva 5.6KW 5.5KVA MPPT hybrid solar inverter
-
Solar Controller Type:
-
MPPT 48V 120A
-
Surge power (5 seconds):
-
11200VA
-
Waveform:
-
Pure Sine Wave
-
Output power:
-
5600W
-
MAX PV array power:
-
6000W
-
Battery Volatge:
-
48VDC
-
Maximum PV array open circuit voltage:
-
500V
-
MPPT range @ operating voltage:
-
120V -450V
-
Maximum solar charge current:
-
120A

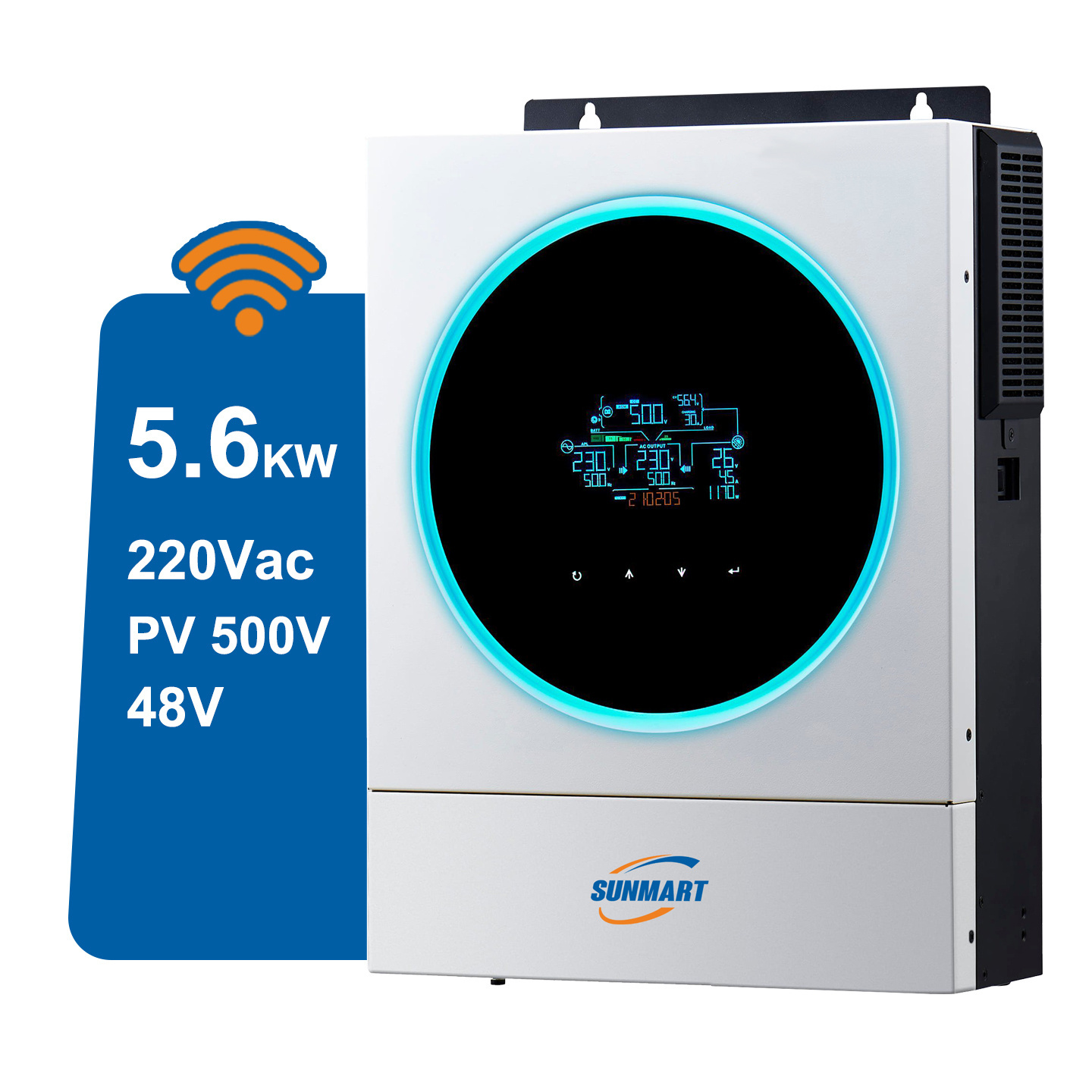

5.5KW solar inverter 5kw 5kva off grid pure sine wave 48V 220V power panel 5.6KW 5.5KVA MPPT hybrid solar inverter
Specifications:
| Model | VM IV 5.6KW |
| RATED POWER | 5600VA/5600W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 11200VA |
| Efficiency (Peak) PV to INT | 97% |
| Efficiency(Peak)Battery to INT | 93% |
| Transfer Time | 15 ms (For Personal Computers) ; |
| 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Max. PV Array Open Circuit Voltage | 500VDC |
| Max. PV Array Power | 6000W |
| MPP Range @operating Voltage | 120~450VDC |
| Max. Solar Charge Current | 120A |
| Max. AC Charge Current | 100A |
| Max. Charge Current | 120A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 115 x 300x 400 |
| Net Weight (kg) | 10 |
| Communication Interface | WiFi/USB/RS232/RS485/Dry-contact |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
Product specification are subject to change without further notice.
Product Details:
Working diagram:
| Three Working Models Selectable option | |
| Utility First |
Utility will provide power to the loads as first priority. Solar and battery energy will provide power to the loads only when utility power is not available. |
| Solar First |
Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same time. |
| SBU Priority |
Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time. Utility provides power to the loads only when battery voltage drops to either low-level warning voltage or the setting point. |
