Quick Details
-
Brand Name:
-
sz
-
Model Number:
-
sz-frp
-
Surface Treatment:
-
smooth
-
Product name:
-
Fiberglass Profile
-
Material:
-
Fiberglass
-
Color:
-
Customized
-
Certificate:
-
ISO 9001
-
MOQ:
-
500m
Quick Details
-
Application:
-
Building
-
Technique:
-
pultrusion
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
sz
-
Model Number:
-
sz-frp
-
Surface Treatment:
-
smooth
-
Product name:
-
Fiberglass Profile
-
Material:
-
Fiberglass
-
Color:
-
Customized
-
Certificate:
-
ISO 9001
-
MOQ:
-
500m
Product Description
Fiberglass I/T/U/C-profiles are widely used as structural components in a variety of industries. Fiberglass T-profiles are strong, lightweight, and corrosion-resistant, making them ideal for outdoor applications. It is commonly used in the construction industry as a support structure for bridges, scaffolding and other structures. The profile has excellent mechanical properties, making it a suitable material for indoor and outdoor structures.
1.High intensity:
Fiberglass L-profiles have a higher strength-to-weight ratio than traditional materials such as steel or aluminum.
They can withstand high loads and impacts without deformation
2.Corrosion Resistance:
3.Lightweight:
Fiberglass H-profiles are much lighter than traditional materials, making them easy to handle, transport and install.
4.Dimensional Stability:
Fiberglass I profiles have excellent dimensional stability, which means they will not warp, bend, twist or otherwise deform under load.
5.Electrical Insulation:
Fiberglass T-profiles have excellent electrical insulating properties, making them ideal for use in electrically sensitive applications.
7.Easy to Install:
Fiberglass C-profiles are easy to cut, drill and install. They require no heavy equipment, welding or painting.
8.Low Maintenance:
Fiberglass square tube profiles require little maintenance during their service life because they will not rust, corrode or degrade under UV light.
|
I/H beam
|
|
|
|
Width/Height/Thickness mm
|
Weight g/m
|
|
|
6×6
|
61
|
|
|
8.5×Φ13
|
175
|
|
|
11×Φ15
|
243
|
|
|
12×15
|
220
|
|
|
12×19
|
270
|
|
|
15×25.4
|
400
|
|
|
15×38
|
626
|
|
|
25×50.8
|
655
|
|
|
30*50
|
620
|
|
|
150×150×10
|
8800
|
|
|
150×150×12
|
11200
|
|
|
200×200×15
|
18500
|
|
|
T beam
|
|
|
|
Spec mm
|
Weight g/m
|
|
|
16×25
|
395
|
|
|
16×30
|
415
|
|
|
66×34×5
|
844
|
|
|

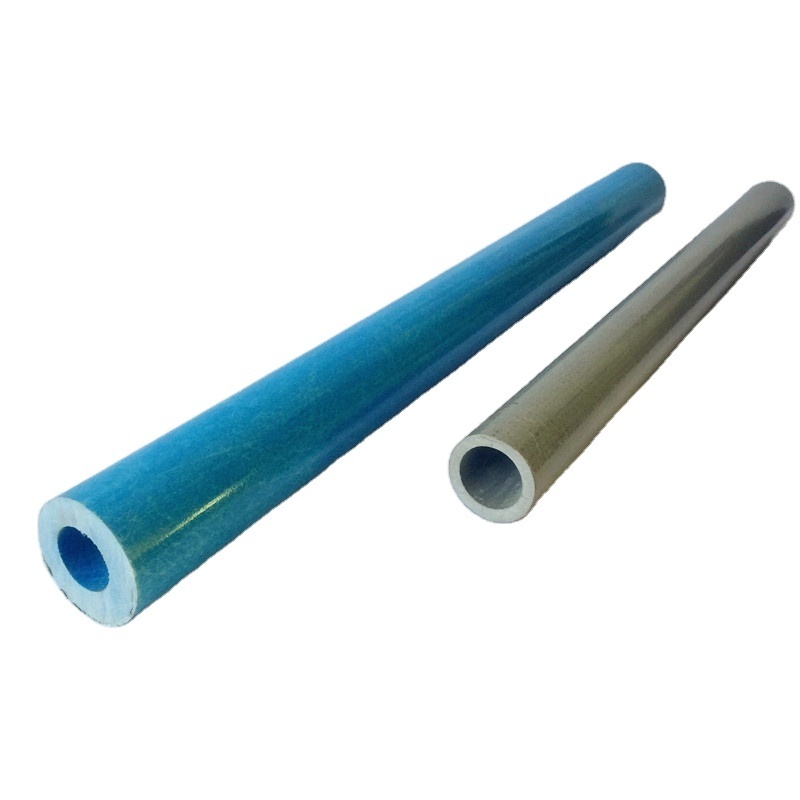

Square Tube/Rod
|
|
|
||
|
Width/Height/Thickness mm
|
Weight g/m
|
|
||
|
50×50×4
|
1450
|
with cap die
|
||
|
50×50×6
|
2000
|
|
||
|
70×70×5
|
2540
|
|
||
|
75×75×6
|
3250
|
with cap die
|
||
|
100×100×5
|
3750
|
with cap die
|
||
|
100×100×6
|
4500
|
with cap die
|
||
|
100×100×10
|
7060
|
with cap die
|
||
|
120×120×7.5
|
6500
|
|
||
|
Rectangular Tube/Rod
|
|
|
||
|
Width/Height/Thickness mm
|
Weight g/m
|
|
||
|
35×20×3
|
540
|
|
||
|
60×30×5
|
1500
|
|
||
|
76×40×5
|
1780
|
|
||
|
90×38×3.8
|
1750
|
|
||
|
100×50×4
|
2300
|
|
||
|
120×80×2.5
|
1900
|
|
||
|
125×75×5
|
3700
|
|
||
|
125×75×2.5
|
1850
|
|
||
|
128×88×4
|
3280
|
|
||
|
170×32×8
|
5800
|
|
||
Raw Material
|
Resin System
|
|
|
|
|
|
|||||
|
Part No
|
Resin Base
|
Application
|
Temperature resistance
|
Corrossion resistance
|
Flame resistance
|
|||||
|
VE
|
Vinyl Ester
|
Superior Corrosion Resistance and fire retardant
|
very Good
|
Excellent
|
very Good
|
|||||
|
ISO
|
Isophthalic Polyester
|
Industrial grade corrosion resistance and fire retardant
|
Good
|
Good
|
Good
|
|||||
|
ORTHO
|
Orthophthalic resin
|
Moderate corrosion resistance and fire retardant
|
Common
|
Common
|
Common
|
|||||
|
Unsaturated polyester resin
|
|
|
|
|
|
|||||
|
E Glass Fiber: All direct roving from JUSHI GROUP
|
|
|
|
|||
FRP Stitched glass fiber mat (E Glass)
FRP Multiaxial fiber (E Glass)
Frp surfacing glass fiber mat (E Glass)
Main Product
Application
Fiberglass Reinforced Plastic (FRP) I/T/U profiles have a wide range of applications in various industries. FRP profiles are known for their durability, lightweight, and resistance to corrosion, which makes them an ideal choice for many applications. Some of the common uses of FRP I/T/U profiles include:
|
1.Construction industry: FRP profiles are widely used in the construction industry for the production of structural shapes,grating, and handrail systems. They offer high strength, are lightweight, and require minimal maintenance, making them acost-effective option for builders and contractors.
|
|
|
|
|
||||
|
2. Electrical industry: FRP profiles are used extensively in the electrical industry for the production of high-temperature insulators, conductor support systems, and cable trays. FRP profiles are also non-conductive and offer a high resistance to heat and chemicals, making them an ideal choice for electrical applications.
|
|
|
|
|
||||
|
3. Marine industry: FRP profiles are commonly used in the marine industry for the production of hulls, decks, and other structural components.this is because they are resistant to corrosion, lightweight, and offer high strength-to-weight ratios.
|
|
|
|
|
||||
|
4. Transportation industry: FRP profiles are used in the transportation industry for the production of trailer floors, truck bodies, and other structural components.they are known for their ease of maintenance and repair and ability to withstand extreme temperatures.
|
|
|
|
|
||||
Packing & Delivery
Packing
Shipping
1.Carton + pallet 1.Waterway transportation
2.Export wooden box 2.air transport
2.Export wooden box 2.air transport
Company Instruction
Qinhuangdao Shengze New Material Technology Co., Ltd. was founded in 2008 with a registered capital of 12 million Yuan. We are a professional manufacturer Pultruded Fiber Glass Reinforced Plastic (FRP) Product for Energy (Oil & Gas & Power UHV), petrochemical industries and special application for the industrial markets and infrastructure facilities.
Our main processing Technic: Protrusion Profile / Fiberglass Sheet, SMC / BMC Molding pressing Products,Hand layup Products/ RTM /Vacuum Infusion Process.
Pultrusion profiles used in UHV (ultra-high voltage) field, which can be used for a long time at a high temperature of 130 ºC, and have no breakdown at a high voltage of 1500KV. We have become a long-term cooperative supplier between State Grid and Southern Power Grid. Also our engineer have over 20 years' experience and professionalize on complicated and high standard performance profiles design and production.
SMC / BMC Molding pressing Products:We are currently the main supplier of CHINA NATIONAL HEAVY DUTY TRUCK GROUP
Pultrusion profiles used in UHV (ultra-high voltage) field, which can be used for a long time at a high temperature of 130 ºC, and have no breakdown at a high voltage of 1500KV. We have become a long-term cooperative supplier between State Grid and Southern Power Grid. Also our engineer have over 20 years' experience and professionalize on complicated and high standard performance profiles design and production.
SMC / BMC Molding pressing Products:We are currently the main supplier of CHINA NATIONAL HEAVY DUTY TRUCK GROUP
We also specialized on customized Box for Power distribution, customized shape parts
Regarding the Handmade Products, we are currently the supplier of Haier, Neusoft, Sinovision's casing of Medical equipment such as MRI / CT .
Regarding the Handmade Products, we are currently the supplier of Haier, Neusoft, Sinovision's casing of Medical equipment such as MRI / CT .
We have the ISO9001, IATF16949 certificate of quality management system.
Main Processing Technic
1. Protruded Profile
2. SMC Moulding Products
3. Hand layup Products
4. Vacuum sorption
Products Advantage
1.High Voltage Protruded profile and Hand Layup Shell
2. Professional engineer with Design support with 24 years experience
3. Customize
Large size
Products.
4. One-stop service (Purchase/ Order / Tranportation )
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes,we could offer Certain sample for free charge but do not pay the cost of freight. Please contact me to confirm.
Q: What is your terms of payment ?
A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance before shippment
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes,we could offer Certain sample for free charge but do not pay the cost of freight. Please contact me to confirm.
Q: What is your terms of payment ?
A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance before shippment
If you have another question, pls feel free to contact us as below:
