Quick Details
-
Dimensions(L*W*H):
-
4.2x2x2.4m
-
Weight:
-
4000 KG
-
Print Dimension:
-
960
-
speed:
-
50m/min
-
easy operation:
-
yes
-
material:
-
PE,nonwoven fabric,paper
-
machine:
-
Four Color Flexo Printing Machine For Sale
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOQIANG
-
Voltage:
-
220/380V
-
Dimensions(L*W*H):
-
4.2x2x2.4m
-
Weight:
-
4000 KG
-
Print Dimension:
-
960
-
speed:
-
50m/min
-
easy operation:
-
yes
-
material:
-
PE,nonwoven fabric,paper
-
machine:
-
Four Color Flexo Printing Machine For Sale
YTB-41000 High Speed PVC UV Stack PE Label Paper and Plastic Film Bag 2 6 8 4 Colour Flexographic Printing machine
1.Feature:
1.1 Ink Roller :With the Ceramic roller by 100LPI-1000LPI, high speed dot reproduction rate,
screen printing, structure three–dimensional sense of strong ,registering accurately
1.2 Ink :Adopt the automatic circle system ,running ink by single small motor
1.3 Timing :Adopt Japanese inverter controlled ,running by small fluctuations
1.4 Unwind EPC :adopt the high quality automatic EPC controller device
1.5 Unwind and rewind way : adopt the magnetism Auto tension controller.
1.6 Ink way :our company has special design for the doctor blade device with the ink pump can suck the ink automatically
1.7 Up and down plate :adopt the hydraulic pressure rising and down the printing plate automatically
1.8 Roller :adopt the special steel processing ,and through the special technique treatment , and plating thickness of 10 silk protective layer of hard chromium, beat the following in the 0.02mm
1.9 Traction Rollers : adopt Japanese production of small semi-enclosed bearing, static equilibrium and dynamic levels do cross-processing, hard oxidation treatment, resistance, beating a small
1.10 Drying device: ventilation with heat blowing three devices, which use a central heating temperature control system and the control each group
1.11 Body: thick wall (75mm), longer bridges, thick base, making the machine more stable.
2.Main Specification
|
2.1 Main Parameter |
|
|
Model |
YTB-41000 |
|
Max Width of Material |
1000mm |
|
Max.Width of Printing |
960mm |
|
Material |
Non-woven fabric:15-120g,Paper:15~400g/m2 Aluminum foil:30~150μm,Woven Fabric Material:15-500g/m2,PVC:15~120μm,OPP:10~100μm, BOPP:10~100μm,PE:15~150μm,NY:15~120μm, PET:15~100μm,CPP:15~100μm |
|
Printing color |
4 colors |
|
Max.Length of Printing |
200-1100mm |
|
Machinery mechanical speed |
10-90m/min |
|
Max.Speed of Material Printing |
10-70m/min |
|
Thickness of Plate |
2.38mm |
|
Total power |
32kw |
|
machine weight |
5000Kg |
|
machine dimension |
5.2m×2.6m×2.8m |
|
Power condition |
Voltage:380V,3PH,50HZ |
|
2.2 Unwind Unit |
|
|
Max.Length of Roller |
1000mm |
|
Max.Width of Printing |
960mm |
|
Max.Dia. of Unwind |
1000mm |
|
Type of Unwind |
auto tension with magnetic powder |
|
Unwinder Magnetism device |
5kg |
|
Auto Tension Controller Unwinder |
2—20kg |
|
Unwinder EPC |
Electrical Edge Correction Device |
|
Feeding shaft |
Air shaft |
|
Axis core diameter |
76mm |
|
2.3 Traction Unit |
|
|
Constitution of Traction |
Aluminum roller, Chrome plated Roller |
|
Traction Zones |
4 Zones |
|
2.4 Printing Unit |
|
|
Constitution of Printing |
Anilox roller, Rubber roller, Chrome plated roller, Version roller Resin version, Scraper |
|
Girth of Pressing Roller |
200-1100mm |
|
Material of Plate |
Resin or Rubber |
|
Principle of Work |
Gears Drive |
|
Adjusting of Register |
Manual |
|
Overprint Precision(mm) |
Horizontal:+-0.15mm,Vertical:+-0.2mm |
|
Plated-glued roller adjusting |
hydraulic type of plate-cylinder |
|
Anilox Roller |
Ceramic Anilox Roller:1 pcs/per color |
|
Rubber rollers |
1 pcs/per color |
|
Scraper |
Ordinary |
3. picture showroom:
A. print unit
B.printing side picture

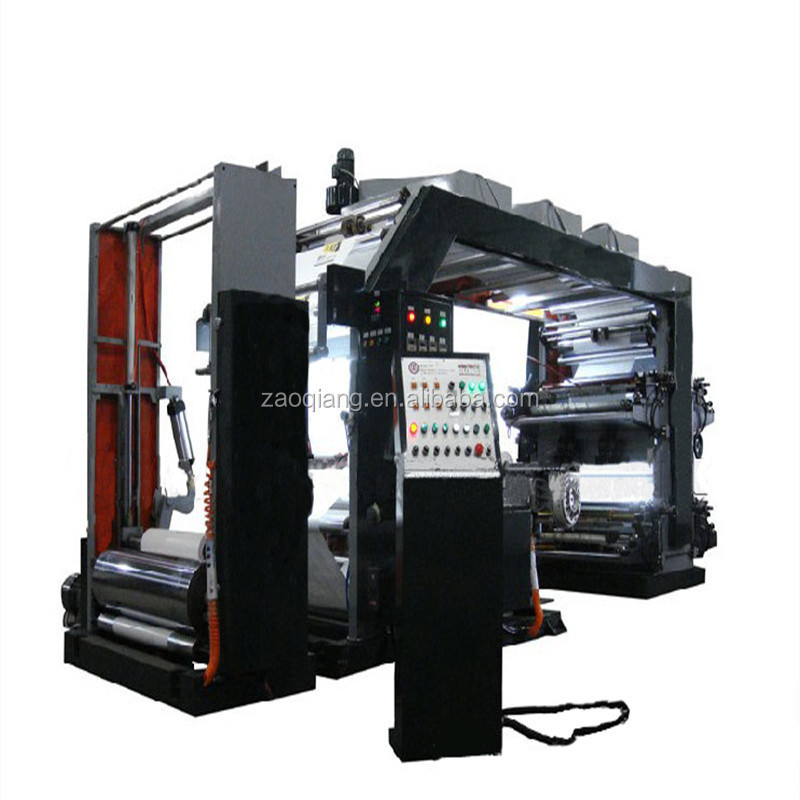

B.whole machine picture show
