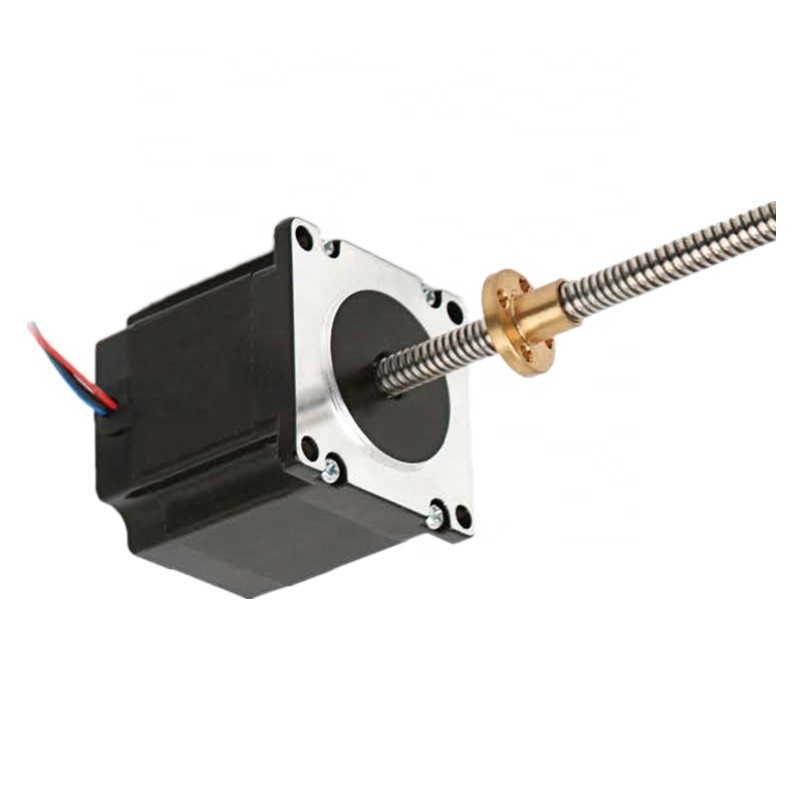

High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor
High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor
High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor
High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor
High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor
High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor
High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor
High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor

High Torque Nema 23 2.8Nm Micro Linear Actuator Stepping Motor

FOB Reference Price: Get Latest Price
≥10 Sets
US $95
≥100 Sets
US $92
≥1000 Sets
US $79
≥10000 Sets
US $67.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
SHENLI
Model Number:
Nema23-57mm
Current / Phase:
2.8~5A
Product name:
nema23 Linser Stepping Motor
Key words:
Linear Screw Stepper Motor
Application:
Robot
Frame Size:
57*57mm
Insulation Resistance:
DC 500V)
Motor length:
41~112mm
Dielectric strength:
500V AC 1minute
Temperature rise:
80 Max
Sample:
Welcomed
Ambient Temperature:
20 ~ +50°C

Quick Details

Phase:
2
Type:
Hybrid
Place of Origin:
Guangdong, China
Brand Name:
SHENLI
Model Number:
Nema23-57mm
Current / Phase:
2.8~5A
Product name:
nema23 Linser Stepping Motor
Key words:
Linear Screw Stepper Motor
Application:
Robot
Frame Size:
57*57mm
Insulation Resistance:
DC 500V)
Motor length:
41~112mm
Dielectric strength:
500V AC 1minute
Temperature rise:
80 Max
Sample:
Welcomed
Ambient Temperature:
20 ~ +50°C
Our Advantages

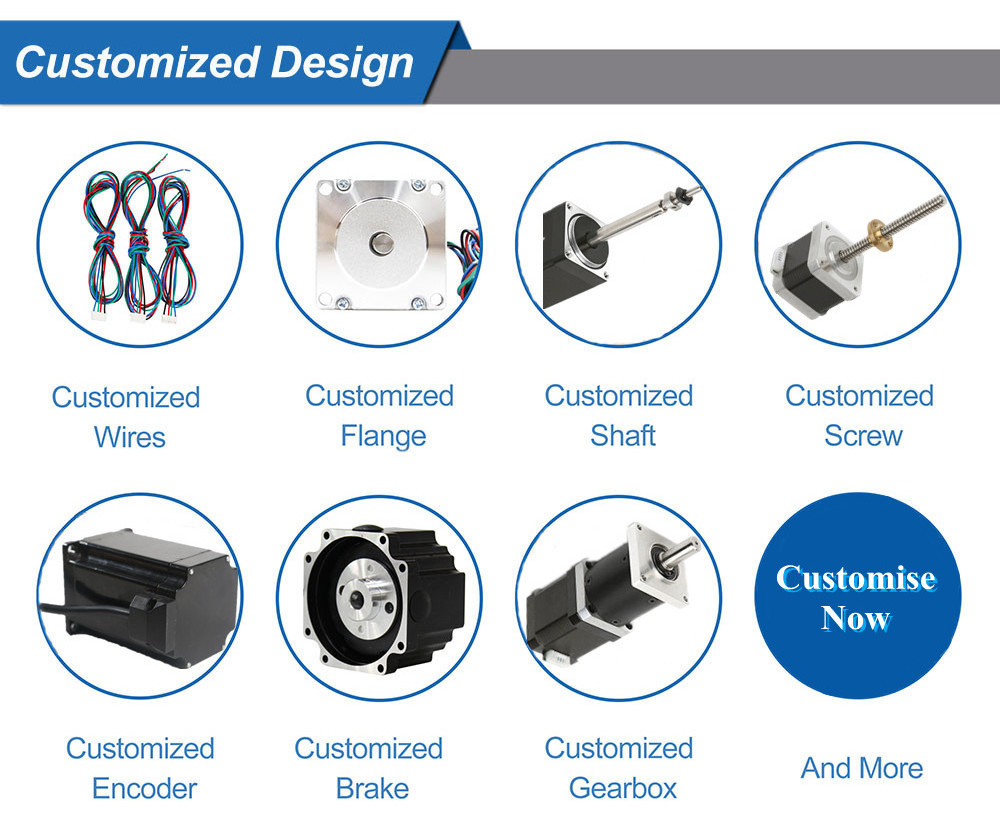

Online Customized
Feature at a glace
Nema23 Linear Screw Stepper Motor Feature
*High Precision
* Large output torque
* High speed.
* Small heating
* Low noise
* High efficiency
* Stable and fast stop at high speed
*Smooth operation without zero speed oscillation, low vibration noise.
*Quick response, suitable for frequent start-stop occasions.
Details Images

Silicon steel rotor

Adopt imported silicon steel to forging finely, each rotor outer edge through polish finely, polished finished, ensure each gear groove is smooth.Make the motor stable operation, lower noise, longer life, will not appear stuck phenomenon.

Motor coil

Adopt copper enameled wire, can be withstand high temperature about 150°
Automatic intelligent winding equipment, arrangement uniform, lower heat up, long time carrying stability does not lose step

Precision parts

Adopt aluminum alloy flange, good heat dissipation effect, high accuracy of inner hole, Stable operation
Products Description
Two-phase, three-phase and five-phase hybrid stepper motors are made of high-temperature resistant permanent magnets and high-quality cold-rolled steel sheets. The product specifications cover 20mm--150mm. It has the characteristics of low noise, low vibration and low heating, and high reliability and stability. And, because of its good internal damping, smooth operation, no obvious oscillation area, can meet the use of different conditions in the automation industry. Shenli motor adopts the latest patent technology to develop the stepper driver, better solve the traditional stepper motor low-speed climbing, high speed torque is small, low start frequency characteristics, with some characteristics of AC servo, its control effect can be comparable with the imported products.
Nema23 Linear Screw Stepper Motor Eneral Specifations
No
Item
Data
No
Item
Data
1
Step Angle
1.8°
10
Step Angle Error
±5%
2
Motor Length
41~112mm
11
Temperature Rise
80℃
3
Rated Current
2.8~5A
12
Insulation resistance
100 MΩ， min 500V DC
4
Phase Resistance
0.4~0.7Ω
13
Insulation dielectric strength
600V AC 1Min.
5
Phase Inductance
1.4~3.2mH
14
Service Environment Temperature
-20℃ ~ +55℃
6
Holding Torque
0.6~2.8Nm
15
Service Environment Humidity
< 85% RH
7
Dentent Torque
2.5~8.8N.cm
16
Axial Clearance
1mm Max
8
Lead Wirse
4(4/6/8)
17
Shaft Axial Play
0.02mm Max
9
Weight
0.5~2.2KG
18
Step Angle（can chose）
0.36~1.8°
Nema23 Linear Screw Stepper Motor Drawing
Nema 23 Linear Screw Stepper Motor Detail Parameters
Nema23 Linear Screw Stepper Motor Torque-Speed C haracteristics
Stepper Motor Wiring Diagram
Product packaging
