Quick Details
-
Model Number:
-
WB
-
chain name:
-
dia forging chain
-
application:
-
industrial cement
-
conveyor chain type:
-
conveyor chain with attchment
-
OEM or not:
-
Could OEM size
-
heat treatment:
-
all the chain parts undergo heat treatment
-
Color:
-
black & gray yellow
-
chain process:
-
drop forged
-
detachable:
-
easy
-
Delivery in time:
-
on time
-
size&capacity:
-
pls reference to the form
Quick Details
-
Structure:
-
Combined Chain
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gelin
-
Model Number:
-
WB
-
chain name:
-
dia forging chain
-
application:
-
industrial cement
-
conveyor chain type:
-
conveyor chain with attchment
-
OEM or not:
-
Could OEM size
-
heat treatment:
-
all the chain parts undergo heat treatment
-
Color:
-
black & gray yellow
-
chain process:
-
drop forged
-
detachable:
-
easy
-
Delivery in time:
-
on time
-
size&capacity:
-
pls reference to the form

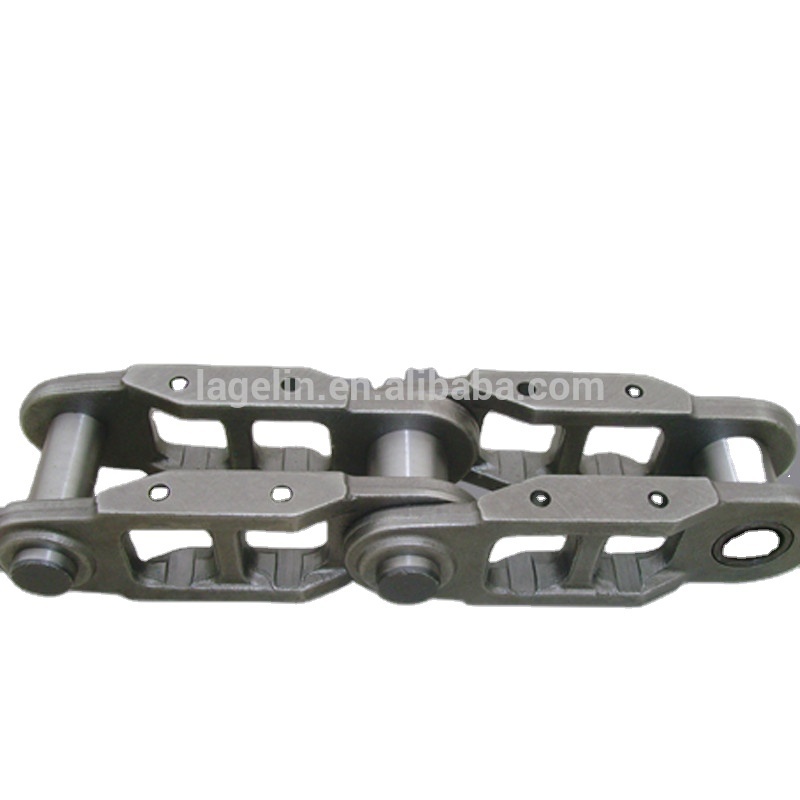

WB drop forged heavy duty apron feeder chain for coal mine
This kind of conveyor is specially designed for conveying materials into the crusher for further crushing.
Apron Feeder
Model WB series of apron feeders developed by our company are used to horizontally or inclinedly convey various lumpy or loose materials from warehouse to crusher or other machinery, and are widely used in the industries of mining and cement etc.. This machine has features of compact and reasonable structure, stable performance, good speed-adjusting performance and no spillage and leakage of materials. Its index of main technical performance and guaranteed index of service life are up to the leading level of domestic same kind of products(Its length can be determined according to the process design). This machine is a recommended product appointed by Cement Association of National Building Materials Bureau.
Main Technical Data
|
Model |
Width (mm) |
Inclination (º) |
Speed (m/s) |
Feed Size (mm) |
Capacity (t/h) |
|
WB800×M |
800 |
0-25 |
0.014-0.14 |
≤350 |
20-80 |
|
WB1000×M |
1000 |
0-25 |
0.014-0.14 |
≤600 |
40-120 |
|
WB1250×M |
1250 |
0-25 |
0.014-0.14 |
≤700 |
40-200 |
|
WB1400×M |
1400 |
0-25 |
0.014-0.14 |
≤700 |
40-250 |
|
WB1500×M |
1500 |
0-25 |
0.014-0.14 |
≤800 |
40-300 |
|
WB1600×M |
1600 |
0-23 |
0.014-0.14 |
≤800 |
40-320 |
|
WB1800×M |
1800 |
0-23 |
0.014-0.14 |
≤900 |
40-600 |
|
WB2000×M |
2000 |
0-23 |
0.014-0.14 |
≤1000 |
40-800 |
|
WB2200×M |
2200 |
0-23 |
0.014-0.14 |
≤1100 |
40-1000 |
|
WB2300×M |
2300 |
0-23 |
0.014-0.14 |
≤1200 |
40-1200 |
|
WB2400×M |
2400 |
0-23 |
0.014-0.14 |
≤1200 |
40-1400 |
|
WB2500×M |
2500 |
0-23 |
0.014-0.14 |
≤1500 |
40-1600 |
|
WB3000×M |
3000 |
0-23 |
0.014-0.14 |
≤1800 |
500-2000 |
Note: Length “M” will be determined as per the design process of the apron feeder, “M”=2.5-40M.
packaging details : a apron feeder chain + a poly bag + individual box + a wooden case
Delivery Details:
1. GELIN chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
