Quick Details
-
Power:
-
18.35-30.85kw
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
3000*2500*3000mm
-
Name:
-
Mini Automatic Rice Mill Plant Parboiled Rice Mill Machine
-
Application:
-
Rice Milling Industry
-
Model:
-
NZJ15
-
Material:
-
Carbon Steel
-
Dimension:
-
3000*2500*3000 mm
-
Production capcity:
-
600-900kg/h
-
Rate of making rice:
-
(%): 68-72
-
Installation:
-
KODI service
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KODI
-
Voltage:
-
220V-460V
-
Power:
-
18.35-30.85kw
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
3000*2500*3000mm
-
Name:
-
Mini Automatic Rice Mill Plant Parboiled Rice Mill Machine
-
Application:
-
Rice Milling Industry
-
Model:
-
NZJ15
-
Material:
-
Carbon Steel
-
Dimension:
-
3000*2500*3000 mm
-
Production capcity:
-
600-900kg/h
-
Rate of making rice:
-
(%): 68-72
-
Installation:
-
KODI service
Product Description

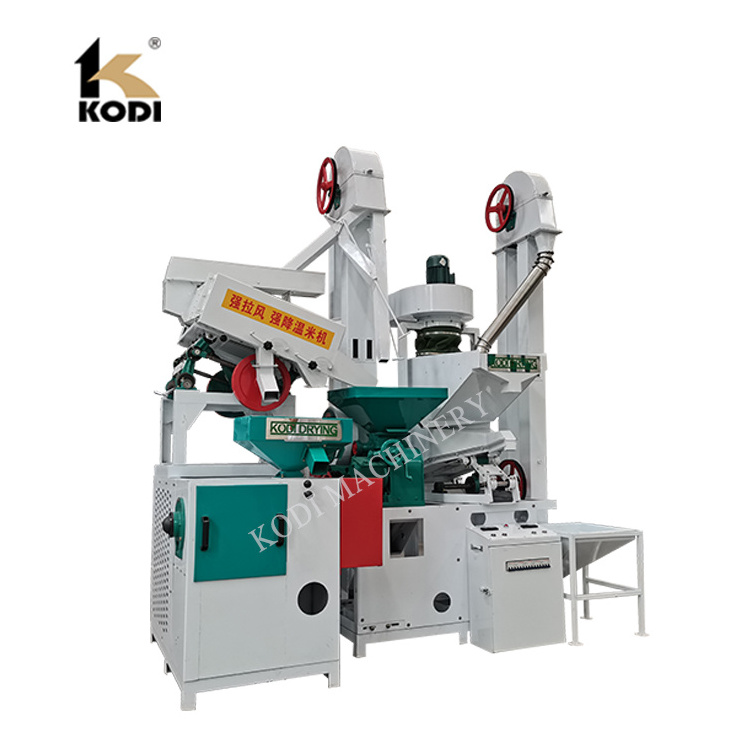

Rice Mill Machine Description
NZJ15/15ⅢAG-5 rubber roll combined rice husking and milling machine is a special equipment for processing paddy into rice, upgraded debris sieves and the milling chamber are significantly improved the cleanup function and the quality of rice. The machine is composed of cleaning sieve, stone removing machine, grain hulling machine, grain separation sieve, rice milling machine, elevator, electrical control box and fan.
NZJ15/15ⅢAG-5 rubber roll combined rice husking and milling machine is a special equipment for processing paddy into rice, upgraded debris sieves and the milling chamber are significantly improved the cleanup function and the quality of rice. The machine is composed of cleaning sieve, stone removing machine, grain hulling machine, grain separation sieve, rice milling machine, elevator, electrical control box and fan.
Rice Mill Machine Application
It is a new type whole set combined rice mill for processing rice in farmlands, towns, grain shop and specialized households, and it can improve milling precision of rice according to the demands of users by adding some follow-up equipment, like polisher, color sorter and rice packing machine.
Rice Mill Machine Working Principle
NZJ15/15ⅢAG-5 Complete Set Combined Rice Mill Machine is able to clean, de-stone, husk, separate, mill and grade at the same time.Our machine can also work with the high-quality mist polisher, color sorter and auto packing machine to be a whole automatic rice line, save both time and labor for the producer.
It is a new type whole set combined rice mill for processing rice in farmlands, towns, grain shop and specialized households, and it can improve milling precision of rice according to the demands of users by adding some follow-up equipment, like polisher, color sorter and rice packing machine.
Rice Mill Machine Working Principle
NZJ15/15ⅢAG-5 Complete Set Combined Rice Mill Machine is able to clean, de-stone, husk, separate, mill and grade at the same time.Our machine can also work with the high-quality mist polisher, color sorter and auto packing machine to be a whole automatic rice line, save both time and labor for the producer.
Specification
|
Technical Parameters
Types and Specification |
Capacity
(kg/h) |
rice milling yield
(%) |
broken rice rate
(%) |
Power
(kw) |
Weight
(kg) |
Dimensions
(mm) |
|
NZJ15/15IIIAG-5
|
600-900
|
68-72
|
2
|
23.85
|
1000
|
3000*2500*3000
|
|
NZJ20/15
|
1000-1200
|
68-72
|
2
|
29.2
|
1500
|
3000*2700*3200
|
|
Parts for NZJ15/15III AG-5
|
|
|
||
|
Serial No.
|
Name
|
Quantity
|
||
|
1
|
Rubber Roller
|
10
|
||
|
2
|
Emery Roll
|
2
|
||
|
3
|
Huller Blade
|
3
|
||
|
4
|
Bran Fan Impeller
|
2
|
||
|
5
|
Winnowing Pan
|
200
|
||
|
6
|
Semi-circle Rice Sieve
|
20
|
||
|
7
|
Screw Propeller
|
2
|
||
|
8
|
Iron Bar
|
40
|
||
|
9
|
Shock Pad
|
8
|
||
|
10
|
Bearing 206
|
1
|
||
|
11
|
Bearing 304
|
1
|
||
|
12
|
Bearing 208
|
1
|
||
|
13
|
Bearing 309
|
1
|
||
|
14
|
Bearing 205
|
1
|
||
|
15
|
V- Belt
|
1
|
||
|
Quantity only for reference , determined by the actual processing quantity
|
|
|
||
