Quick Details
-
Graphic Format Supported:
-
BMP, JPG
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FUNDAR
-
Dimension(L*W*H):
-
19*14.5*16CM
-
Weight (KG):
-
3.5 KG
-
Material:
-
Acrylic + Aluminum + Stainless Steel
-
Main Color:
-
Black
-
Power:
-
3000mW
-
Laser Wave Length:
-
445nm
-
Image Format:
-
bmp\ jpg \png etc
-
Image Size:
-
490 * 490 pixels / 0.075mm point distance
-
Image Engraving Pattern:
-
Bitmap Engraving
-
Support System:
-
Win7 / Win8 / XP / Win10
-
Supply Voltage:
-
5V2A
-
Item Size:
-
16 * 14.5 * 19cm / 6.30 * 5.71 * 7.48in
-
Marketing Type:
-
New Product 2021
Quick Details
-
Engraving Area:
-
38*38*70mm
-
Laser Type:
-
Diode
-
Engraving Speed:
-
0-120
-
Graphic Format Supported:
-
BMP, JPG
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FUNDAR
-
Dimension(L*W*H):
-
19*14.5*16CM
-
Weight (KG):
-
3.5 KG
-
Material:
-
Acrylic + Aluminum + Stainless Steel
-
Main Color:
-
Black
-
Power:
-
3000mW
-
Laser Wave Length:
-
445nm
-
Image Format:
-
bmp\ jpg \png etc
-
Image Size:
-
490 * 490 pixels / 0.075mm point distance
-
Image Engraving Pattern:
-
Bitmap Engraving
-
Support System:
-
Win7 / Win8 / XP / Win10
-
Supply Voltage:
-
5V2A
-
Item Size:
-
16 * 14.5 * 19cm / 6.30 * 5.71 * 7.48in
-
Marketing Type:
-
New Product 2021
NEJE 2019 hot selling new 3000mw 445nm Ai laser engraver Wood Router DIY Desktop Laser Cutter Printer Engraver Cutting Machine

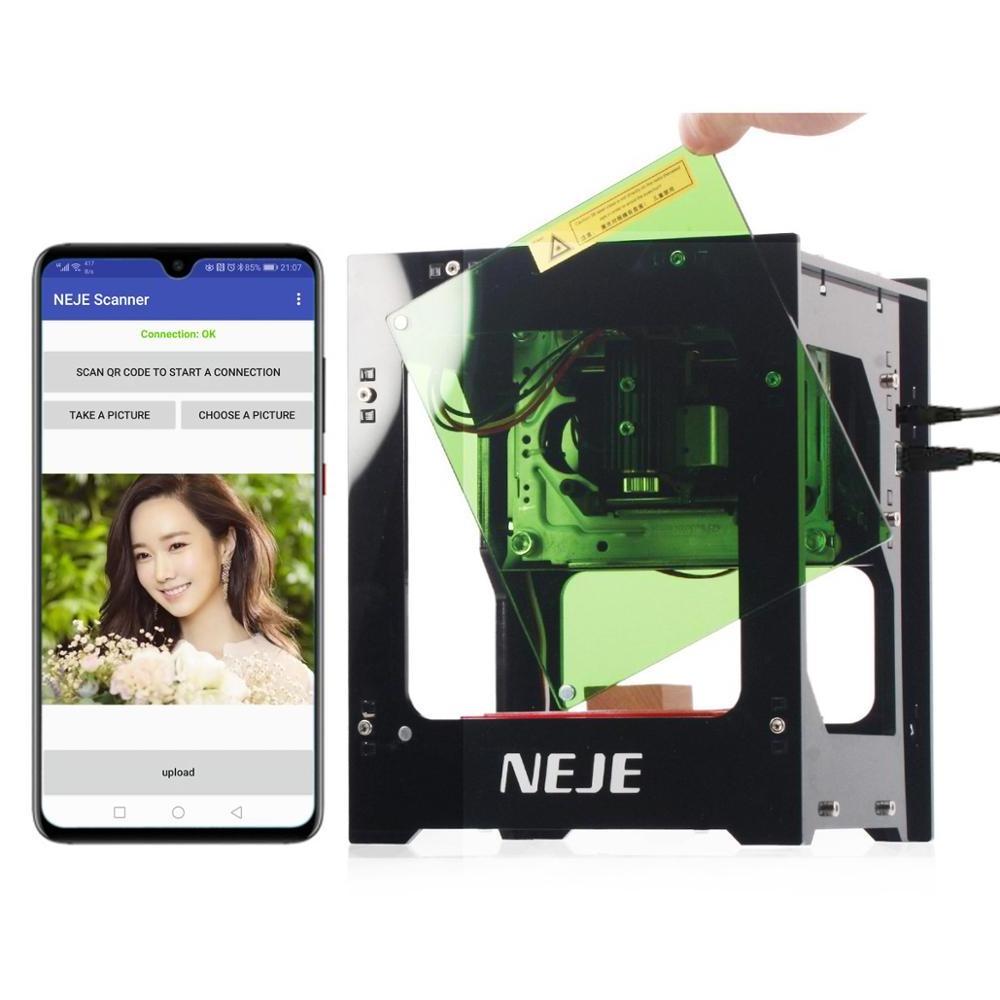

NEJE DK-8-KZ 3000mw laser engraving machine is a portable multi-function engraving machine that can engrave bmp, jpg and other formats. Customers can design their own materials or directly transfer them with the “neje scanner” Android app. Sculpture;
And only need 5V2A USB adapter or mobile power to supply power, with the laptop can be used anywhere. Things that can be engraved include mobile power, mobile phone cases, and drum sticks, as long as they can be burnt black with a lighter.
Suitable for engraving: a variety of materials such as icons and deep engraving, support bmp, jpg, png and other formats, and "NEJE CLOUD" provides thousands of engraving materials, and is constantly updated
Support "neje Scanner" app , hand-painted creation, photo scanning, intelligent algorithm automatic connection printing.
Automatic software connection , easy to use control function
Professional word processing algorithm , software can restore your design 1:1 lossless, accurate to each pixel
A variety of image algorithms that can more express the image characteristics of your family or idol
A variety of image algorithms that can more express the image characteristics of your family or idol
Support parallel engraving and offline work , control up to 10 machines with just one computer
The motherboard is compatible with a variety of power lasers , and supports 2pin mos control and 4pin TTL control with temperature sensing, which can replace the power supply equipment with higher power to achieve power expansion.
The all-metal precision mechanical drive screw structure , together with the full frame-stabilized mechanical structure, ensures that the x y axis makes the execution of the instructions more precise when moving, which is much higher than the precision of other plastic parts on the market.
Safety design , magnetic easy to remove protective panel to protect your vision, emergency stop button, certification without radiation
Safety design , magnetic easy to remove protective panel to protect your vision, emergency stop button, certification without radiation
USB5v low voltage power supply , can replace 5V4A power supply, maximum support 20W power supply, safe and portable and can be extended
Standard 445nm laser tube , high power laser, ttl control, temperature sensing, safer use, and greater engraving depth
Supporting engraving materials :mobile power, mobile phones, wallets, crafts, etc. are supported, pay attention to not carving metal
Comparison of 405nm and 445nm effects:
405nm 1000mw | 405nm 1500mw | 405nm 2000 mw | 405nm 30 00 mw | |
color | purple | purple | purple | bule |
image | good | good | good | poor |
depth | general | good | good+ | good |
precision | good | good | good | general |
speed | general | mid fast | fast | fast |
application | text,logo,image | text,logo,image | text,logo,image | text,logo, |
NOTE:
1. It can not engrave metal, acrylic and any other retardant material. white material doesn't work well.
2. The product is connect power cable to 5V2A USB power adapter to use.
3.The product is only suitable for personal diy, because of the speed of carving, it is not recommended for industrial use
4.When the machine is working, it is recommended not to look directly at the laser head, and not to operate the laser head directly by hand
5.Laser diode is a sensitive component, pay attention to prevent electrostatic damage (product includes electrostatic protection design, but there is a certain probability of damage)
Please note:
If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.
Material | Acrylic + Aluminum + Stainless Steel |
Main Color | Black |
Power | 3000mW |
Laser Wave Length | 445nm |
Image Format | bmp\ jpg \png etc.. |
Image Size | 490 * 490 pixel s / 0.075mm point distance |
Image Engraving Pattern | Bitmap Engraving |
Support System | Win7 / Win8 / XP / Win10 |
Supply Voltage | 5V2A |
Item Size | 16 * 14.5 * 19cm / 6.30 * 5.71 * 7.48in |
Item Weight | 976g / 34.43oz |
Package Size | 30 * 20.5 * 21cm / 11.81 * 8.07 * 8.27in |
Package Weight | 1641g / 57.88oz |
Items can be carved including | mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc. |
please take notice that the laser head is easily-consumed products ,so we promise to supply again within three month if the laser head is Inhuman damage.so if you laser head is Inhuman damage , please do not give negative comment thanks for your support.
