Quick Details
-
Brand Name:
-
APIE
-
Product name:
-

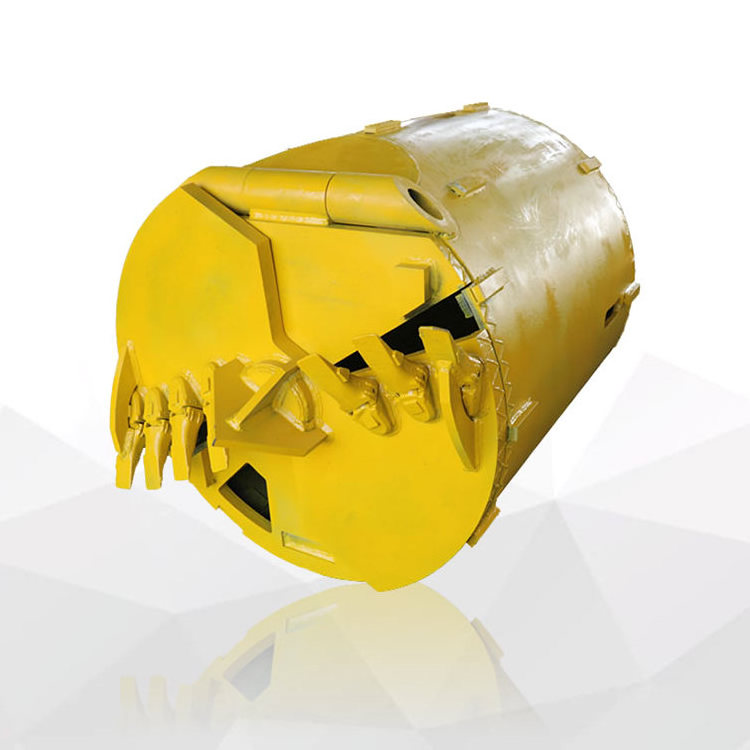

drilling bucket with soil drilling teeth
-
Teeth type:
-
Flat Teeth
-
Drilling diameter:
-
600-3000mm or as required
-
Teeth.No:
-
4-24
-
type:
-
conical or straight bucket
-
Application:
-
Silt, gravel, clay and highly weathered rock
-
Color:
-
Black,yellow or as required
-
Kelly box:
-
130*130,150*150,200*200
-
Max.weight:
-
7000kg
Quick Details
-
Weight (KG):
-
3000
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
APIE
-
Product name:
-
drilling bucket with soil drilling teeth
-
Teeth type:
-
Flat Teeth
-
Drilling diameter:
-
600-3000mm or as required
-
Teeth.No:
-
4-24
-
type:
-
conical or straight bucket
-
Application:
-
Silt, gravel, clay and highly weathered rock
-
Color:
-
Black,yellow or as required
-
Kelly box:
-
130*130,150*150,200*200
-
Max.weight:
-
7000kg
Product Paramenters
|
Name
|
Soil drilling rig bucket
|
|
Type
|
Piling drill rig tools
|
|
Teeth type
|
Soil Teeth
|
|
Drilling diameter
|
600-3000mm or as required
|
|
Color
|
Black, yellow or as required
|
|
Kelly Box
|
Sany--130, Bauer--150, Bauer--250
|
|
Application
|
Silt, gravel, clay and highly weathered rock
|
|
Bottom Type
|
Double-bottom double open
|
|
Material
|
16Mn
|
|
Usage
|
Rotary Drilling Rig
|
|
Cutting Dia.
|
Shell HIT.(A)
|
Shell OD.(B)
|
Shell THK.(C) |
Fixed Bottom THK.(D) |
Rotate Bottom THK.(E) |
Teeth No. |
Weight |
|
φ600
|
1200
|
520
|
16
|
40
|
40
|
4
|
640
|
|
φ800
|
1200
|
720
|
16
|
40
|
50
|
4
|
900
|
|
φ1000
|
1200
|
920
|
16
|
40
|
50
|
5
|
1100
|
|
φ1200
|
1200
|
1120
|
16
|
40
|
50
|
7
|
1375
|
|
φ1500
|
1200
|
1420
|
16
|
40
|
50
|
9
|
2000
|
|
φ1800
|
1000
|
1720
|
20
|
50
|
50
|
12
|
2700
|
|
φ2000
|
800
|
1920
|
20
|
50
|
50
|
14
|
3200
|
|
φ2500
|
800
|
2420
|
20
|
50
|
50
|
19
|
4800
|
|
φ3000
|
800
|
2920
|
20
|
50
|
50
|
24
|
7000
|
