CSQ Solar DC PV Isolator Switches 32A 1500V 2P 4p Disconnect Switch

CSQ Solar DC PV Isolator Switches 32A 1500V 2P 4p Disconnect Switch

FOB Reference Price: Get Latest Price

≥50 Pieces

US $16

≥200 Pieces

US $14

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CSQ

Model Number:: HYCIS-32

Max. Current:: 32A

Product name:: Solar Dc Isolator Switches 1000V 1500V 32A Disconnect Waterproof

Rated voltage:: 1500V

Type:: isolator switches dc disconnector switch for pv system

Function:: Isolating

Application:: Low Voltage

Frequency:: 50/60Hz

Warranty:: 18 Months

DC Poles:: 2,4

Maximum Fuse Specfications:: 80A

Usage:: Solar System

Quick Details

Whether the smart:: NO

Max. Voltage:: 1500V

Place of Origin:: China

Brand Name:: CSQ

Model Number:: HYCIS-32

Max. Current:: 32A

Product name:: Solar Dc Isolator Switches 1000V 1500V 32A Disconnect Waterproof

Rated voltage:: 1500V

Type:: isolator switches dc disconnector switch for pv system

Function:: Isolating

Application:: Low Voltage

Frequency:: 50/60Hz

Warranty:: 18 Months

DC Poles:: 2,4

Maximum Fuse Specfications:: 80A

Usage:: Solar System

Products Description

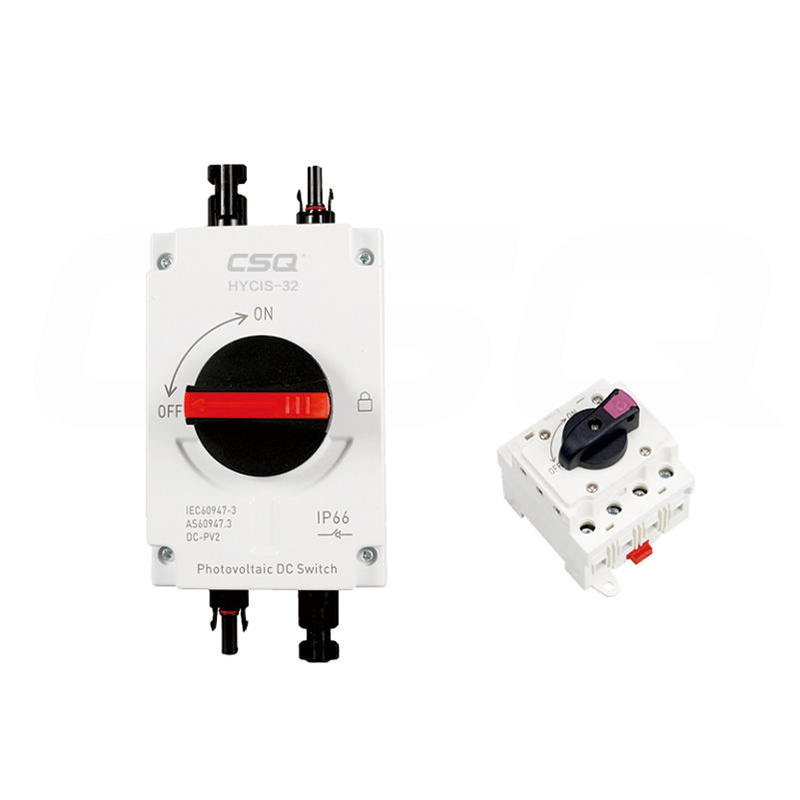

HYCIS Series Solar DC Waterproof lsolator Switch

○ Compact and suitable were space is limited ○ DIN rail mounting for easy installation ○ Load-breaking up to 8 times rated current making it ideal for motor isolation ○ Double-break with silver rivets-superior performance, reliability and long lasting ○ High breaking capacity with 12.5 mm contact air gap ○ Easy snap-on fitting of auxiliary switches

Technical Parameters					HYCIS-32
The following CNC according to IEC60947-3,the use of category DC21B
Main Parameters	Ui		1500V
Rated heating Current	Ithe		32A
Rated Impulse Withstand Voltage	Uimp		8000V
Rated Short-time Withstand Current (1s)	Icw	2,4	1000A
Rated Short-time Withstand Current (1s)	Icw			2H	1700A
Rated Short-circuit Making Capacity	Icm	2,4	1000A
Rated Short-circuit Making Capacity	Icm			2H	1700A
Rated Short-circuit Current	Icc		5000A
Maximum Fuse Specifications	gL(gG)		80A
Mechanical Life			10,000
DC poles			2 or 4
Distance Between Contacts (pole-to-pole)			8mm
