- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
12111*3500*3600
-
Weight (KG):
-
43000 kg
-
Curb weight:
-
43t
-
Rated load capacity:
-
10t
-
No. of stack:
-
9t
-
Max. hoisting speed(unloaded/loaded):
-
500/400mm/s
-
Max. descending speed(unloaded/loaded):
-
550/600mm/s
-
Max. travelling speed(unloaded/loaded):
-
22/26km/h
-
Gradeability(unloaded/loaded):
-
30/22%
-
Wheel base(L1):
-
4550mm
-
Load center(L2):
-
1220mm
-
Front wheel distance(L3):
-
1307mm
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
san
-
Dimension(L*W*H):
-
12111*3500*3600
-
Weight (KG):
-
43000 kg
-
Curb weight:
-
43t
-
Rated load capacity:
-
10t
-
No. of stack:
-
9t
-
Max. hoisting speed(unloaded/loaded):
-
500/400mm/s
-
Max. descending speed(unloaded/loaded):
-
550/600mm/s
-
Max. travelling speed(unloaded/loaded):
-
22/26km/h
-
Gradeability(unloaded/loaded):
-
30/22%
-
Wheel base(L1):
-
4550mm
-
Load center(L2):
-
1220mm
-
Front wheel distance(L3):
-
1307mm
Contact Way

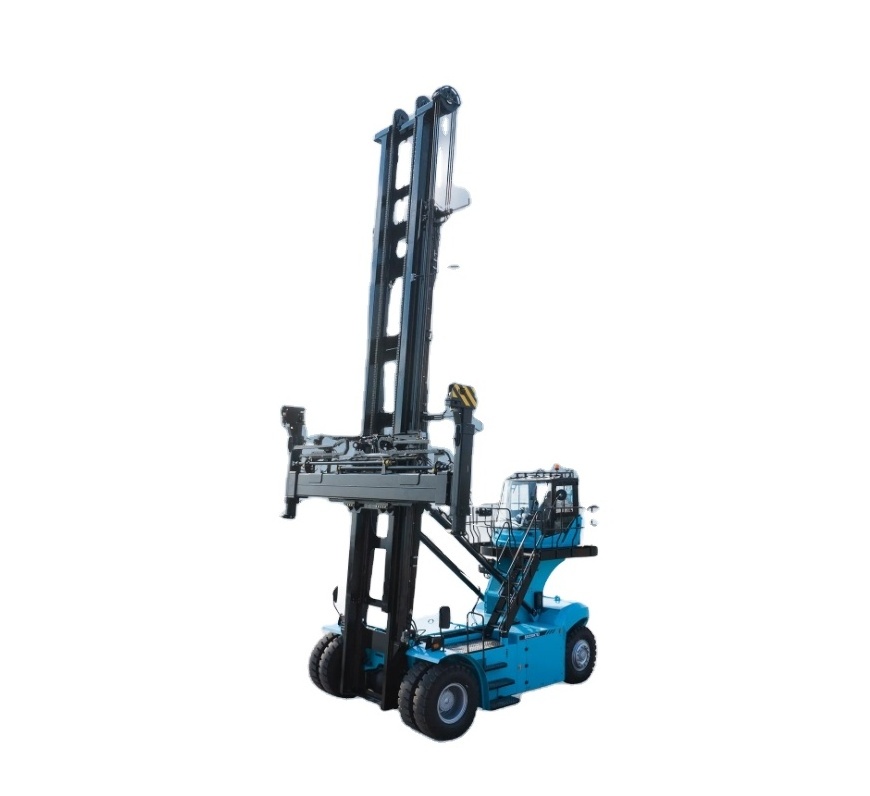

Product Paramenters
|
Model
|
SDCY100K9H1-T
|
|
Curb weight
|
43 T
|
|
Rated load capacity
|
10 T
|
|
No. of stack
|
9
|
|
Max. hoisting speed(unloaded/loaded)
|
500/400mm/s
|
|
Max. descending speed(unloaded/loaded)
|
550/600mm/s
|
|
Max. travelling speed(unloaded/loaded)
|
22/26km/h
|
|
Gradeability(unloaded/loaded)
|
30/22%
|
|
Wheel base(L1)
|
4550mm
|
|
Load center(L2)
|
1220mm
|
|
Front wheel distance(L3)
|
1307mm
|
|
Overall height(extracted/extended)
|
12300/22123mm
|
|
Min. ground clearance(H1)
|
320mm
|
|
Min ground clearance for lock(H3)
|
2351mm
|
|
Max. hoisting height for mast
|
21278mm
|
|
Front tyre distance
|
3280mm
|
|
Rear tyre distance
|
2150mm
|
|
Min. turing radius
|
6000mm
|
|
20 container aile width
|
10000mm
|
|
40 container aile width
|
14000mm
|
