Quick Details
-
Power:
-
166*2
-
Dimension(L*W*H):
-
1040*520*1100mm
-
Weight:
-
50
-
Year:
-
2024
-
Series:
-
BUW05MAE
-
Brand:
-
XMK
-
Compressor:
-
ZB38KQE
-
HP:
-
5HP
-
Max.Current:
-
6A
-
Current(A):
-
0.5A
-
Size:
-
1040*570*1100
-
Install A*B(mm:
-
550*440
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BUW05MAE
-
Voltage:
-
380V/50HZ/3Phase, 380V/50HZ or customized
-
Power:
-
166*2
-
Dimension(L*W*H):
-
1040*520*1100mm
-
Weight:
-
50
-
Year:
-
2024
-
Series:
-
BUW05MAE
-
Brand:
-
XMK
-
Compressor:
-
ZB38KQE
-
HP:
-
5HP
-
Max.Current:
-
6A
-
Current(A):
-
0.5A
-
Size:
-
1040*570*1100
-
Install A*B(mm:
-
550*440
1.This unit adopt original copland compressor Emerson
ZB series and ZSI series
scroll compressor with DTC spray to meet the application of medium temeperture and low temperture
2.With
Golden fin
enough cooling condenser made by our own Xi Maike factory.
3.Adopt L-Type condenser , with large windward side , good heat transfer effect
4.With special air outlet design,it is good for heat dissipation,lowering temperature.
5. Adopt 6-pole external rotor motor with low speed and low noise
6.Meet
R22 /R404/R507A/R448/R449A Refrigerant gas
|
Model
|
|
BUW02MAE
|
BUW03MAE
|
BUW04MAE
|
BUW05MAE
|
||||
|
|
|
BUW02MAEY
|
BUW03MAEY
|
BUW04MAEY
|
BUW05MAEY
|
||||
|
Power Supply
|
|
380/50HZ /3 Phase
|
|
|
|
||||
|
Fit Temp.(℃)
|
|
(-5~-5℃)
|
|
|
|
||||
|
Comp.
|
Model
|
ZB15KQ
|
ZB21KQ
|
ZB29KQ
|
ZB38KQ
|
||||
|
|
|
ZB15KQE
|
ZB21KQE
|
ZB29KQE
|
ZB38KQE
|
||||
|
|
Max.Current
|
6
|
8
|
11
|
13.5
|
||||
|
|
(A)
|
|
|
|
|
||||
|
Fan
|
Voltage(V)
|
380/50HZ /3 Phase
|
|
|
|
||||
|
|
Current(A)
|
0.5
|
0.5
|
1
|
1
|
||||
|
|
Power(W)
|
166
|
166
|
166x2
|
166x2
|
||||
|
|
Rev.(r/min)
|
910
|
910
|
910
|
910
|
||||
|
Suctionline(mm)
|
|
φ19
|
φ19
|
φ19
|
φ19
|
||||
|
Liquidline(mm)
|
|
φ9.5
|
φ9.5
|
φ12.7
|
φ12.7
|
||||
|
size
|
L(mm)
|
1040
|
1040
|
1040
|
1040
|
||||
|
|
W(mm)
|
570
|
570
|
570
|
570
|
||||
|
|
H(mm)
|
700
|
700
|
1100
|
1100
|
||||
|
Install A×B(mm)
|
|
550x440
|
550x440
|
550x440
|
550x440
|
||||
Customer feedback cold storage Project

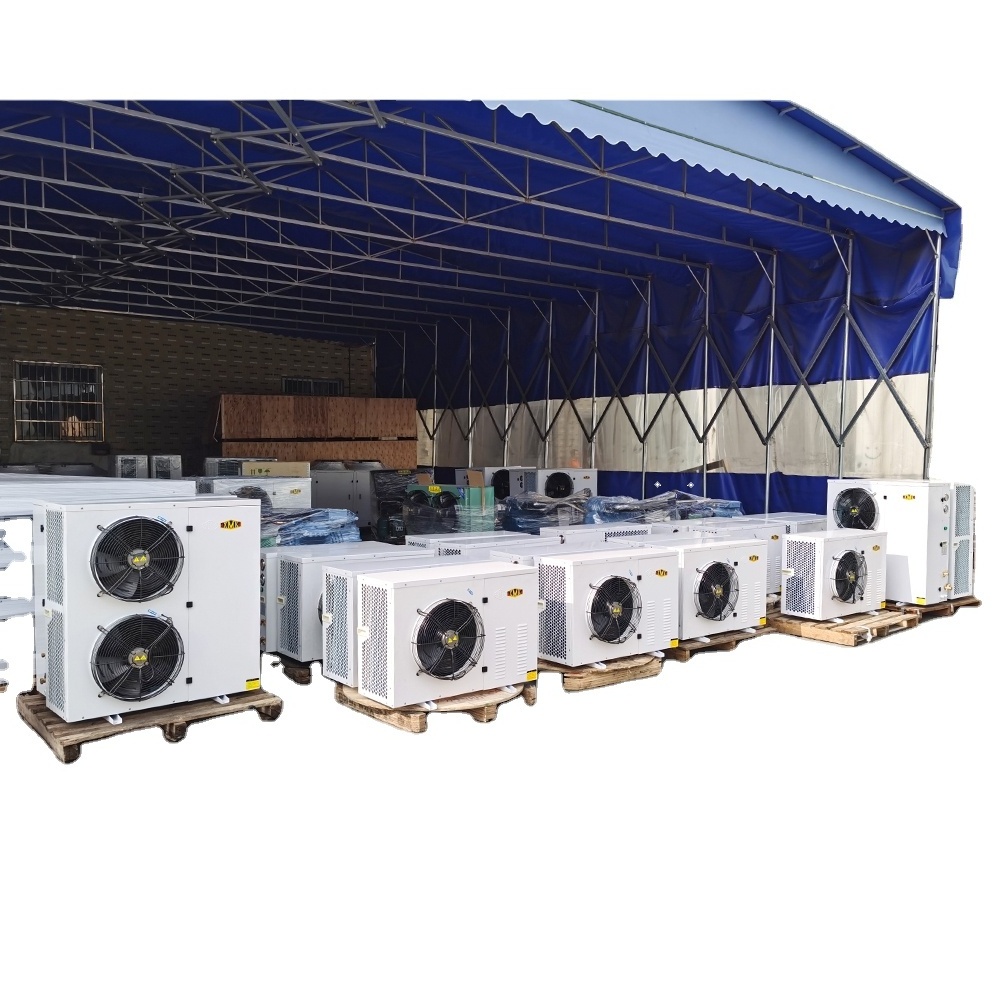

XMK Factory Workshop
XMK Product
CERTIFICATE
-----
CE 、FCC、ROSH
About XMK Factory
Guangzhou Xi Maike General Refrigeration Co,LTD. is a professional large-scale modern enterprisewith an area of 28,000 square meters factory coverage. It engages in frozen products' R&D, mass-production and sales by many automatic production lines, such as hiahly gualified condensers, air coolersevaporators, etc. Our products also have reasonable design, stable quality, EX-WORK prices and superior logistics advantages, and have been successfully applied in air-conditioning, refrigerator, cold roomcold storage, freezing, quick-freezing, medical refrigeration, etc. In addition, we' ve imported ERPmodern managing mind,and own advanced technique and strongest yearly production, and we haveall kinds of sales network, hybrid type sales service platform around the world, and have built-up partnership in more than 30 countries in the world .
Participate Exihibition country To :
Spain, Vietnam, Japan, Thailand, Indonesia, Russia, Australia, etc., Italy, the United States, etc.
