Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Singyes SYM
-
Color:
-
White
-
Name:
-
Self Adhesive Pdlc Smart film With Busbar Mounted For Window Glass
-
Certificate:
-
CCC/ISO9001/CE
-
Usage:
-
Commercial Glass Doors
-
Material:
-
PDLC
-
Power consumption:
-
5w/sqm
-
Switch on:
-
clear
-
Switch off:
-
opaque
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Singyes SYM
-
Color:
-
White
-
Name:
-
Self Adhesive Pdlc Smart film With Busbar Mounted For Window Glass
-
Certificate:
-
CCC/ISO9001/CE
-
Usage:
-
Commercial Glass Doors
-
Material:
-
PDLC
-
Power consumption:
-
5w/sqm
-
Switch on:
-
clear
-
Switch off:
-
opaque
Product Description
- OFF/Opaque, ON/Transparen
- High transparency with low haze
- Low energy consumption, 4W/SQM
- Water proof &Heat resistance
- Various of sizes for options
- Specification
| Item | Unit | Criteria | Test Method and Standard | |
| Rated Voltage | ON | V | 36 / 48 / 60 (AC50Hz) | Multimeter |
| Power Consumption | ON | w/sq.m | 1.5 / 2.5 / 4.0 | Multi - parameter Measuring Instrument |
|
Visible Light
Transmittance |
ON | % | >84 | GB/T 2680-94 |
| OFF | % | >65 | ||
|
Directional Light
Transmittance |
ON | % | >78 | GB5137.2-2002 |
| OFF | % | <3 | ||
| Haze | ON | % | <3 |
GB/T 2410-2008
Spectrophotometer |
| OFF | % | >95 | ||
| Response Time | ON | ms | <45 |
Liquid Crystal Multi -
parameter Measuring Instrument |
| OFF | ms | <200 | ||
| Viewing Angle | ON | ° | >160 | Visual Inspection |
| UV Blocking Rate | ON | % | 99 | ISO 9050-2003 |
| OFF | % | 99 | ||
| Minimum Privacy Distance | OFF | cm | 3 | Visual Inspection |
| Appearance Quality | / | Passed | GB 15763.3-2009 | |
| Size Tolerance | mm | Passed | ||
| Heat Resistance | / | Passed | GB 15763.3-2009 | |
| Humidity Resistance | / | Passed | ||
| Radiation Resistance | / | Passed | ||
| Falling-ball Impact Peel Performance | / | Passed | ||
| Shotgun Bag Impact | / | II-1 | ||
| Sound Insulation | / | >35dB | GB 18910.1-2002 | |
| Heat Insulation | / | >class 2 | GB 8484-2008 | |
| Vibration Performance | / | Passed | GB 6382.1-1995 | |
| Lifespan | ON | h | >80 thousand | GB 18910.5-2008 |
| Switching Times | Times | >2million | GB 18910.5-2008 | |
Applications
- Hotel
-
Office
-

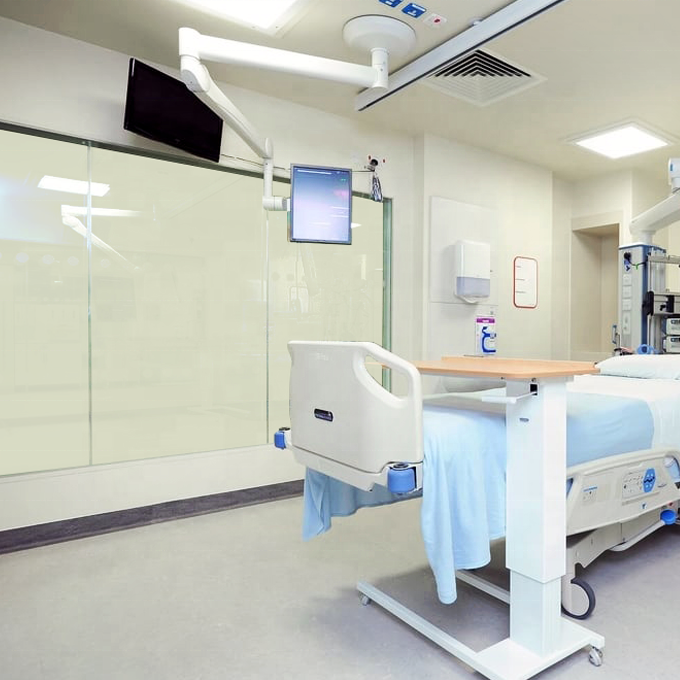

Hospital
-
Bank
- Windows
-
Skylight
- Auto
-
Projection System in the show
- Projection System in shopwindow
- Projection System in Subway
