- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1-3years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Comappower
-
Model Number:
-
COM-P165
-
Weight:
-
1700kg
-
Model:
-
COM-P165
-
Engine Brand:
-
Perkins
-
Engine Model:
-
1106A-70TG1
-
Alternator:
-
Stamford/Leroy Somer/Marathon/Mecc Alte
-
IP&Insulation Class:
-
IP22-23 & F/H
-
Controller:
-
Deepsea/SmartGen/Mebay/Datakom/Others
-
ATS System:
-
AISIKAI/YUYE/Others
-
Silent&Super silent Gen-set Sound level:
-
63-75dB(A)(at 7m side)
-
Dimension(LxWxH):
-
224x90x141cm
Quick Details
-
Rated Voltage:
-
110-480V
-
Rated Current:
-
8.3A-2160A
-
Frequency:
-
50hz/60hz
-
Warranty:
-
1-3years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Comappower
-
Model Number:
-
COM-P165
-
Weight:
-
1700kg
-
Model:
-
COM-P165
-
Engine Brand:
-
Perkins
-
Engine Model:
-
1106A-70TG1
-
Alternator:
-
Stamford/Leroy Somer/Marathon/Mecc Alte
-
IP&Insulation Class:
-
IP22-23 & F/H
-
Controller:
-
Deepsea/SmartGen/Mebay/Datakom/Others
-
ATS System:
-
AISIKAI/YUYE/Others
-
Silent&Super silent Gen-set Sound level:
-
63-75dB(A)(at 7m side)
-
Dimension(LxWxH):
-
224x90x141cm

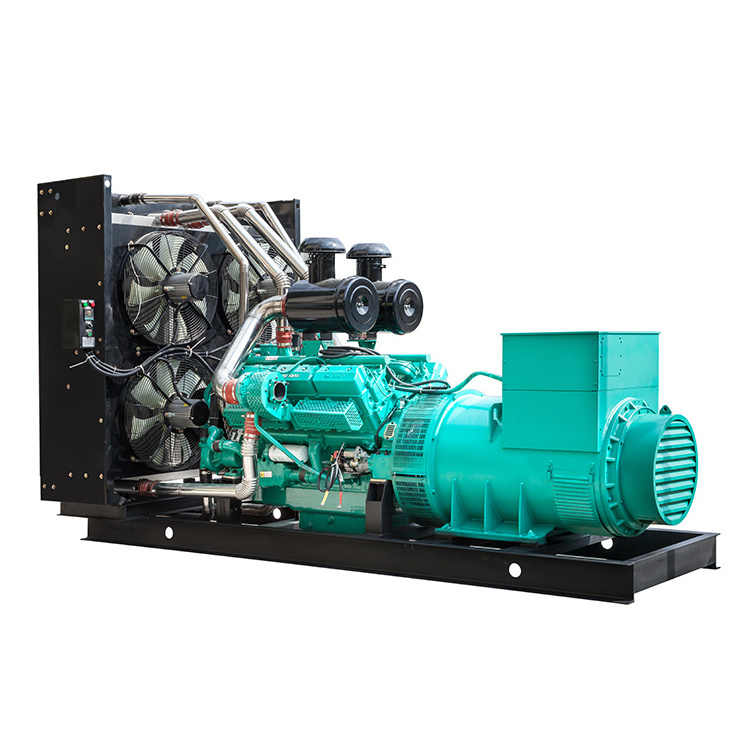

P165 50hz/60hz 1500rpm/1800rpm 120kw 150kva Generator Set With 1106A-70TG1 Engine
| COM-P165 Diesel Generator Set | |||
| Genset Model | COM-P165 | Prime Power | Standby Power |
| 120kw/150kva | 132kw/165kva | ||
| Engine | 1106A-70TG1 | Engine Prime Power | 140.5kw |
| Speed | 1500rpm/1800rpm | Fuel Cons.(100% Load) | 35.2L/h |
| Cylinder-BorexStroke | 6L-105x135mm | Displacement | 7.01L |
| Dimension | 224x90x141cm | Alternator | Brushless Self-excited |
| Frequency(HZ) | 50hz/60hz | Phase | 3 Phase |
| Voltage | 110-480V | Rated Current | 8.3A-2160A |
| Cooling Mode | Water Cooling | Oil Drive | Direct Injection |
| Noise Level | 63-75db 7meters away | Starting Mode | Electric Start |
| Brand | COMAPPOWER/Customized | IP | IP22-23 |
| Type | Silent/Open/Trailer.,etc | Insulation Class | F/H |
| Fuel Tank | Base Fuel Tank/External Fuel Tank | Filters | Air Filter,Oil Filter and Fuel Filter |
| Output Factor | COS=0.8 | Mode of Connection | 3-Phase 4-wire or Y mode |
| Contronal Systerm | Show voltage, frequency, currency, speed, hours etc, when low/over speed, Battery charger fail ; Low oil pressure; High water temperature; Starting failure; Loss of speed signal; will alarming and urgent shut down .. | ||
Powered By Perkins Engine Series
- Power coverage from 10KVA-1875KVA
- Model:Open type / Silent / Super silent type
- Engine: Perkins
- Speed: 1500/1800rpm
- Alternator:Stamford / Leroy Somer / Marathon / Mecc Alte
- IP & Insulation Class: OP22-23 & F/H
- Frequency: 50/60Hz
- Controller: Deepsea/SmartGen/Mebay/DATAKOM/Others
- ATS System:AISIKAI/YUYE/Others
- Silent&Super Silent Gen-set Sound Level:63-75dB(A)(at 7m side)
