Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
China
-
Brand Name:
-
YOSOON
-
Weight (KG):
-
150 KG
-
Application:
-
Metal Surface Cleaning
-
Laser Power:
-
1kw/1.5kw/2kw
-
Material:
-
Metal
-
Product name:
-

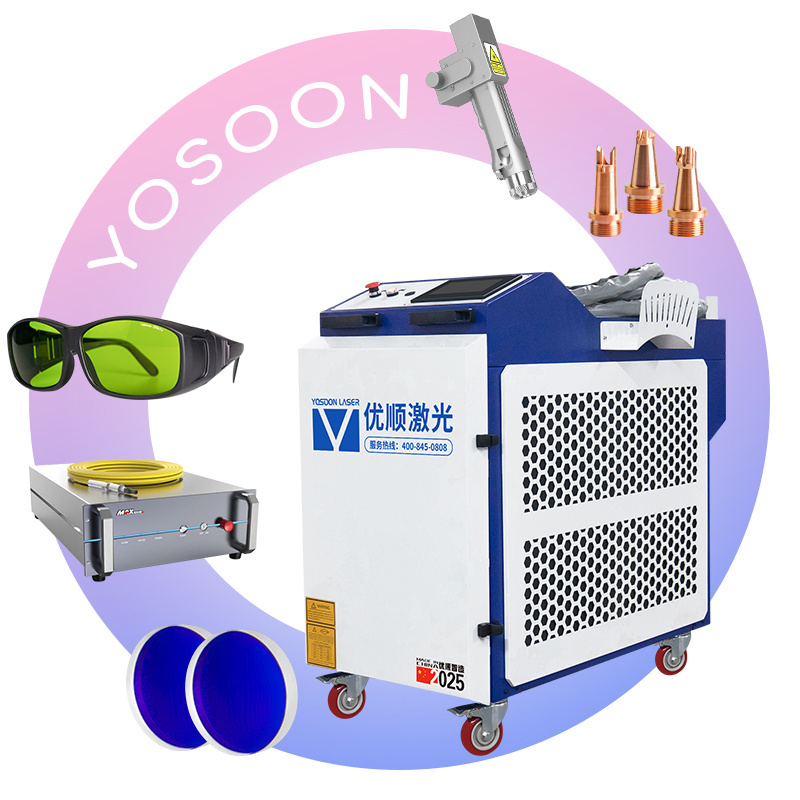

Fiber Laser Cleaning Machine
-
Keywords:
-
Fiber Laser Rust Cleaning Machine
-
Laser source:
-
Raycus IPG MAX JPT
-
Cleaning materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Welding Machine )
-
Advantage:
-
Eeasy Operate
Quick Details
-
Power:
-
1500W, 1000W, 2000w
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
MAX
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
China
-
Brand Name:
-
YOSOON
-
Weight (KG):
-
150 KG
-
Application:
-
Metal Surface Cleaning
-
Laser Power:
-
1kw/1.5kw/2kw
-
Material:
-
Metal
-
Product name:
-
Fiber Laser Cleaning Machine
-
Keywords:
-
Fiber Laser Rust Cleaning Machine
-
Laser source:
-
Raycus IPG MAX JPT
-
Cleaning materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Welding Machine )
-
Advantage:
-
Eeasy Operate
Product Overview
|
Cleaning Capacity
|
|
|
|
|||
|
Laser Power
|
1000W
|
1500W
|
2000W
|
|||
|
Cleaning Action Surface
|
|
|
|
|||
|
Floating Embroidery(20um)
|
10 m³/h
|
15 m³/h
|
20 m³/h
|
|||
|
Paint(120um)
|
4 m³/h
|
6 m³/h
|
8 m³/h
|
|||
|
Rust (100um)
|
2.5 m³/h
|
4 m³/h
|
5 m³/h
|
|||
• Handheld laser cleaning head
The hand-held part is simple and light in structure, conforms to ergonomic design, light and easy to use, does not require professionals, can work with simple training, and can be used for long-term operations.
• High power quartz lens
Select high-power quartz lens, field lens with high light rate and large depth of focus, and increase internal waterway design to meet the long-term operation of high-power laser cleaning.
• No damage to materials
Very sensitive material surfaces such as aluminium, carbon, stainless steel, carbon fiber reinforced polymers or coated materials can be cleaned without damaging the material.
Cleaning scheme comparison
Product Specification
|
Product Name
|
|
|
|
||||
|
Type
|
YSC-1000
|
YSC-1500
|
YSC-2000
|
YSC-3000
|
|||
|
Laser Power
|
1000W
|
1500W
|
2000W
|
3000W
|
|||
|
Fiber Cable
|
20M
|
|
|
|
|||
|
Wavelength
|
1070nm
|
|
|
|
|||
|
Clean Speed
|
≤20㎡/Hour
|
≤30㎡/Hour
|
≤50㎡/Hour
|
≤70㎡/Hour
|
|||
|
Beam Width
|
10-200mm
|
10-200mm
|
10-200mm
|
10-300mm
|
|||
|
Scan Speed
|
0-7000mm/s
|
|
|
|
|||
|
Cooling
|
Water Cooling
|
|
|
|
|||
|
Voltage
|
Single Phase
220/110V
50/60HZ
|
Single Phase
220/110V
50/60HZ
|
Three Phase
380/220V
50/60HZ
|
Three Phase
380/220V
50/60HZ
|
|||
Recommend Products
Company profile
Suzhou Yosoon Laser Equipment Co., Ltd.
is headquartered in
Suzhou, China,
adjacent to Shanghai, with convenient transportation.It is a high-tech enterprise with laser technology as its core. The company focuses on the R&D, manufacturing and sales of complete sets of laser processing equipment, including
laser plane cutting machines, laser professional pipe cutting machines, laser welding machines, laser cladding machines, laser 3D printers, laser marking machines, laser lenses, laser repairs, Laser equipment maintenance, upgrade, customization, etc.
Provide customers with personalized and professional laser processing system solutions.
FAQ
1. What kind of laser machine and model should I choose?
You can tell us your processing size and detail requirements, so that we can recommend the most suitable model for you.
You can tell us your processing size and detail requirements, so that we can recommend the most suitable model for you.
2. What kind of materials does the laser machine can process?
We have different laser machines, such as Fiber laser, Co2 Laser, UV Laser,Green Laser.Normally Fiber laser can process metal and plastic. Co2 laser is for processing non metallic materials, such as Acrylic, PMMA, Wood, Glass. Leather,Jeans,Paper, Textiles Garments heat transfer vinyl and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.
3. Is it easy to operate?
We will send you manual and guide vedio in English. Or we can talk by phone, email or other contact ways.
4. How will you do the after-sale service?
The machine has one year guarantee.Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
5. What is your equipment lead time?
Fiber laser cutting machine lead time is around 45 days.
Laser welding machine and laser marking machine delivery time is about 30 days.
6. How will you do the package and shipping?
All of our equipment are packed in export standard cases
Express, air shipping, sea shipping are all available.
We have different laser machines, such as Fiber laser, Co2 Laser, UV Laser,Green Laser.Normally Fiber laser can process metal and plastic. Co2 laser is for processing non metallic materials, such as Acrylic, PMMA, Wood, Glass. Leather,Jeans,Paper, Textiles Garments heat transfer vinyl and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.
3. Is it easy to operate?
We will send you manual and guide vedio in English. Or we can talk by phone, email or other contact ways.
4. How will you do the after-sale service?
The machine has one year guarantee.Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
5. What is your equipment lead time?
Fiber laser cutting machine lead time is around 45 days.
Laser welding machine and laser marking machine delivery time is about 30 days.
6. How will you do the package and shipping?
All of our equipment are packed in export standard cases
Express, air shipping, sea shipping are all available.
7. What is the payment terms?
T/T, or part of L/C at sight for some special regions.
T/T, or part of L/C at sight for some special regions.
