Quick Details
-
Application:
-
DIY
-
Cross Reference:
-
-
-
Panel material:
-
PC sand surface
-
Adhesive paper on the back:
-
white glue
-
Key strength:
-
280g
-
Temperature:
-
-15°C/+65°C
-
Circuit material:
-
0.125mm PET fully transparent
-
Button package type:
-
button plane
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EC-Buying
-
Model Number:
-
67780 67779 67778 67777 67775 67772
-
Application:
-
DIY
-
Cross Reference:
-
-
-
Panel material:
-
PC sand surface
-
Adhesive paper on the back:
-
white glue
-
Key strength:
-
280g
-
Temperature:
-
-15°C/+65°C
-
Circuit material:
-
0.125mm PET fully transparent
-
Button package type:
-
button plane
Product Description
Specification
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
EC-Buying
|
|
Type
|
Membrane Switch
|
|
Application
|
DIY
|
|
Keypad Button Material
|
Rubber
|
|
Panel material
|
PC sand surface
|
|
Adhesive paper on the back
|
white glue
|
|
Key strength
|
280g
|
|
Temperature
|
-15°C/+65°C
|
|
Circuit material
|
0.125mm PET fully transparent
|
|
Button package type
|
button plane
|

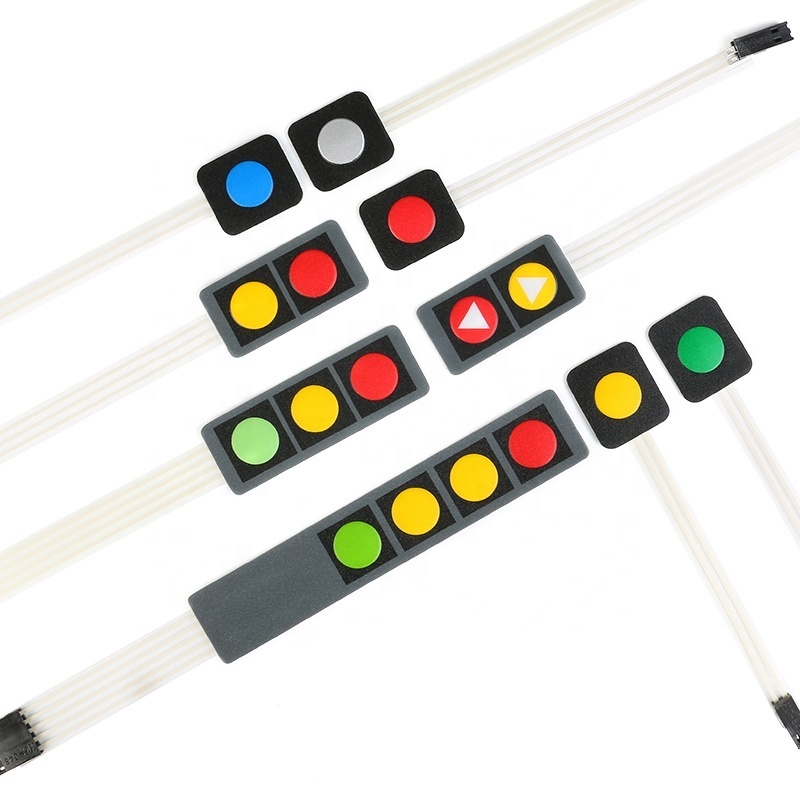

Single key membrane switch
Product parameters
Dimensions: 20.00mmX23.00mm(+0.1mm)
Product thickness: 1.00mm(+0.02mm)
Panel material: PC sand surface
Adhesive paper on the back: white glue
Key strength: 280g
Temperature: - 15℃/+65℃
Circuit material: 0.125mm PET fully transparent
Button package type: button plane
Button package height: 0.3mm
Key life: >100,000 times
Loop resistance: <50 ohms.
Connector: 2.54mm square hole with protective cover
Double key membrane switch
Product parameters
Dimensions: 40.00mmX20.00mm(+0. 1mm)
Product thickness: 0.80mm(+0.02mm)
Panel material: PC sand surface
Adhesive paper on the back: white glue
Key strength: 280g
Temperature: -15℃/+65℃
Circuit material: 0.125mm PET fully transparent
Button package type: button plane
Button package height: 0.3mm
Key life: >100,000 times
Loop resistance: <50 ohms
Connector: 2.54mm square hole with protective cover
Three key membrane switch
Product parameters
Dimensions: 57.00mmX20.00mm(+0.2mm)
Product thickness: 0.80mm(+0.02mm)
Panel material: PC sand surface
Adhesive paper on the back: white glue
Key strength: 280g
Temperature: -15℃/+65℃
Circuit material: 0.125mm PET fully transparent
Button package type: button plane
Button package height: 0.3mm
Key life: >100,000 times
Loop resistance: <50 ohms
Connector: 2.54mm square hole with protective cover
Four key membrane switch
Product parameters
Dimensions: 107.00mmX20.00mm(+0.2mm)
Product thickness: 0.80mm(+0.02mm)
Panel material: PC sand surface
Adhesive paper on the back: white glue
Key strength: 280g
Temperature: - 15℃/+65℃
Circuit material: 0.125mm PET fully transparent
Button package type: button plane
Button package height: 0.3mm
Key life: >100,000 times
Loop resistance: <50 ohms
Connector: 2.54mm square hole with protective cover
