The automation control adopts the HMI+PLC+molded case circuit breaker+AC contactor method, which can be carried out according to the needs of users.
- Product Details
- {{item.text}}
Quick Details
Quick Details
-
Core Components:
-
compressor
-
Place of Origin:
-
China
-
Weight:
-
300 KG
Whether it is in the chemical, food, metallurgical, or ice rink cold sources, medium and low temperature chillers are required. Shenzhou can provide you with the most ideal industrial medium and low temperature cold water solutions. We try to meeting your needs for energy efficiency and reliability.
|

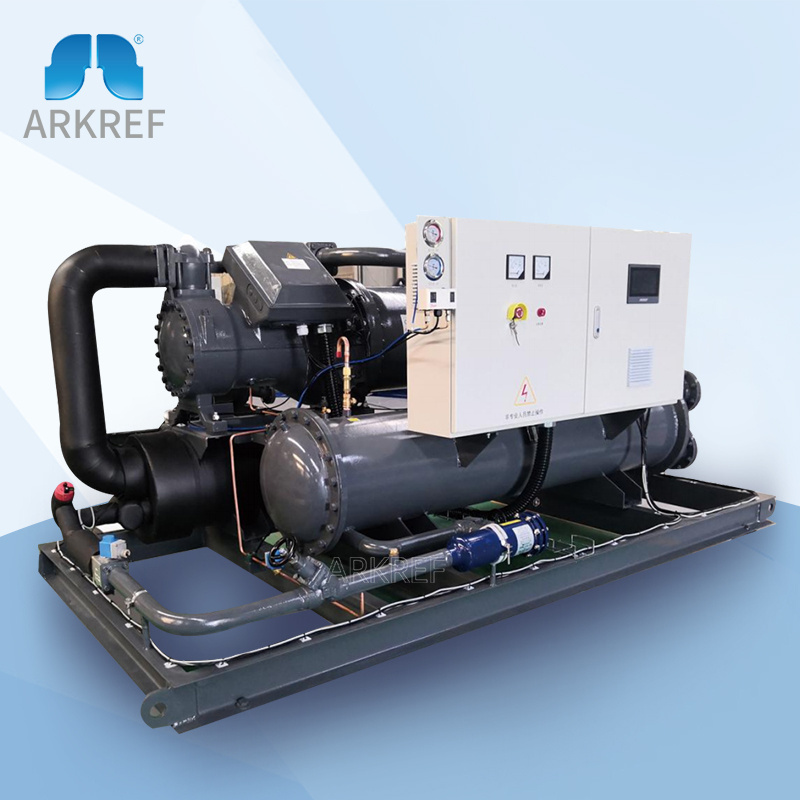

Product Name
|
Ice water unit
|
|
Model
|
SGBH
|
|
Compressor Brand
|
Bitzer semi-hermetic piston compressor / Bitzer screw compressor
|
|
The refrigerant
|
R22、R507A、R404A、R134A、R448A、R449A
|
|
Inlet water temperature (℃)
|
15~25℃
|
|
Outlet water temperature (℃)
|
2~7℃
|
|
Cooling capacity
|
Customizable
|
|
Energy regulation
|
Optional
|
|
Electric system
|
Need to provide accurate local electricity
|
|
Condenser
|
Water-cooled condenser(Standard configuration)
|
Application
Product name: Chiller
Compressor : hanbell/bitzer (optional)
Product Category :
1.Double Stage series
Inlet water temperature : -50°C~-35°C; outlet water temperature: -55°C~-40°C
2.Low temperature series
Water inlet temperature : -35°C~-10°C; outlet water temperature: -40°C~-15°C
3.High temperature series
Inlet water temperature : -15℃~12℃; outlet water temperature: -20℃~7℃
Compressor : hanbell/bitzer (optional)
Product Category :
1.Double Stage series
Inlet water temperature : -50°C~-35°C; outlet water temperature: -55°C~-40°C
2.Low temperature series
Water inlet temperature : -35°C~-10°C; outlet water temperature: -40°C~-15°C
3.High temperature series
Inlet water temperature : -15℃~12℃; outlet water temperature: -20℃~7℃
Product Detalis
1.Semi-hermetic Compressors
▪ Adopted world famous branded semi-hermetic compressors for long term reliable and efficient running;
▪ Adopted world famous branded semi-hermetic compressors for long term reliable and efficient running;
▪ Compressor runs with no stage limits to realize stageless continuous adjustment of cooling capacity in between 25%-100% power loaded and maintaining stable outputs;
▪ Option: HANBELL, BITZER
2.Automation Control System
3.Shell and Tube Evaporator & Condenser
Shell and tube condenser adopts high-precision external treaded copper design and shell and tube type evaporator adopts inner treaded copper design
Sucessful Cases
Project name:Cooling essential oil
Country：
Rwanda, Africa
Electric system：
3*380V-50Hz
Refrigerant：
R404a (inside the unit); glycol (inside the evaporator)
Ambient temperature:
20℃-25℃
Condensing unit:
dual-system low-temperature bitzer compressor screw chiller, the unit contains a
water-cooled condenser, the heat exchange is 226KW.
water-cooled condenser, the heat exchange is 226KW.
Material:
carbon steel, copper pipe.
Evaporator:
material, carbon steel,copper tube, the heat exchange is 320KW. PLC control
Other Cases
Large Comprehensive Cold Storage of POLO Industry Park in Luanda of Angola,South Africa.
Alber company in Crescent city, California
Costa frozen food company in Costa Rica.
South bend city, Washington State.
ASMARA-5000t cold store project
Bulgarian tunnel freezer project
We are able to provide satisfied service of refrigeration equipment for customers all over the world, with more than 30 years experience in Jinan city, China.
Exhibition
Certifications
FAQ
Q1: Are you a factory or a trading company?
A1: We are one of the largest refrigeration equipment manufacturers in China.
Q2: Where is your factory located?
A2: Our factory is located in Shengjing High-tech Park of Zhangqiu, Jinan city, China.
Q3: Do you guarantee safe and secure delivery of products?
A3: Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
Q4: Can the product be customized according to specifications?
A4: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
A4: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
Q5: What are the payment terms?
A5: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL
